Features of jaw crusher,mining equipment:
1. crusher crushing the ores,rocks ,pressure below 320 MP
2. hard rocks of high erosion
3. used in mining,building,chemical
4. crusher with Less machine stop time
5. Low cost
6. Long service life
7. Primary crusher, simple structure
8. Strong construction
9. High crushing ratio;
10. Easy maintenance;
11. Stable performance;
12. Even final products.

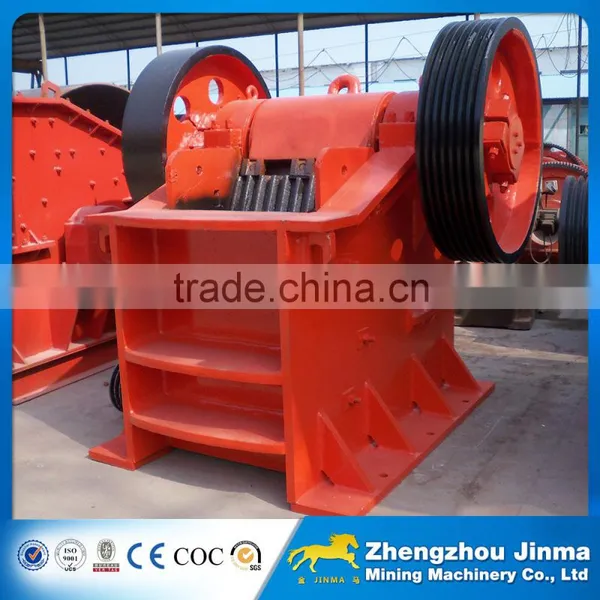

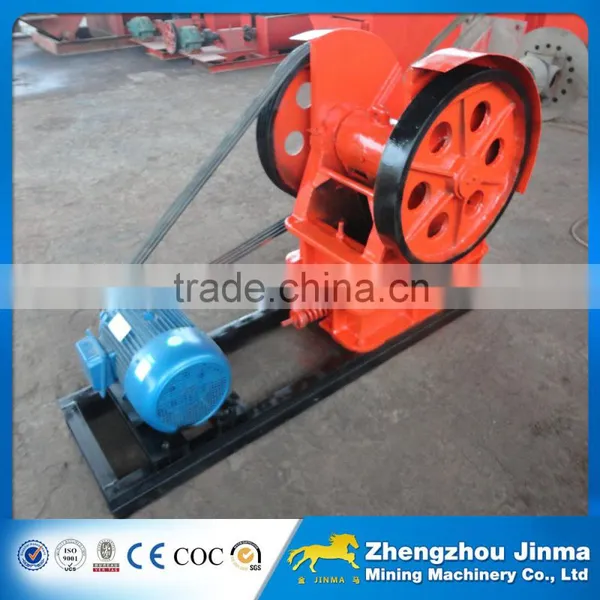

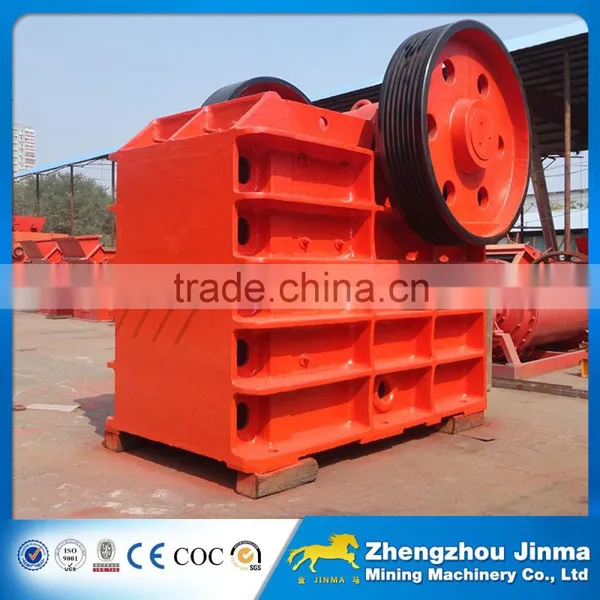

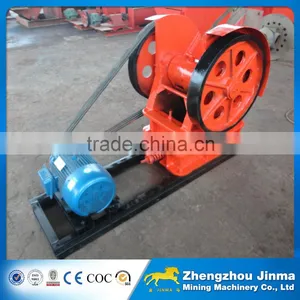

Jaw Crusher,crusher machine,mining machine,mining equipment working principle:
The jaw crusher squeezes rock between two surfaces, one of which opens and closes like a jaw. Rock enters the jaw crusher from the top. Pieces of rock that is larger than the opening at the bottom of the jaw lodge between the two metal plates of the jaw.
Characteristics of Jaw Crusher
The characteristics of jaw crusher, jaw crusher in the use of building materials and mines are frequent, mainly because it is the complete model, performance is also very stable, production is also very large, so we evaluated this product are high, jaw crusher in mining, building materials and infrastructure sectors is mainly used for crushing machine and the broken machine. According to the discharge port width size, divided into large, medium and small three, to more than 600MM width of entrance and exit for the mainframe, to the discharge port 300-600MM width for medium-sized machine, to the discharge port is smaller than the width of the 300MM the minicomputer. Jaw Crusher is partly the work of two jaw plates, one fixed jaw plate (fixed jaw), vertical (or the top of the slightly extrovert) fixed to the body before the wall, and the other is the active jaw plate (moving jaw), location tilt, with the fixed jaw plate under the formation of small, big crushing chamber (the working chamber.) Activities against the fixed jaw jaw board to do the periodic reciprocating motion, sometimes separately, sometimes close. Separately, the material into the crushing chamber, finished unloading from the bottom; close, so that jaw plate mounted between the two materials are extruded, the role of bending and splitting broken.
Crusher,mining machine technical parameters:
|
Model
|
Max feed size (mm) |
Discharge opening (mm) |
Capacity |
Power (KW) |
Mainshaft speed(r/min) |
Weight (T) |
|
PEF-150×250 |
125 |
10-40 |
1-3 |
Y2-132S-4 |
5.5 |
285 |
0.7 |
PEF-200×300 |
180 |
20-70 |
2-8 |
Y2-160M-4 |
11 |
285 |
0.8 |
PEF-250×400 |
210 |
20-80 |
4-14 |
Y2-180L-6 |
15 |
310 |
2.8 |
PEF-400×600 |
350 |
40-160 |
20-120 |
Y2-250M-8 |
30 |
300 |
6.5 |
PEF-500×750 |
425 |
50-100 |
40-110 |
Y2-280M-6 |
55 |
275 |
11.3 |
PEF-600×900 |
480 |
72-200 |
56-192 |
JR117-8 |
75 |
255 |
17.6 |
PEF-750×1060 |
630 |
80-200 |
100-250 |
JR117-8 |
90 |
250 |
29 |
PEF-900×1200 |
750 |
95-200 |
120-280 |
JR117-8 |
110 |
250 |
50 |
PEF1000×1200 |
850 |
110-260 |
180-340 |
JR117-8 |
130 |
200 |
53 |
PEF1200×1500 |
1020 |
150-300 |
300-500 |
JR117-8 |
160 |
180 |
101 |
PEX-150×750 |
120 |
8-25 |
10-40 |
Y2-180L-6 |
15 |
300 |
3.5 |
PEX-250×750 |
210 |
12-35 |
15-50 |
Y2-280S-8 |
30 |
300 |
5.5 |
PEX-250×1000 |
210 |
12-50 |
30-95 |
Y2-250M-8 |
37 |
300 |
6.5 |
PEX-250×1200 |
210 |
12-50 |
40-100 |
J2-280M-8 |
37 |
300 |
8.8 |
12-70 | |||||||
PEX-350×750 |
300 |
15-50 |
20-50 |
Y2-315M-8 |
30 |
250 |
6.5 |
PEX-300×1300 |
250 |
20-90 |
45-130 |
Y225M-6 |
75 |
250 |
11 |
Note: This specification is just for reference, any changes are subject to the products.
We take this opportunity introduce ourselves as “Zhengzhou Jinma Machinery Co.,Ltd” is a professional manufacturer of Mining machinery in china having enrich experience for more than 30 years. We provide stone crushing machine and screening, equipments for various indurstries such as mining, building materials, metallurgy, environmental protection, transportation, chemistry, energy and so on.
For further details, please feel free to contact
Tel: 86-371-67511065 Mobie:86-13523521812
