Specifications

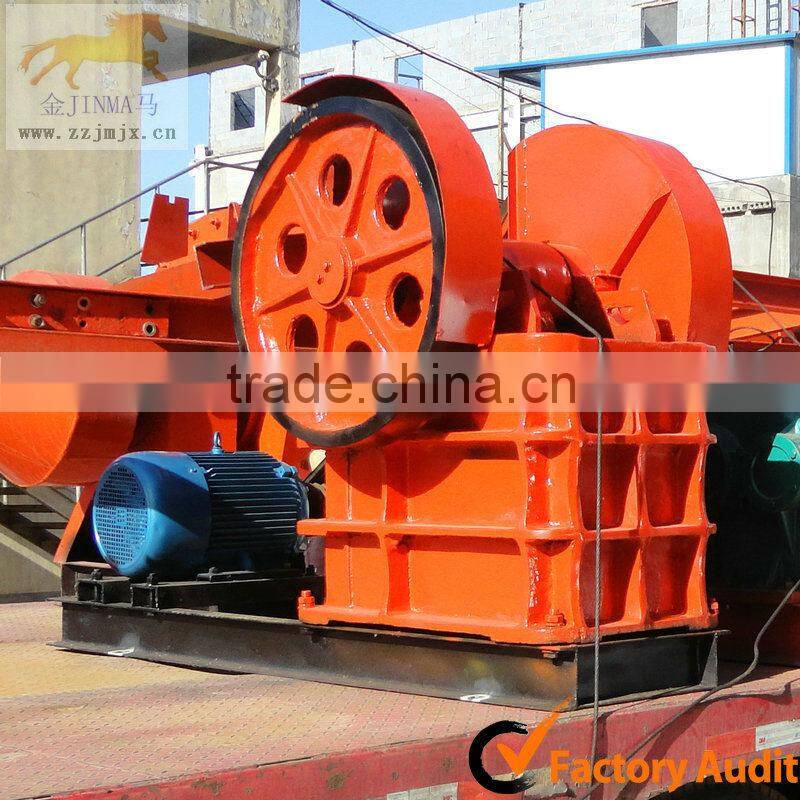

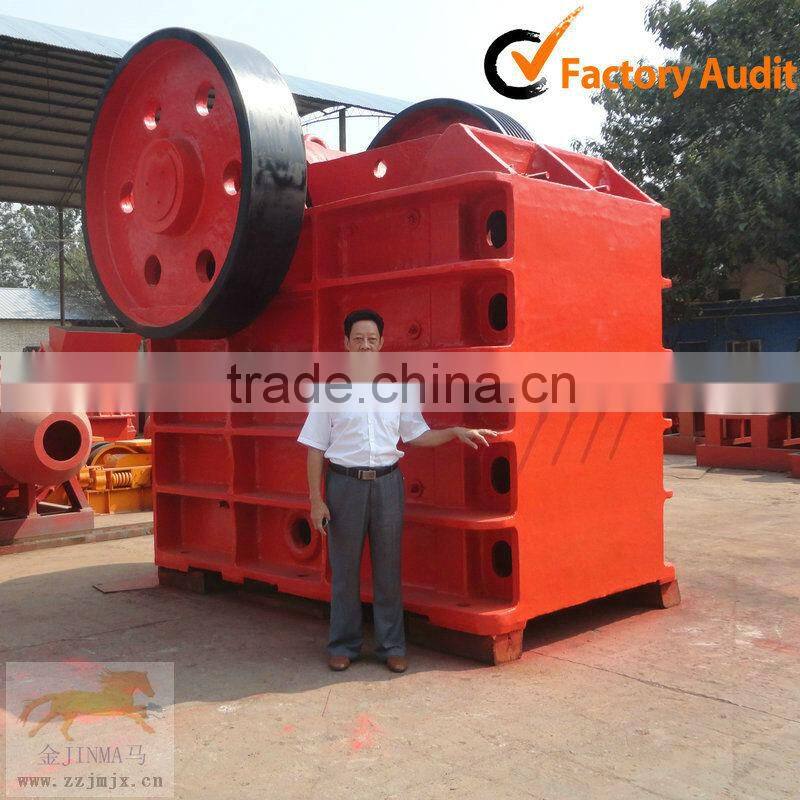

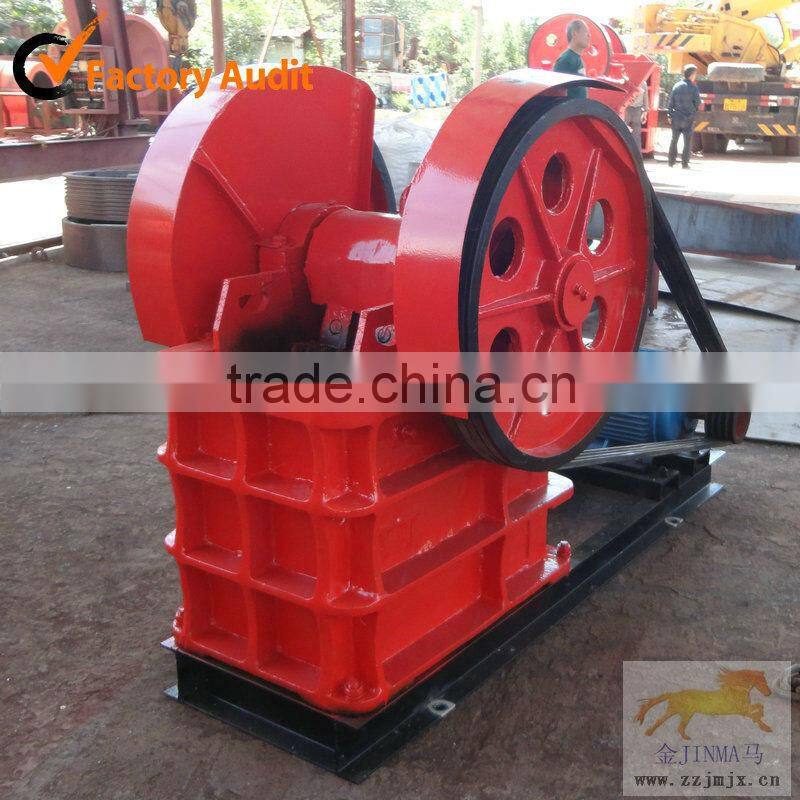

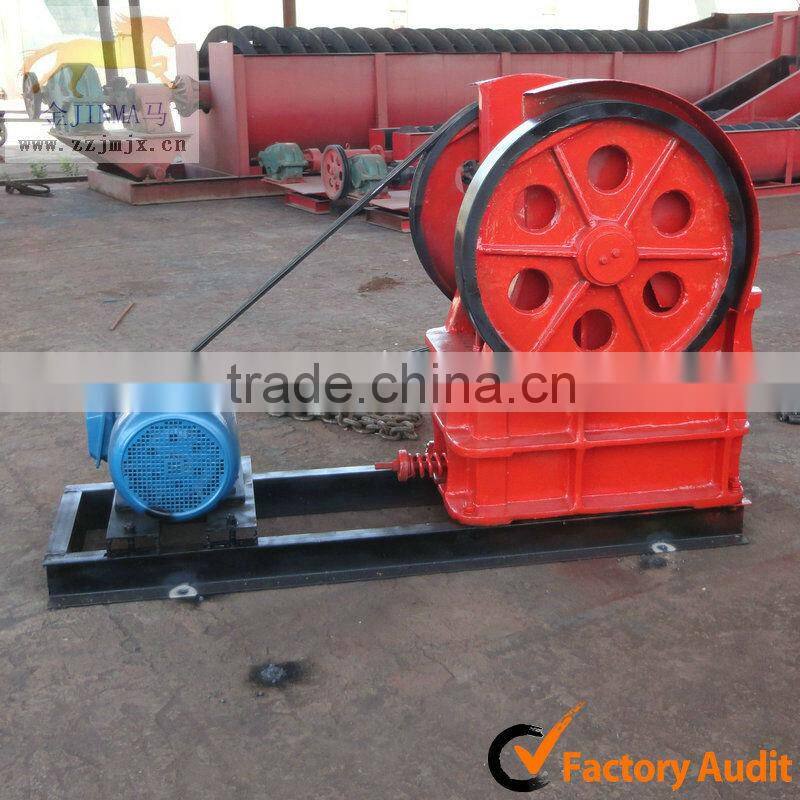

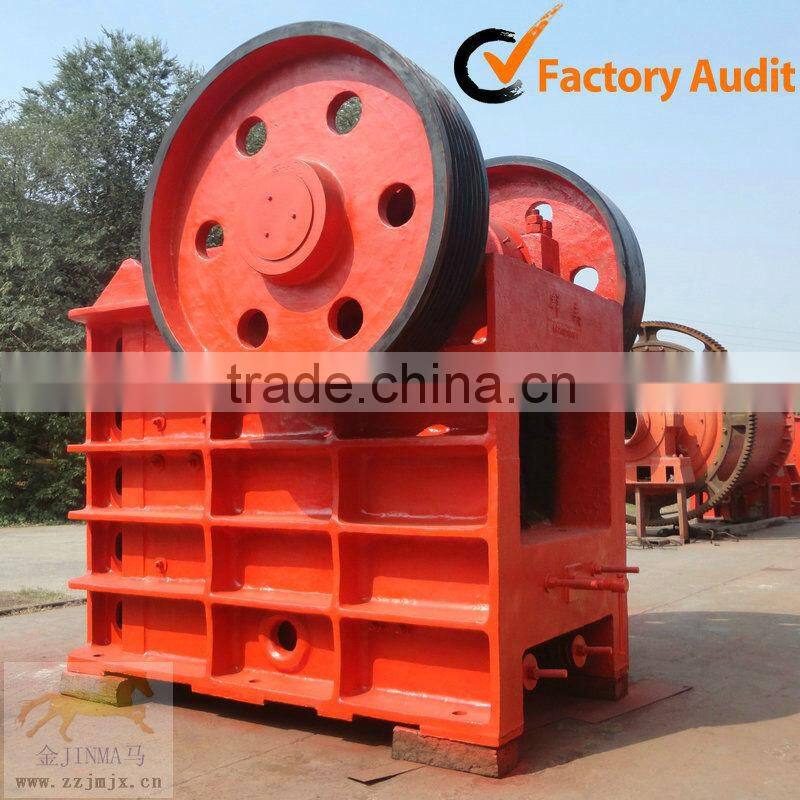

Ore Mining EquipmentMining Jaw Crusher is applied medium mining ores and block materials, Crushing resistance below320Mpa
Ore Mining Equipment
PEF jaw crusher ,which is ideal for the primary and secondary crushing, is widely used for mining ,quarry, metallurgy, building, construction, chemical industry etc. The pressure resist strength is under 320 Mpa
This jaw crusher is mainly used in various industries, such as mining, smelting, road and railway construction, water conservation and chemical industry etc. The feed size of the crusher is less than 500 mm and the compressive strength of material to be crushed does not exceed 320Mpa
Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Jaw crusher Performance characteristics:
1. Simple structure, easy maintenance, reliable performance, large crushing ratio
2. Deep crushing cavity with no dead zone, which improves the capacity
3. Large crushing ratio, even product size
4. Adjustable discharge portgasket-type, which is reliable and convenient. The big adjusting range ensures the flexibility.
Ore mining machine technical parameters:
|
Model
|
Max feed size (mm) |
Discharge opening (mm) |
Capacity |
Power (KW) |
Mainshaft speed(r/min) |
Weight (T) |
|
PEF-150×250 |
125 |
10-40 |
1-3 |
Y2-132S-4 |
5.5 |
285 |
0.7 |
PEF-200×300 |
180 |
20-70 |
2-8 |
Y2-160M-4 |
11 |
285 |
0.8 |
PEF-250×400 |
210 |
20-80 |
4-14 |
Y2-180L-6 |
15 |
310 |
2.8 |
PEF-400×600 |
350 |
40-160 |
20-120 |
Y2-250M-8 |
30 |
300 |
6.5 |
PEF-500×750 |
425 |
50-100 |
40-110 |
Y2-280M-6 |
55 |
275 |
11.3 |
PEF-600×900 |
480 |
72-200 |
56-192 |
JR117-8 |
75 |
255 |
17.6 |
PEF-750×1060 |
630 |
80-200 |
100-250 |
JR117-8 |
90 |
250 |
29 |
PEF-900×1200 |
750 |
95-200 |
120-280 |
JR117-8 |
110 |
250 |
50 |
PEF1000×1200 |
850 |
110-260 |
180-340 |
JR117-8 |
130 |
200 |
53 |
PEF1200×1500 |
1020 |
150-300 |
300-500 |
JR117-8 |
160 |
180 |
101 |
PEX-150×750 |
120 |
8-25 |
10-40 |
Y2-180L-6 |
15 |
300 |
3.5 |
PEX-250×750 |
210 |
12-35 |
15-50 |
Y2-280S-8 |
30 |
300 |
5.5 |
PEX-250×1000 |
210 |
12-50 |
30-95 |
Y2-250M-8 |
37 |
300 |
6.5 |
PEX-250×1200 |
210 |
12-50 |
40-100 |
J2-280M-8 |
37 |
300 |
8.8 |
12-70 | |||||||
PEX-350×750 |
300 |
15-50 |
20-50 |
Y2-315M-8 |
30 |
250 |
6.5 |
PEX-300×1300 |
250 |
20-90 |
45-130 |
Y225M-6 |
75 |
250 |
11 |
For further details, please feel free to contact
Tracy Xie (International Director)
Zhengzhou Jinma Mining Machinery Co., Ltd.
Tel: 86-371-67511065 Fax: 0086-371-67512579
