Specifications
Coal Crusher:-high crushing ratio
-even product granulle
-robust construction
-optimized performance.

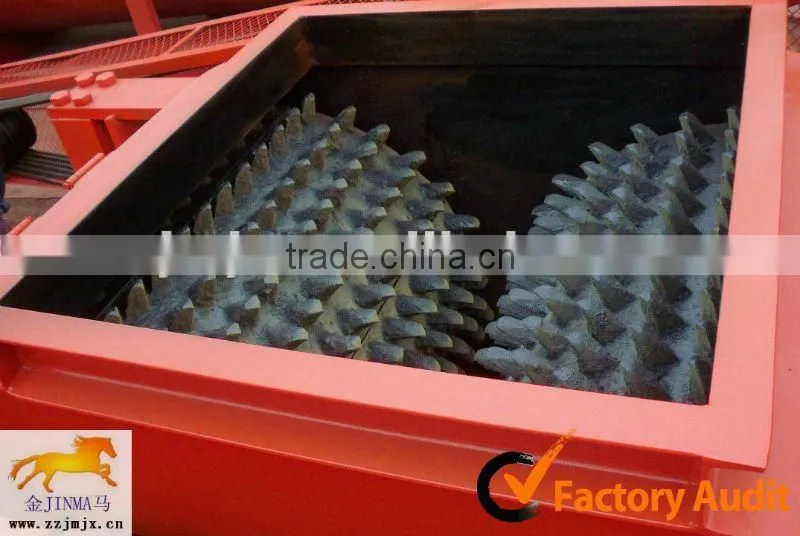

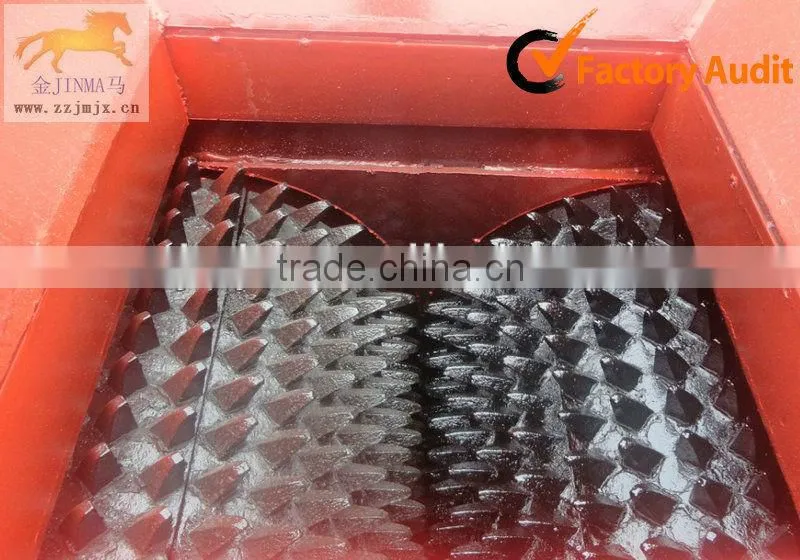

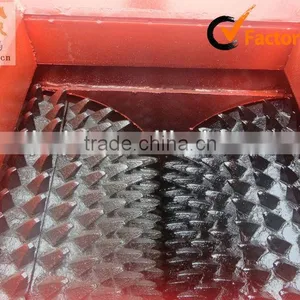

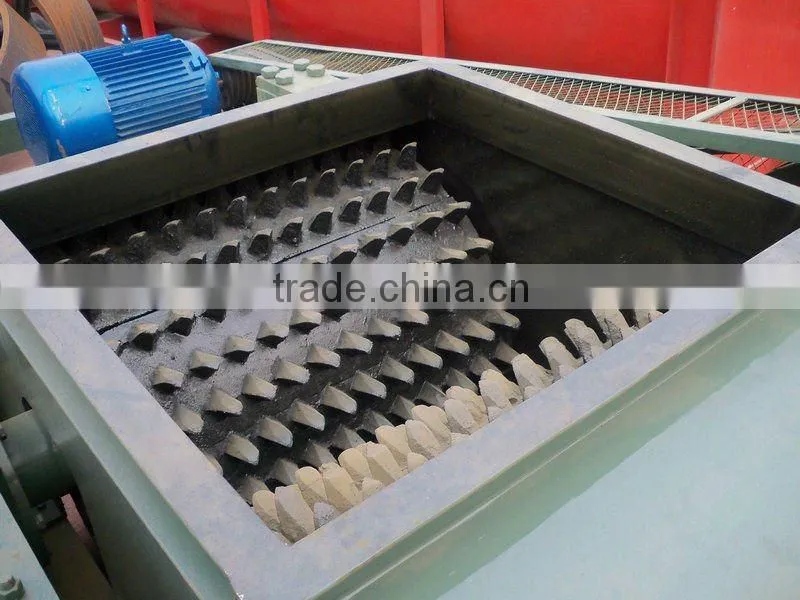

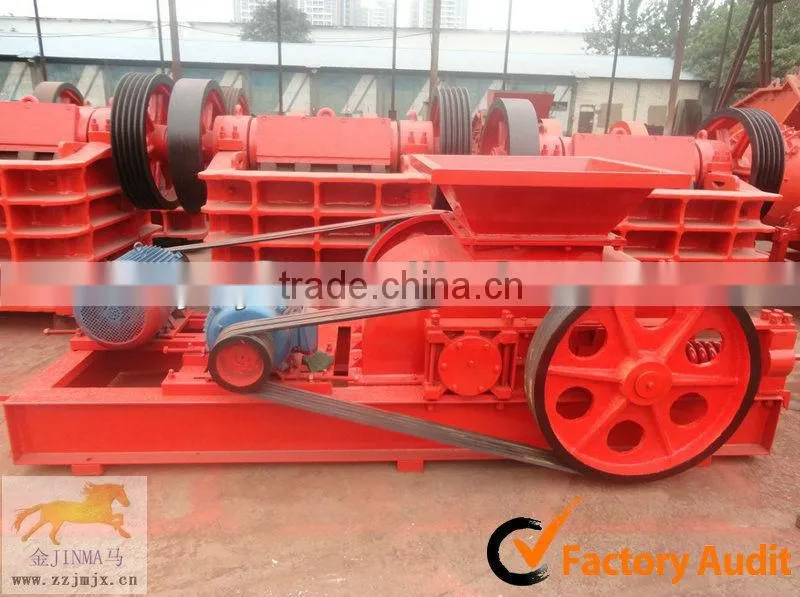

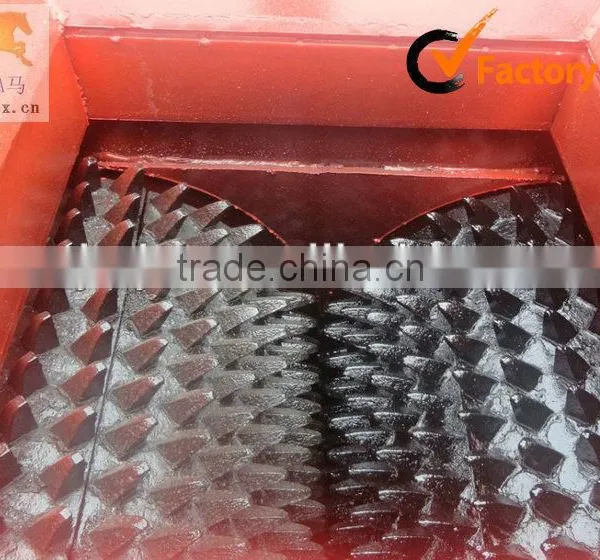

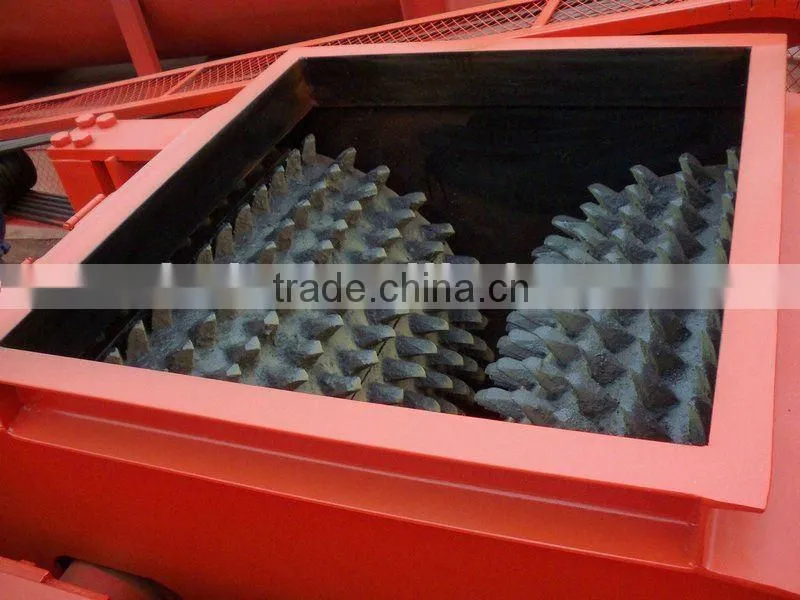

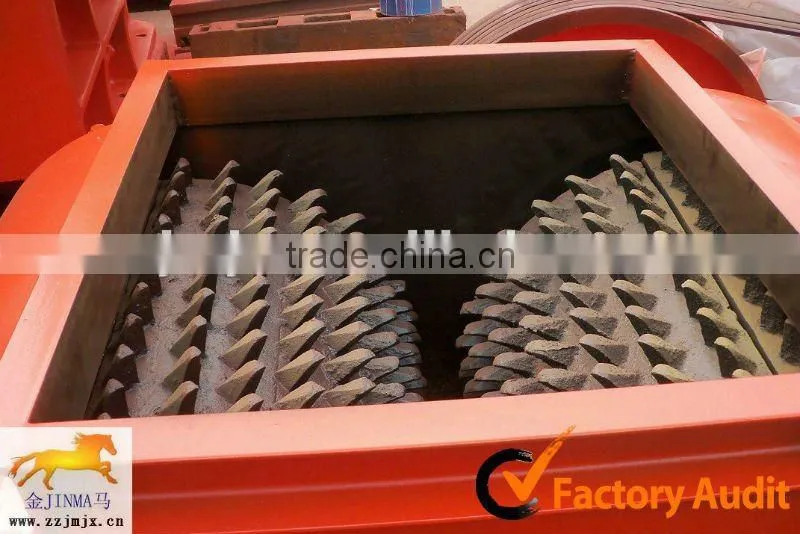

Features and Applications of Toothed Roller steel Crusher:
Roller crushers have the advantage of producing an end-product that is has a fine size distribution and they produce little dust or fines during operation. They are widely used for crushing minerals whose abrasive levels are low and in the small scale production of mine. Roll crushers are mostly used during coal mining. The crushers used may either be single roll or double roll. When used in coal mining, the surface of the rolls will have teeth or raised forms (when used for minerald and metal ores, the rolls have a smooth surface).
The roll crushers are capable of producing between 100 and 120 million bricks per year. They are widely used in the production of facing bricks, paving bricks, hollow and thermal bricks.
Roller crusher Working principle:
The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls. Some major advantages of roller crushers are they give a very fine product size distribution and they produce very little dust or fines.
Applicable material:
1) Clay
2) Shale clay
3) Coal gangue
4) River silt
5)Ceramic
Double Toothed Roller Crushers Specifications
Model |
Feed size (mm) |
Capacity(T/H) |
Power (kw) |
Weight (T) |
||||
Discharge size(mm) | ||||||||
15 |
30 |
50 |
75 |
125 |
||||
2PGC450×500 |
80-150 150-300 |
20 |
35 |
80 50 |
85 |
145 |
11×2 |
4.15 |
2PGC400×600 |
80-150 150-300 |
30 |
50 |
105 70 |
85 |
190 |
15×2 |
4.6 |
2PGC 500×750 |
80-150 150-300 |
42 |
68 |
145 85 |
120 |
255 |
22×2 |
5.7 |
2PGC600×900 |
80-150 150-300 |
58 |
80 |
180 100 |
145 |
320 |
30×2 |
7.2 |
2PGC750×750 |
80-200 200-400 |
60 |
80 |
185 90 |
140 |
205 |
37×2 |
11 |
2PGC 900×900 |
80-200 200-400 |
70 |
100 |
220 110 |
185 |
380 |
45×2 |
13.8 |
2PGC750×1500 |
80-200 200-400 |
85 |
125 |
205 110 |
180 |
250 |
45×2 |
13 |
2PGC750×1800 |
80-200 200-400 |
120 |
150 |
250 175 |
220 |
380 |
55×2 |
14.6 |
