Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > China Olivine and Leucite Crusher

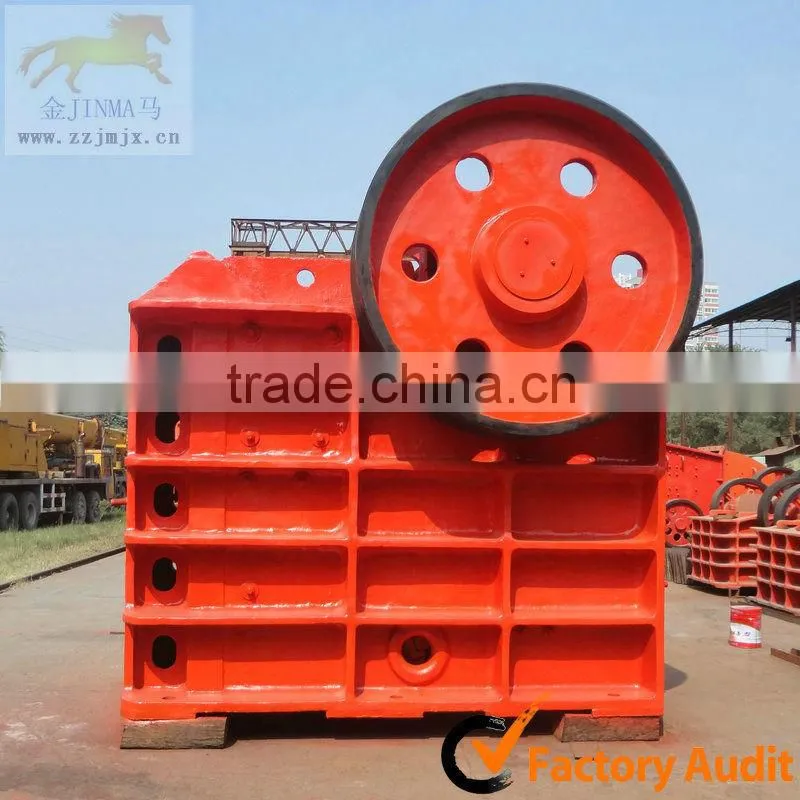

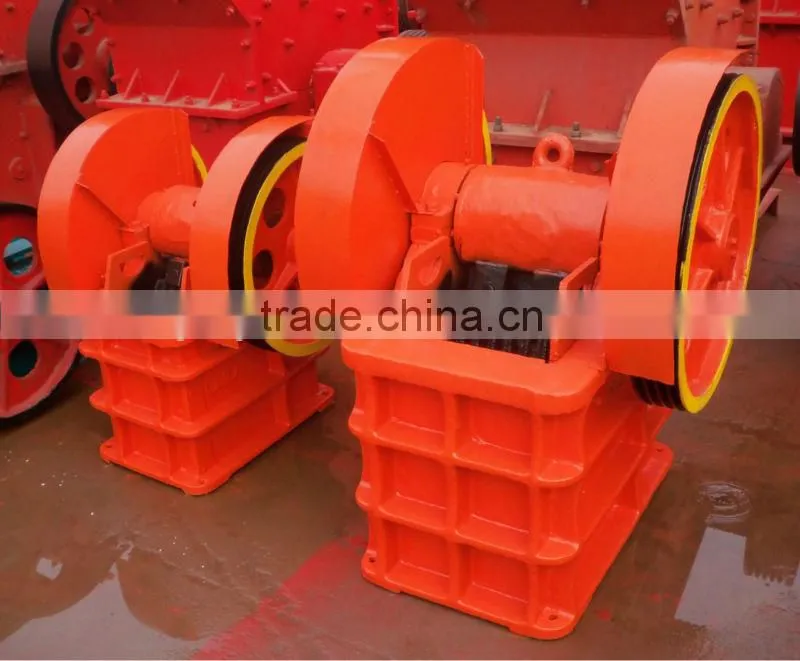

China Olivine and Leucite Crusher

Name: China Olivine and Leucite Crusher
Brand: Jinma
SKU: 104343153
Availability: InStock

China Olivine and Leucite Crusher thumbnail-1

China Olivine and Leucite Crusher photo-1

US$ 1 - 120,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Jaw Crusher, Secondary jaw crusher

Motor Type:

AC Motor

Contact Supplier Request Quote Chat Now

Zhengzhou Jinma Mining Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Jaw Crusher, Secondary jaw crusher

Motor Type AC Motor

Capacity(t/h) 1-500 TPH

Place of Origin Henan, China

Brand Name Jinma

Model Number PEX series

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Olivine crusher
35 years experience
China top 50
One year warranty

Olivine Jaw crusher working principle:

The jaw crusher squeezes rock between two surfaces, one of which opens and closes like a jaw. Rock enters the jaw crusher from the top. Pieces of rock that is larger than the opening at the bottom of the jaw lodge between the two metal plates of the jaw. The opening and closing action of the movable jaw against the fixed jaw continues to reduce the size of lodged pieces of rock until the pieces are small enough to fall through the opening at the bottom of the jaw. It has a very powerful motion.

Jaw Crusher application:

Jaw crushers are widely used for mining, smelting, building materials, road and railway construction, irrigation works, and materials with compression strength no more than 320MPa.

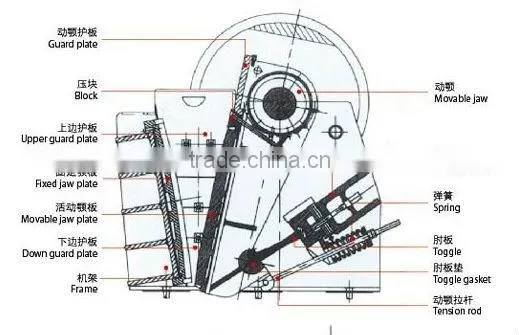

The Structure of Jaw Crusher:

Jaw crusher technical parameters:

Model	Max feed size (mm)	Discharge Size(mm)	Capacity (T/h)	Power (KW)		mainshaft Speed(r/min)	Weight (T)
PEF150×250	125	10-40	1-3	Y2-132S-4	5.5	285	0.7
PEF200×300	180	20-70	2-8	Y2-160M-4	11	285	0.8
PEF-250×400	210	20-80	4-14	Y2-180L-6	15	310	2.8
PEF-400×600	350	40-160	20-120	Y2-250M-8	30	300	6.5
PEF500×750	425	50-100	40-110	Y2-280M-6	55	275	11.3
PEF-600×900	480	72-200	56-192	JR117-8	75	255	17.6
PEF750×1060	630	80-200	100-250	JR117-8	90	250	29
PEF900×1200	750	95-200	120-280	JR117-8	110	250	50
PEF1000×1200	850	110-260	180-340	JR117-8	130	200	53
PEF1200×1500	1020	150-300	300-500	JR117-8	160	180	101
PEX-150×750	120	8-25	10-40	Y2-180L-6	15	300	3.5
PEX-250×750	210	12-35	15-50	Y2-280S-8	30	300	5.5
PEX-250×1000	210	12-50	30-95	Y2-250M-8	37	300	6.5
PEX-250×1200	210	12-50	40-100	J2-280M-8	37	300	8.8
PEX-250×1200	210	12-70	40-100	J2-280M-8	37	300	8.8
PEX-350×750	300	15-50	20-50	Y2-315M-8	30	250	6.5
PEX-300×1300	250	20-90	45-130	Y225M-6	75	250	11
