Efficient DPC Single-stage Fine Crusher

Efficient DPC Single-stage Fine Crusher photo-1

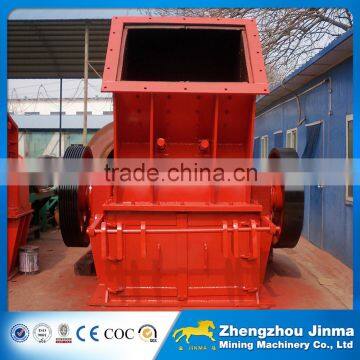

Efficient DPC Single-stage Fine Crusher photo-2
Efficient DPC Single-stage Fine Crusher photo-3

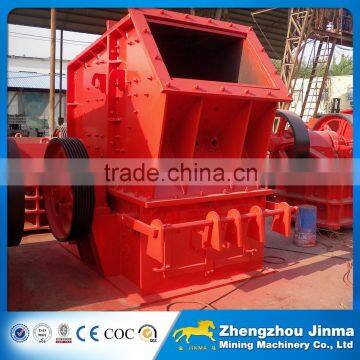

Efficient DPC Single-stage Fine Crusher photo-4

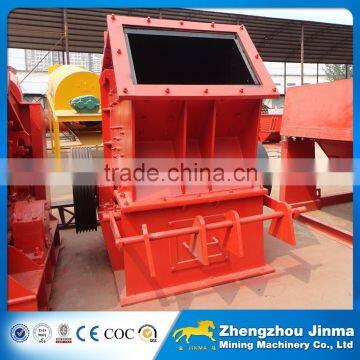

Efficient DPC Single-stage Fine Crusher photo-5

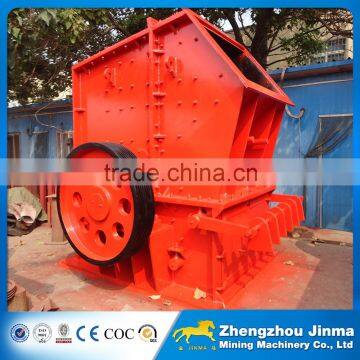

Efficient DPC Single-stage Fine Crusher photo-6
US$ 3,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, DPC series Basalt crusher, Coal Hammer Crusher
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, DPC series Basalt crusher, Coal Hammer Crusher
Motor Type AC Motor
Capacity(t/h) 15-650 T/H
Place of Origin Henan, China
Brand Name JINMA
Model Number DPC series
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Application Basalt crushing machine

Basalt crusher
Basalt crusher is applied to crush basic industrial raw materials.such as river gravel, limestone, dolomite, quartz, coal, coke, shale, gypsum.



With the advantages of high productivity, big feeding granularity, small discharging granularity, long life hammer, simple maintenance, low cost.



Basalt crusher Feature

the feeding size is 500-1100mm, and discharging size is 0-5mm. the output is 50-300t in an hour. the machine that can put coarse crushing, fine crushing and sand-making together. one step can finish the crushing operation. Big materials are feeded into the crusher chamber, and stacked on special middle bracket. Hammers run in the gap of the middle bracket, continued break the big materials when they fall. The high running hanmmers further crush the falling small materials, and finally, qualified products will be discharged from grate gap.



DPC single-stage fine crushertechnical parameter



Specification and model





Feeding size

(mm)





Dischaerging size

(mm)





Capacity

(t/h)





Power

(kw)





Theoretical

 weight

(t)

DPC-15

≤500

≤5    (80%)

15~35

22~45

11

DPC-35

≤700

≤5     (80%)

35~60

55~75

16

DPC-65

≤800

≤5     (80%)

60~90

90~132

19

DPC-90

≤900

≤5    (80%)

90~125

132~200

23

DPC-125

≤1100

≤6  (80%)

125~180

200~280

28

DPC-180

180~250

280~380

33

DPC-250

≤1300

≤6   (80%)

250~400

450~630

43

DPC-300

450~650

630~800

55

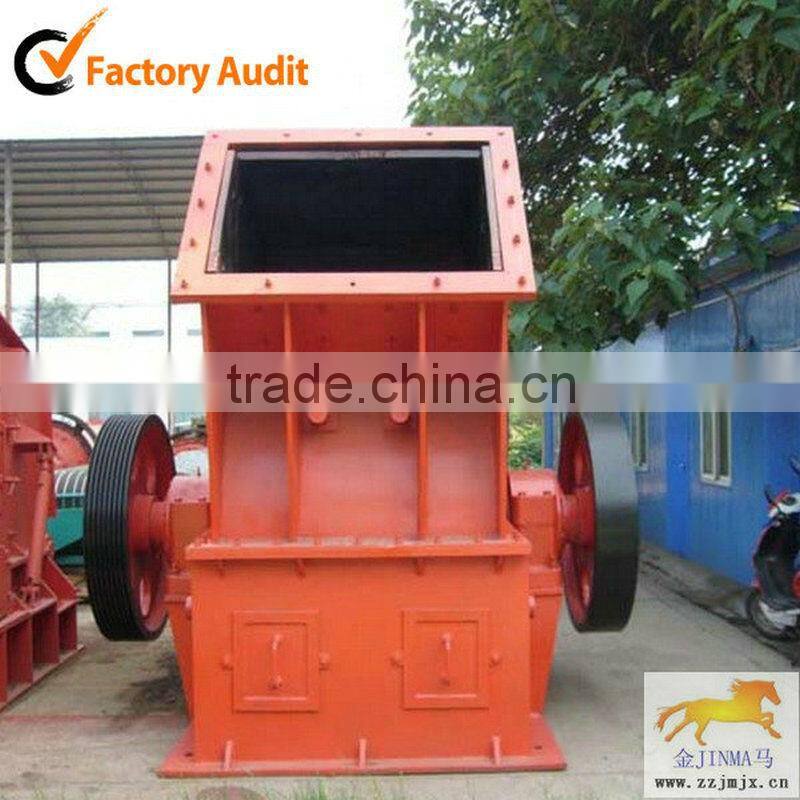

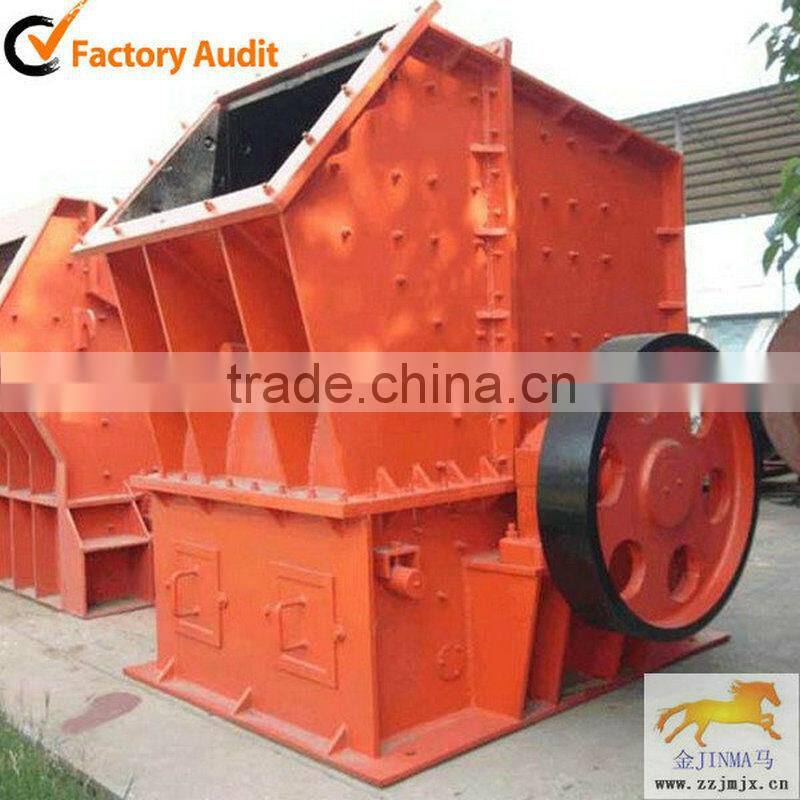

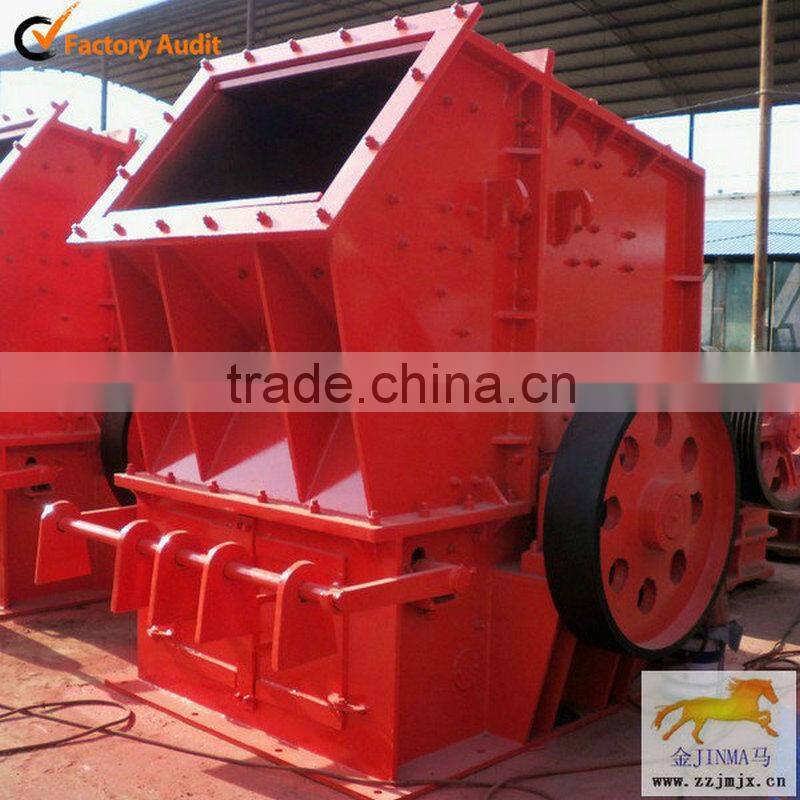

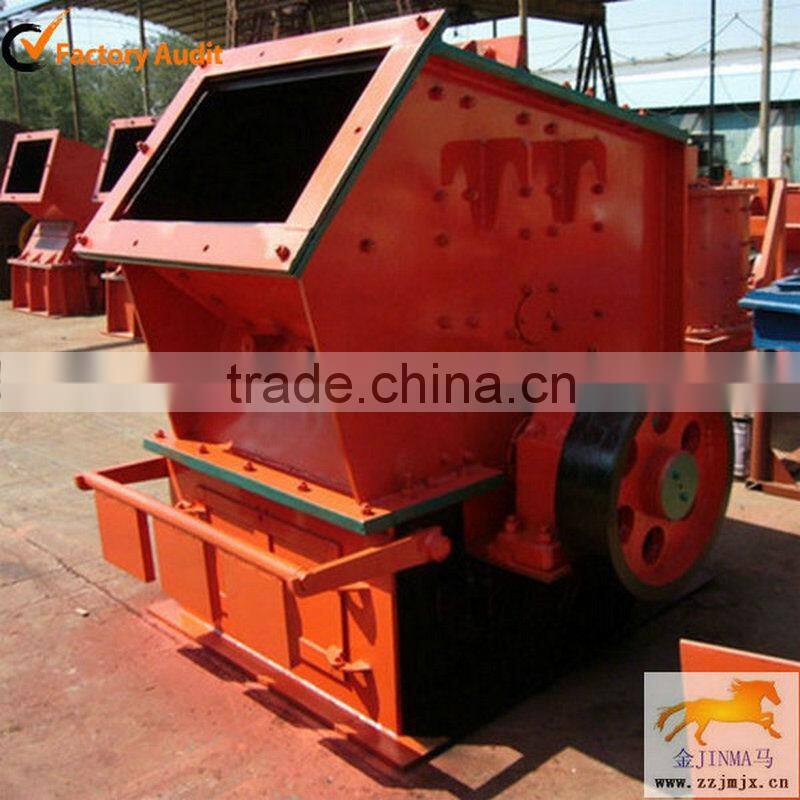

Efficient DPC single-stage fine crusherEfficient DPC single-stage fine crusherEfficient DPC single-stage fine crusherEfficient DPC single-stage fine crusherEfficient DPC single-stage fine crusher
