Help CenterMagnetic Head
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
2M
Model Number:
2M-3RLP-MN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
2M
Model Number
2M-3RLP-MN
Specifications

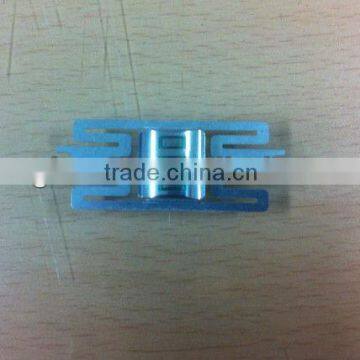

3 track card reader head
1-, 2-, 3-track read head series used in POS (point of sales), magnetic card readers/writers, credit/debit cards - 2M-1RXXXX-1 series (1-track read head series):
- Outline dimensions: 11.0mm x 8.0mm (L x W)
- Head height: 8.0mm to 9.7mm
- 2M-2RXXXX-1 series (2-track read head series):
- Outline dimensions: 11.0mm x 8.0mm (L x W)
- Head height: 8.0mm to 9.7mm
-
2M-3RXXXX-1 series (3-track read head series):
- Outline dimensions: 11.8mm x 11.0mm (L x W)
- Head height: 8.0mm to 9.7mm
Main parameters include inductance, DC resistance, gap width and more. Adjustable as follows:
- Inductance from 16 mH to 110 mH
- DC resistance from 20 ohm to 350 ohm
- Normal lifetime (500,000 times) and long-lifetime (more than 1,000,000 times) technology support(sendust).
Core: permalloy, sendust
Products ID include “s” is sendust.

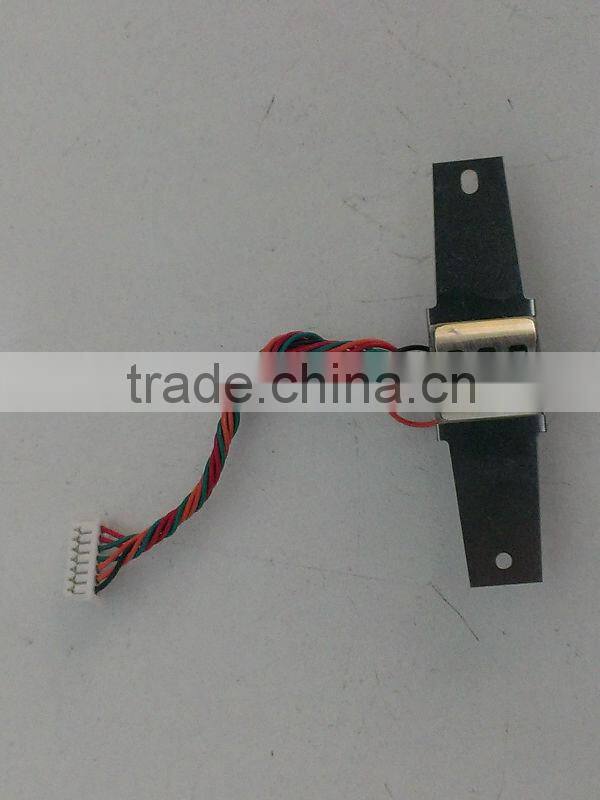

- We supply several mounting brackets for read heads.
