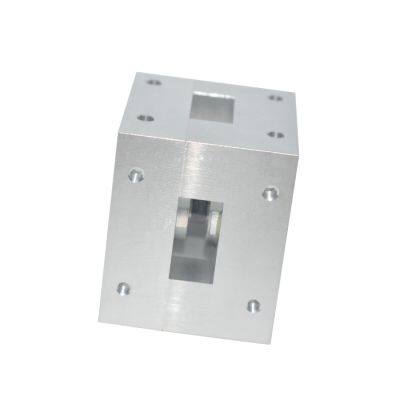

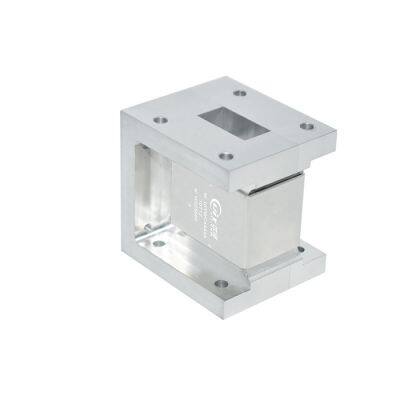

Help CenterX Band Ku Band Waveguide Circulator WR75 Circulator
Related Products
-
225 to 400MHz Full Band VHF TAB Connector Drop-in CirculatorUS$ 320 - 350MOQ: 1 Piece -
Ka Band 10W High Isolation Microstrip Circulator 32-38GHzUS$ 290 - 300MOQ: 1 Piece
-
K Band 18~26.5GHz Waveguide Circulator (WR42)US$ 830 - 850MOQ: 1 Piece
-
RF Surface Mount Circulator Module From 0.45 ~4.2 GHz (SMT)US$ 15 - 50MOQ: 1 Piece
-
8.0 to 12.0GHz Full-Band Drop-In Circulator (PCB Mount)US$ 40 - 70MOQ: 5 Pieces
10 to 15GHz – Waveguide Circulator
Design Features
1. High RF performance, ultra-competitive price.
2. Custom design available upon request.
3. Military, space and commercial applications.
4. Support one year standard warranty.
RF Characteristics
Model Number : UIYWC4444A107T1275
Freq. Range (GHz): 10.7 ~ 12.75
Insertion Loss Max(dB): 0.3
Isolation Min(dB): 23
VSWR Max: 1.2
Forward Power(W): 100
Reverse Power(W): 100
Connector Type: WR75(BJ120)
Temp.(°C): -40 ~ +85
Other Related Products：
RF Isolators
RF Circulators
Attenuator/Termination
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
TX RX Combiner/Splitter
Hybrid Combiner
Directional Coupler
Waveguide to Coaxial Adapter
Applications:
1. Radar System
2. Telecom Infrastructure
3. Microwave Radio Systems
4. Communication Systems
5. Wireless Radio Systems
6. R&D labs
7. Public Address System Radio Transmitter
8. Biomedical Instrumentation
9. 4G LTE 5G NR Mobile Communciations
If you have any customized inquiries, please contact us promptly.
