Middle Voltage Transformer Oil Purifier, Oil Recycling (for 110 KV, 220KV, 300KV Transformer)

Name: Middle Voltage Transformer Oil Purifier, Oil Recycling (for 110 KV, 220KV, 300KV Transformer)
Brand: YUNENG
Price: USD $5,000 - 58,000 / Set

FOB Price

USD $5,000 - $58,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Chongqing
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Chongqing, China	Brand Name:	YUNENG	Model Number:	ZJB-0.6, 1.2, 3, 6 KY
Type:	Oil Purifier

Product Description

Specifications

This Transformer oil purifier is necessary for treatment in mutual inductors, swithches, transformers.

Middle Voltage Transformer Oil Purifier, Oil Recycling (for 110 KV, 220KV, 300KV Transformer)

Features

1. Breakdown Voltage: ≥65KV

2. Water Content:≤5PPm

3. Gas Content: ≤0.2%

4. Precision of Filtration: ≤5μm

Item	Parameter		Type Unit	ZJB0.42KY	ZJB0.9KY	ZJB1.8KY	ZJB3KY	ZJB4.8KY	ZJB6KY	ZJB9KY	ZJB12KY			ZJB18KY
Technical Parameter	Flow Rate		L/H	420	900	1800	3000	4800	6000	9000	12000			18000
	Limit vacuity		Pa	≤20
	Working Vacuity		pa	≤400
	Working Pressure		Mpa	≤0.35
	Temperature Range		^oC	50-65
	Power Supply			50Hz 380V 3-Phase 4-Wire (or as requested)
	Total Power		KW	3.6+0.75	9+1.5	12+1.5	30+3	2x24+3.3	2x30+4	3x30+6	4x30+7		5x30+9
	Inlet/Outlet Diameter		mm	25/16	32/25	32/25	38/32	38/32	44/38	48/44	64/48		76/64
	Outer Size	Length	mm	650	1100	1100	1500	1600	1650	1850	2100		2200
		Width	mm	500	850	900	1100	1200	1150	1250	1350		1400
		Height	mm	900	1400	1400	1700	2100	2050	2150	2200		2300
	Weight		Kg	60	120	200	500	600	800	1000		1500	2500
Oil Treatment Index	Breakdown Voltage		KV	60-65
	Water Content		ppm	5-10
	Gas Content		%	≤0.25
	Filtration Accuracy		µm	≤3

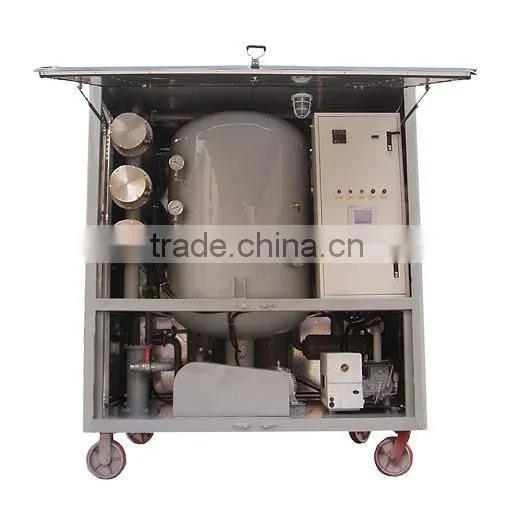

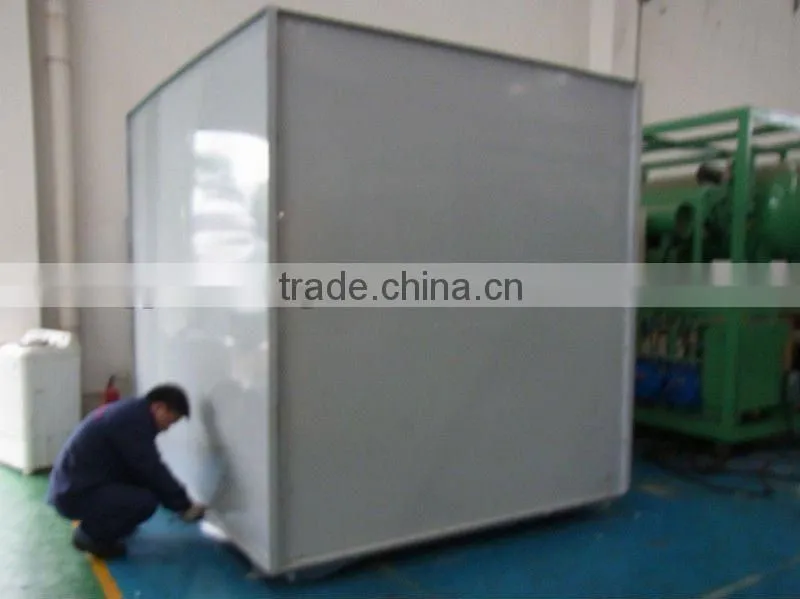

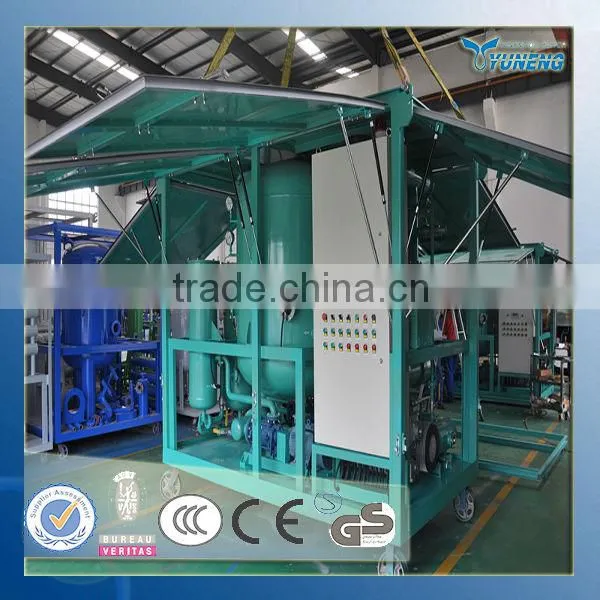

Middle Voltage Transformer Oil Purifier, Oil Recycling (for 110 KV, 220KV, 300KV Transformer) PHOTO FOR REFERENCE:

YUNENG transformer oil purifier plant

YUNENG lubricating oil filtering plant

YUNENG turbine oil recycling plant

YUNENG engine oil regeneration system

YUNENG pyrolysis oil retreatment system
