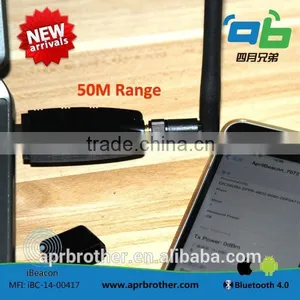

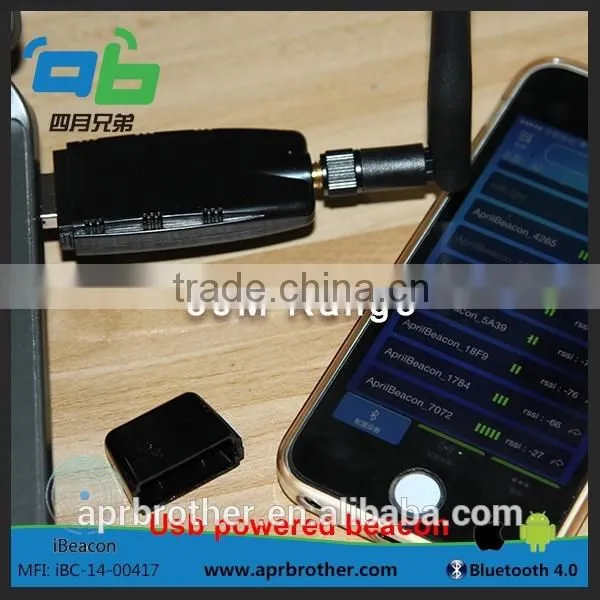

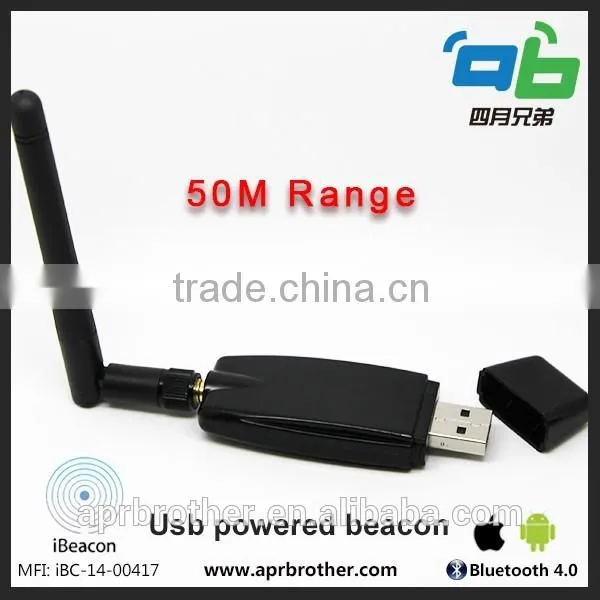

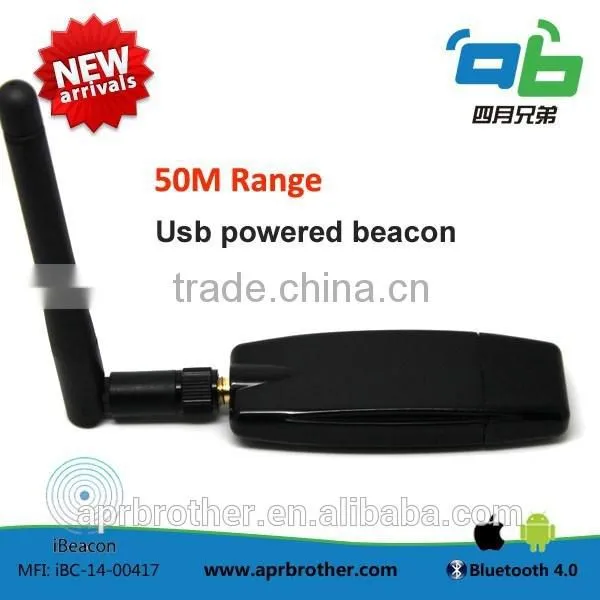

USB module iBeacon with firmware iOS/Android
Advantage:
Usb interface, external antenna, strong signal, 50M range, AprilBeacon name changeable .
April Beacon + ( API + SDK ) Platform = Complete Solution
specifications:
| Bluetooth | |
|---|---|
| Version | 4.0 (Bluetooth Low Energy) |
| Security | Secure Simple Pairing and AES-128 |
| BR/EDR connections | 0 |
| Radio | Frequency 2.402GHz to 2480GHz |
| Modulations | GFSK |
| Transmit Power | +0 dBm |
| Receiver sensitivity | -93 dBm |
| Typical line-of-sight range | 10 – 50 meters |
| Antenna | External |
| Hardware | |
| Host interfaces | USB |
| Communication Protocol | BLE |
iBeacon :
1. TI cc2540 Bluetooth Chip Solution based on HM-10 BLE bluetooth module
2. Fully Qualified Bluetooth V4.0 Ble
3. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
4. USB Interface
Default setting:
- iBeacon advertising on
- Default proximityUUID: E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
- Default major and minor: 1
- Default measured power: -59
- Default advertising interval: 100ms
How to modify iBeacon parameters :
It function as a beacon, it can be configured by cell phone Aprilbeacon App.
Packaging & Shipping
5pcs/carton
Package Measurements: 12X12X12 cm Gross Weight: 0.5 kg
you could choose the best shipping fee by youself, the shipping fee totally depends on the local charges, we dont profit any.
We provide samples for testing, we do custom beacon & housing.
SDK of IOS and Andriod provided.
We offer the tool to modify the parameters.
APP for IOS & Android both available now, search with April beacon on APP store & google play.
We provide any consultation or advice needed.
Beijing Aprilbrother Technology Co., Ltd. specializes in integrated circuit design, RF chip of internet of things and other development and selling for application system or products. With a joined force from our competent R&D Dept., hard-working workers and sales team, we have formed a professional team to provide you with a series of Bluetooth4.0 products.
Order from us and join our R&D bbs now !
1 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.
2 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.
3Q: Where can I download or air upgrade firmware or device?
A: Now we have our own APP uploaded on Google Play so you can download useful stuff there. Just search April Beacon in Google play and you'll find it.
4.Q:Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
5.Q: Do you have any other products that can be used in conjuction with the iBeacon technology?
A: We now have an sensor with temperature, 3-Axis acceleromete, Lighting. It support iBeacon technology too.
6 Q: Are the products compatible with Andriod apps too?
A: It compatible with Android 4.3 or above. The phone must support Bluetooth 4.0 Smart Ready.
workshop pics:
skype: aprilbeacon
