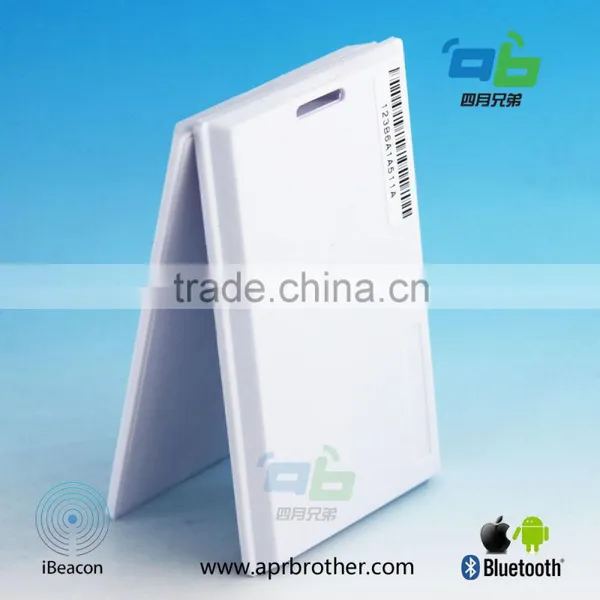

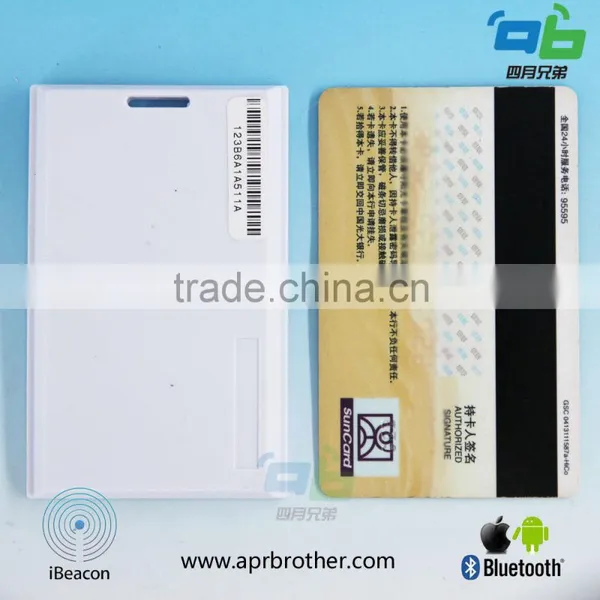

Card Beacon with iBeacon & Eddystone Tech bluetooth4.0 module
company site:
| Name | Parameters |
| Chip | Dialog DA14580 |
| Dimensions | 86mm * 54mm, Thickness 5.8mm |
| Protocol standard | Bluetooth® 4.0 Through the iBeacon certification |
| System Requirements | iOS7.0 or above/ Android 4.3 or above |
| Security | Suport password for configure parameters |
| TX Power | 0dBm |
| Transmission Range | Up to 35m |
| Broadcast Frequency (Broadcasting time interval) | Adjustable (100~1285ms) |
| Supply Voltage | 3.0V |
| Battery | CR3032 Battery |
iBeacon Descriptions:
- iBeacon Certified - All features of iBeacon supported.
- ProximityUUID/major/minor/advertising interval configuable
- Maintenance Cost and Maximum battery life
- Using Dialog DA14580 chips, in same Tx power and Advertising interval configuration, double or triple battery lifetime of Nordic nrf51822 chips. Six battery lifetime of TI CC254x chips.
- Fine tuned antenna, optimized transmit strength, covering same range using lower Tx power.
- Battery life is over 3 year on default setting.
- CR3032 coin cell battery (500mAh)
Default setting:
Name of iBeacon:EEK_card
ProximityUUID: B5B182C7-EAB1-4988-AA99-B5C1517008D9
Major and Minor: 2, 1 (Only allowed numeric)
Measured power: -59 (Numeric only)
How to modify iBeacon parameters :
you could modify the parameters (bulk) by the APP named with Aprilbeacon directly.
you could search Aprilbeacon from App store or googleplay.
Parameters: UUID/Major/Minor/output power/broadcasting frequency .
Aprilbeacon is the first company in the world to enable this function.
50sets/ Carton Package Measurements: 25X20X18 cm Gross Weight: 2kg
we will choose the prompt shipping way based on the cost & the delivery time.
We provide samples for testing, we do custom logo printing.
You could configure the iBeacon by our APP:Aprilbeacon(for IOS&Android4.3)
SDK of IOS and Andriod provided.
We provide any consultation or advice needed.
The iBeacon(s) will be dispatched Monday-Friday, same day as the order is made if purchased before 4pm,tracking number provided.
Once the iBeacon(s) has been purchased documentation will be provided .
1 Q: Do AprilBeacon support Eddystone tech?
A: Yes.
2 Q: What is the difference between using Apple SDK and April Brother’s SDK ? Is there any additional functionality on your SDK?
A:April Brother's SDK provide some function for configure the April Beacon.
For example:
proximityUUID
major
minor
etc...
Otherwise it's same with Apple SDK.
3 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.
4 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.
5 Q: Where can I download or air upgrade firmware or device?
A: we will provide you the link for it .
6.Q:Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
7.Q: Do you have any other products that can be used in conjuction with the iBeacon technology?
A: We have the Aprilbeacon401 with 3-Axis, 12-bit accelerometer, 6-bit light sensor. It support iBeacon technology too.
8 Q: Are the products compatible with Andriod apps too?
A: It compatible with Android 4.3 or above. The phone must support Bluetooth 4.0 Smart Ready.
