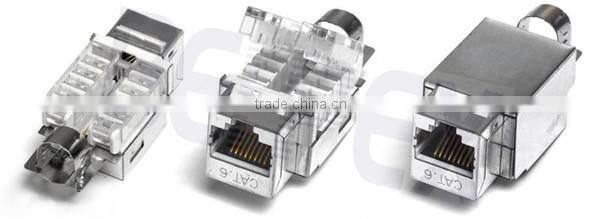

Sheilded RJ45 Keystone Jack Cat6 Keystone Jack
Description
It is designed for 22-26 AWG solid conductors
Vertical termination
Specifications
Meets TIA/EIA-568-A category 6 requirements
Meets TIA/EIA TSB-40 requirements
Meets ISO/IEC generic cabling standard 11801 requirements
Meets CENELEC generic cabling standard EN50173 requirements
Materials
Housing: ABS UL94V-0
IDC: PC UL94V-0, accepts 22-26 AWG solid wire
PCB: FR-4 1.6 mm (0.062") thick, 2 layers
Contact: 0.45 mm (0.017") in diameter, phosphor and bronze with 1.27 micron (50 microinches) gold sputtering
Structural features
Category identification on the front side of the panel
Conductor color code according to T568B and T568A
Contact color and numerical marking
Hyperline patch cord usage provides the best connection.
Electrical characteristics
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 mohm
Insulation Resistance: 500 Mohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz/1min
