19" Fiber Optic Patch Panel Shielded 24 Port Cate6A Patch Panel
Features
Meets ANSI/TIA/EIA-568-B.2 Category 6a requirements
Meets TIA/EIA TSB-40
Meets ISO/IEC Generic Cabling Standard 11801
Description
Diminished size for mounting in 10" wall mount cabinets
This patch panel is designed for 22 – 26 AWG solid conductors
Height: 1U
Materials
Housing: sheet steel 1.6 mm
Screened cover: sheet steel 1.0 mm

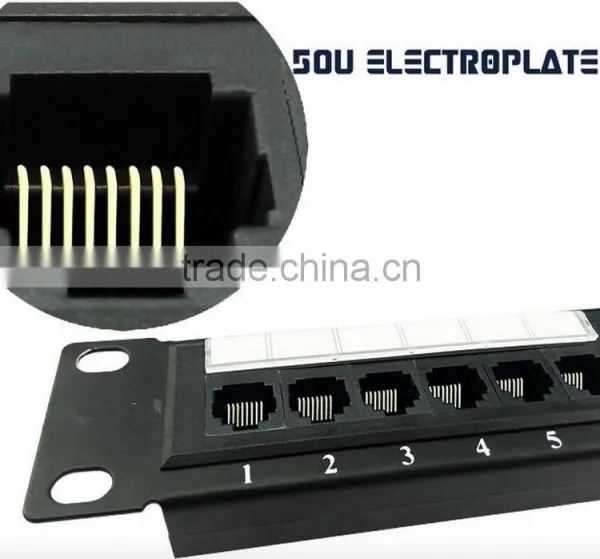

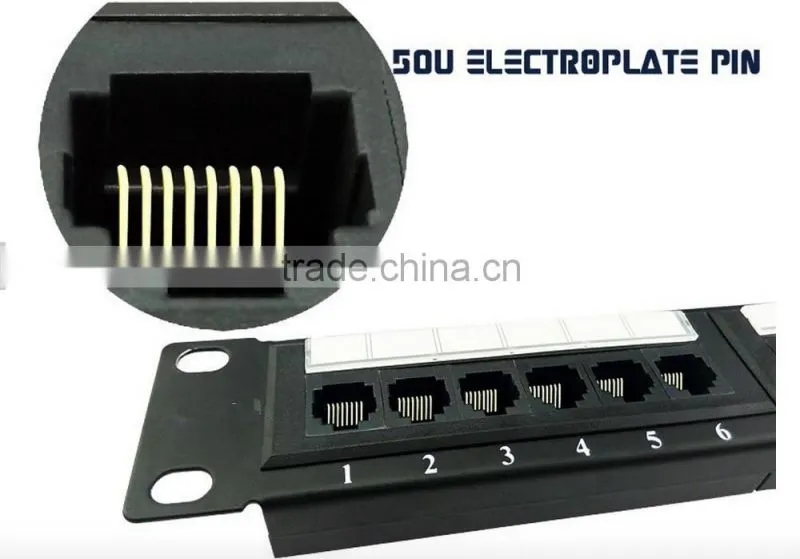

Spring contacts: phosphor bronze with gold-plated 1.27 micron (50μ “) over 2.54 micron nickel-plating
IDC-contacts: phosphor bronze with 2.54 micron plated tin alloy
Construction characterisic features
Color marking of conductors according to T568B and T568A

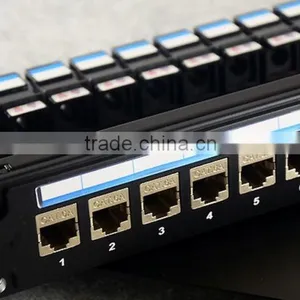

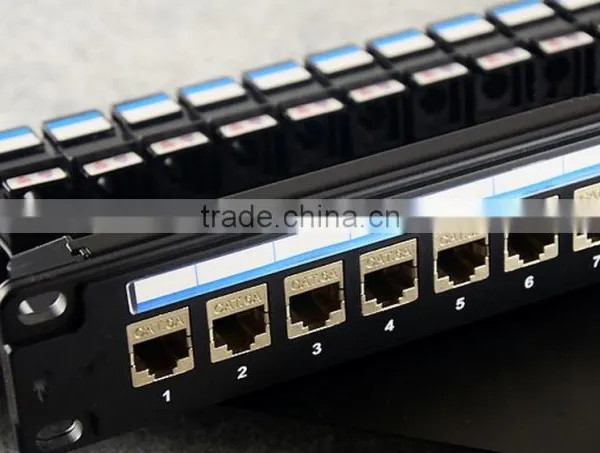

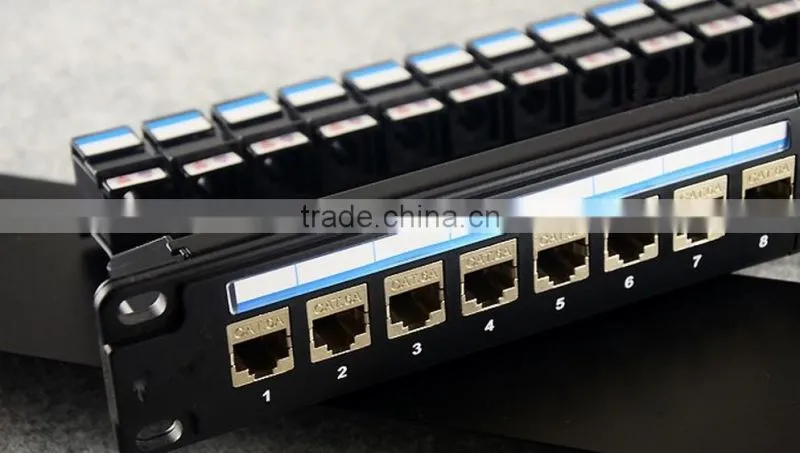

Numeral marking on the front side of the panel
Space for additional marking
Color and numeral marking of IDC modules on the rear side of the panel
Hyperline patch-cord usage provides the best connection
110 type punch down tool is used for cable termination
Electrical characteristics
According to UL 1863
Insulation Resistance : 500 mega ohms (minimum)
Contact Resistance : 20 mega ohms
Current Rating : 1.5 Amps (maximum)
DC Resistance: 0.1 ohms (maximum)
Dielectric withstand voltage: 1000 Volts AC RMS, 60Hz/1 minute
