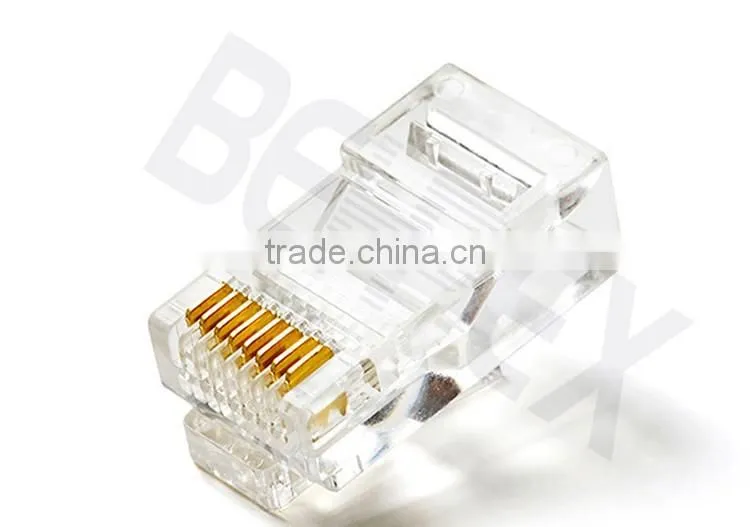

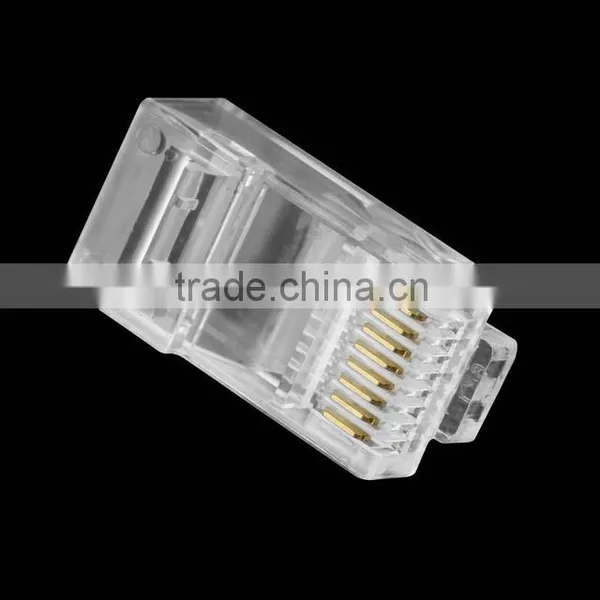

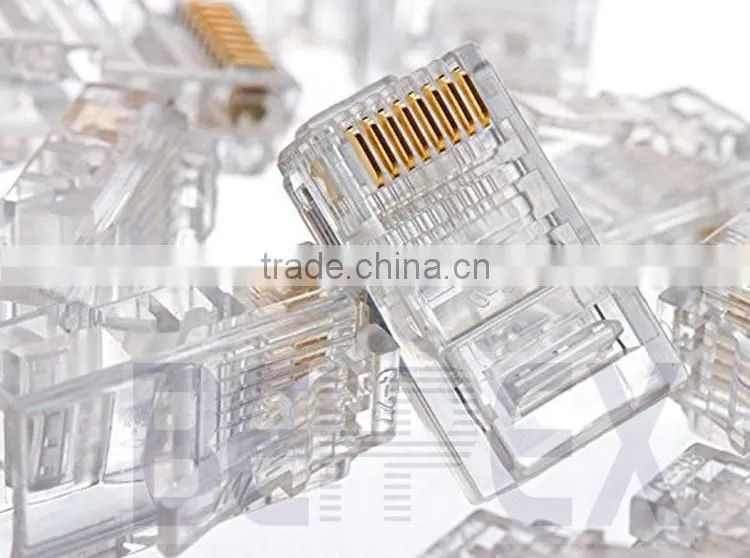

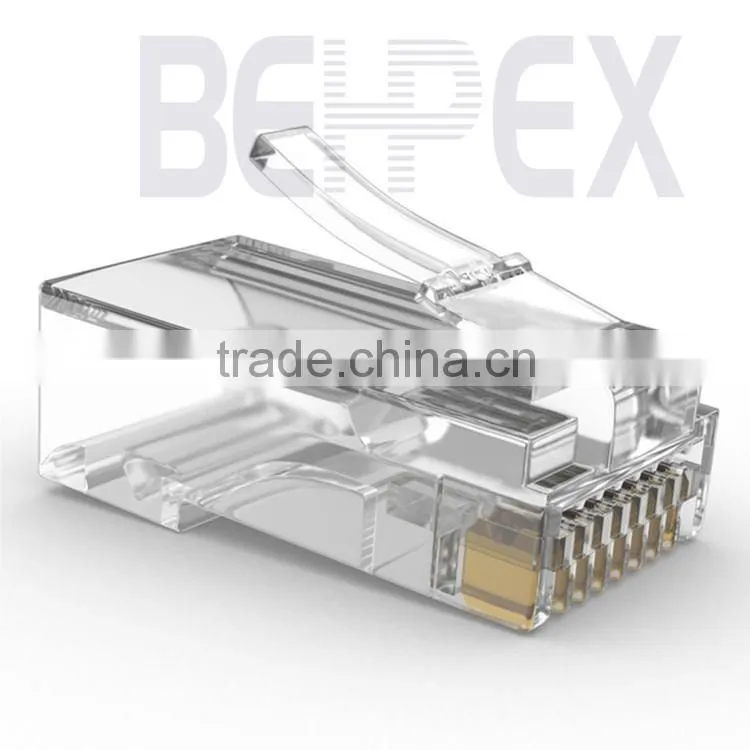

RJ45 UTP Cat5e Crimp Plug Modular Plug
Description
RJ45 Cat 5E Modular Crimp Plugs for Solid/Stranded Cable.
Specifications
Current Rating:1.5 AMPS at 25'C
Voltage Rating:125 V AC
Insulation Resistance:1000 MΩ Min. at 500V DC EIA-364-21C
Withstand Voltage:1000 V AC RMS OR 1500 V DC at 0.5mA 50 Hz/60Hz Minute
EIA-364-20B
Contact Resistance:40 mΩ Max. EIA-364-23B
Mechanical
Retention Strength:57.83N Min.EIA-364-98
Durability:1000 Mating Cycles Min.
Environmental Operation Temperature:-20'C~+70'C
Storage Temperature:-10'C~+40'C Relative Humidity<80%
Material Housing:PC
Flammability Class:UL94V-0/V-2
Terminal:Thickness 0.35mm Phosphor Bronze Selectrive Gold Plating Over Nickel
Gold Plating: G/F inch,3u Inch,6u inch,15u inch,30u inch,50u inch
Advantages:
1. for structured cabling system & telephone systerm
2. fast delivery
3. All products have been 100% tested and inspected before shipment.
4. All products have quanty warranty. If there is no man-made problem, we will replace or repair freely.
5. We provide the best after-service. If any quality problems, we will do our best to solve for customers.
