VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap

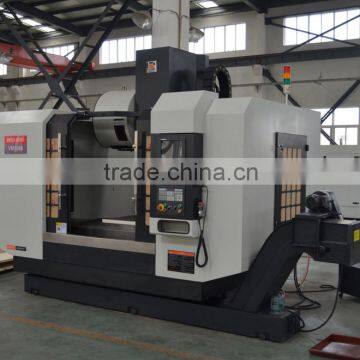

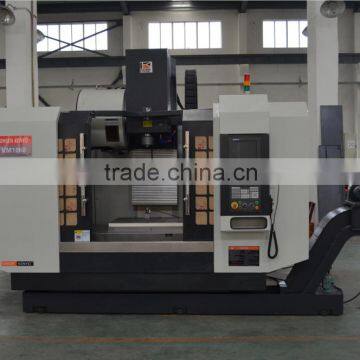

VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-1
VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-2

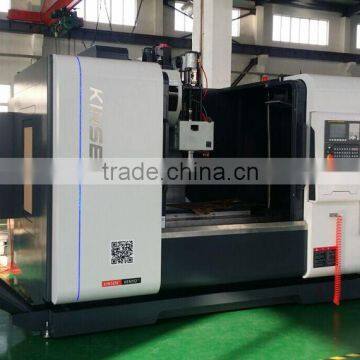

VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-3
VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-4

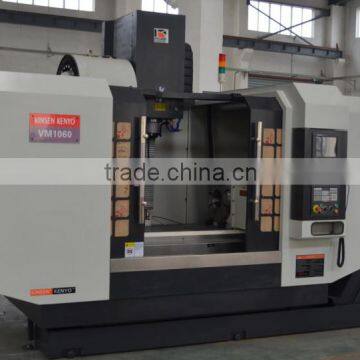

VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-5
VM1060 Vertical Type Metal Cnc Milling Machine Center Cheap photo-6
US$ 39,217 - 47,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Vertical
Place of Origin Liaoning, China
Brand Name R&C
Model Number VM1050
Voltage 380V
Power(W) 5.5-7.5
Dimension(L*W*H) TALK MORE
Weight 6.5t
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
VM1060 vertical type metal cnc milling machine center cheap




Product Description



 IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER > CONTACT

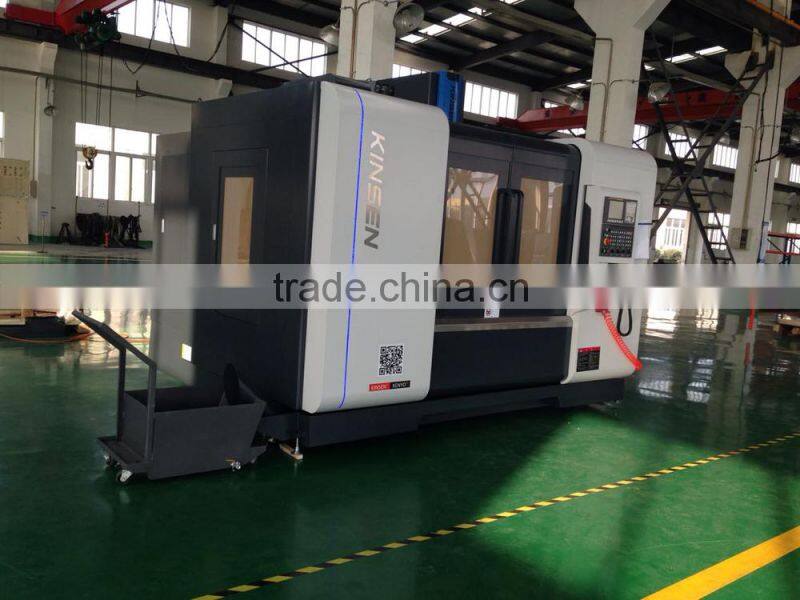

VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap

  IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER > CONTACT

item VM1060

unit



Travel
X axis travel
1000 mm

Y axis travel
600 mm

Z axis travel
600 mm
Distance from spindle nose to table surface 180-780 mm
Table Size 600×1300 mm

T-slots
18×5 mm

Max. loading capacity
1000 kg
Spindle
Spindle taper
BT40

Spindle speed
8000 rpm

Spindle motor power
7.5-11 kw

Spindle diameter
150 mm
Automatic tool changer Tool capacity 24 pieces

Tool Change type

Knife-arm type tools


Tool shank type
BT40

Pull studs
45 degree

Max. tool length
350 mm
Max. tool diameter 80 mm
Max. tool weight 8 kg
T-T time 2.8 sec
Feed rate
Rapid traverse
≥10000 mm/min

Feed rate
6000 mm/min
Motor
Axis motor X/Y/Z
2.5 kw

Coolant pump motor
90 W
accuracy
Repeatability
0.005 mm

positioning accuracy
0.01 mm
Dimension
CNC system
KENYO/GSK/FAGOR/SIEMENS/FANUC

Coolant tank capacity
100 L

Overall dimension
2800×2200×2600 mm

Machine weight(abt)
8500 kg

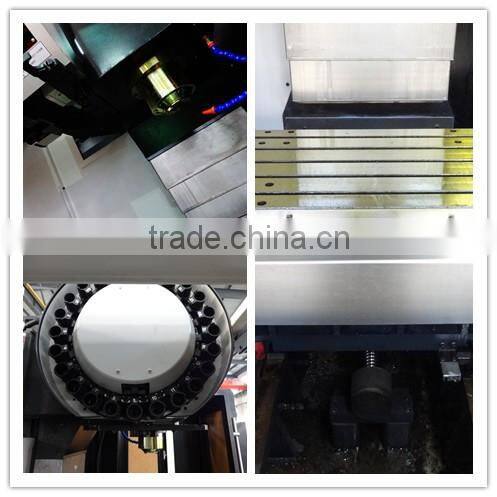

Main Parts



  IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER > CONTACT

Packaging & Shipping







IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER > CONTACT

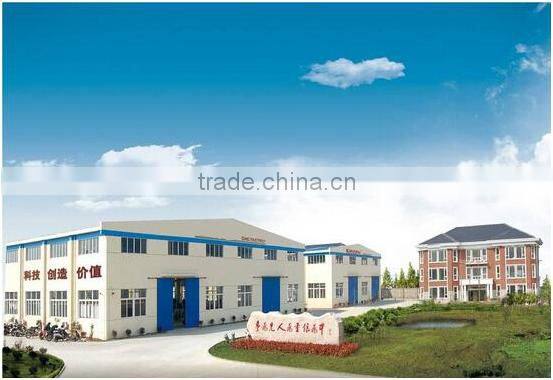

Company Information



  IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER >CONTACT

Exhibition





VM1060 vertical type metal cnc milling machine center cheap



















 VM1060 vertical type metal cnc milling machine center cheap





VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap
  IMAGE > SPECIFICATION > MAIN PARTS > PACKING > OTHER PRODUCTS > PRODUCER > CONTACT

VM1060 vertical type metal cnc milling machine center cheap

VM1060 vertical type metal cnc milling machine center cheap



VM1060 vertical type metal cnc milling machine center cheap
