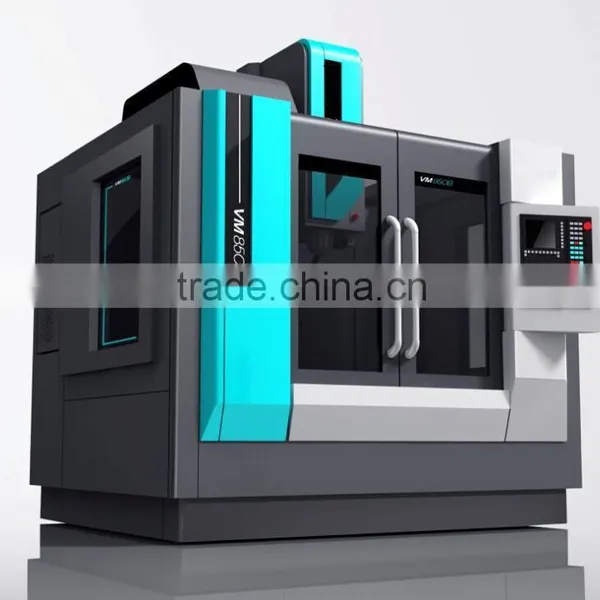

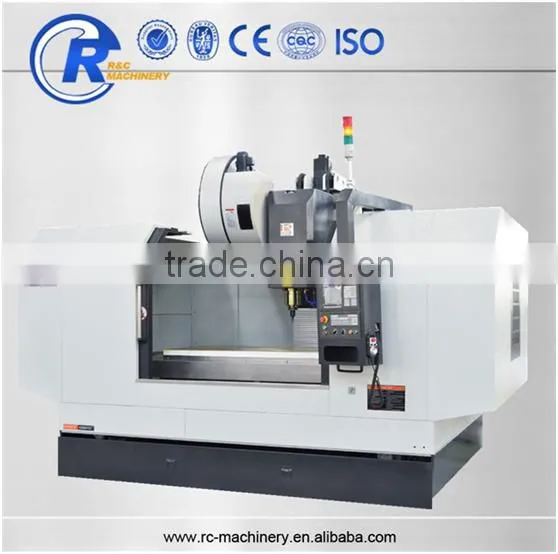

VM1580 Heavy Duty Vertical CNC Machine Center VMC Machine
Specification And Data | ||||||
Item |
VM1060 |
VM1265 |
VM1370 |
VM1580 |
Unit |
|
Travel |
X axis travel |
1000 |
1200 |
1300 |
1500 |
mm |
Y axis travel |
600 |
700 |
700 |
800 |
mm |
|
Z axis travel |
600 |
600 |
650 |
700 |
mm |
|
Distance from spindle nose to table surface |
180-780 |
150-750 |
150-800 |
170-870 |
mm |
|
Table |
Size |
600×1300 |
700×1360 |
710×1400 |
800×1700 |
mm |
T-slots |
22×5 |
22×5 |
22×5 |
22×5 |
mm |
|
Max. loading capacity |
800 |
1000 |
1000 |
1500 |
kg |
|
Spindle |
Spindle taper |
BT40 |
BT50 |
BT50 |
BT50 |
|
Spindle speed |
8000 |
8000 |
6000 |
6000 |
rpm |
|
Spindle motor power |
7.5/11 |
7.5/11 |
7.5/11 |
11/15 |
kw |
|
Spindle unit |
TAIWAN |
TAIWAN |
TAIWAN |
TAIWAN |
|
|
Spindle diameter |
180 |
180 |
180 |
180 |
mm |
|
Feed rate |
Rapid traverse |
24000 |
24000 |
20000 |
12000 |
mm/min |
Feed rate |
4000 |
4000 |
4000 |
4000 |
mm/min |
|
Motor |
Axis motor X/Y/Z |
4.4 |
4.4 |
4.4 |
4.4 |
kw |
Coolant pump motor |
150 |
150 |
150 |
150 |
W |
|
Accuracy |
Repeatability |
0.005 |
0.005 |
0.005 |
0.005 |
mm |
Positioning accuracy |
0.01 |
0.01 |
0.01 |
0.01 |
mm |
|
Others |
Ball screws |
HIWIN |
HIWIN |
HIWIN |
HIWIN |
|
|
Spindle unit |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
|
|
Coupling |
KTR |
KTR |
KTR |
KTR |
|
|
Lubrication system |
Auto |
Auto |
Auto |
Auto |
|
|
Coolant tank capacity |
150 |
150 |
150 |
150 |
L |
|
CNC system |
SIEMENS 828D/ |
SIEMENS 828D/ |
SIEMENS 828D/ |
SIEMENS 828D/ |
|
|
Spindle cooling system |
standard |
standard |
standard |
standard |
|
Welcome to contact us.
Welcome back to HOME page to view more>>>
