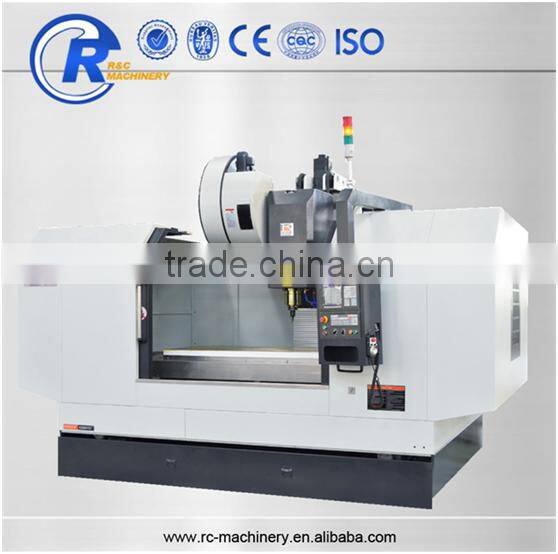

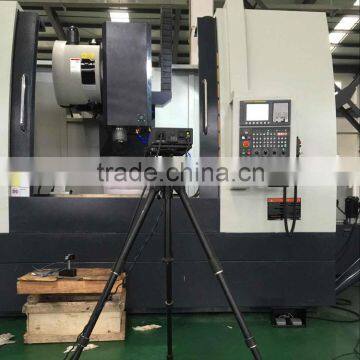

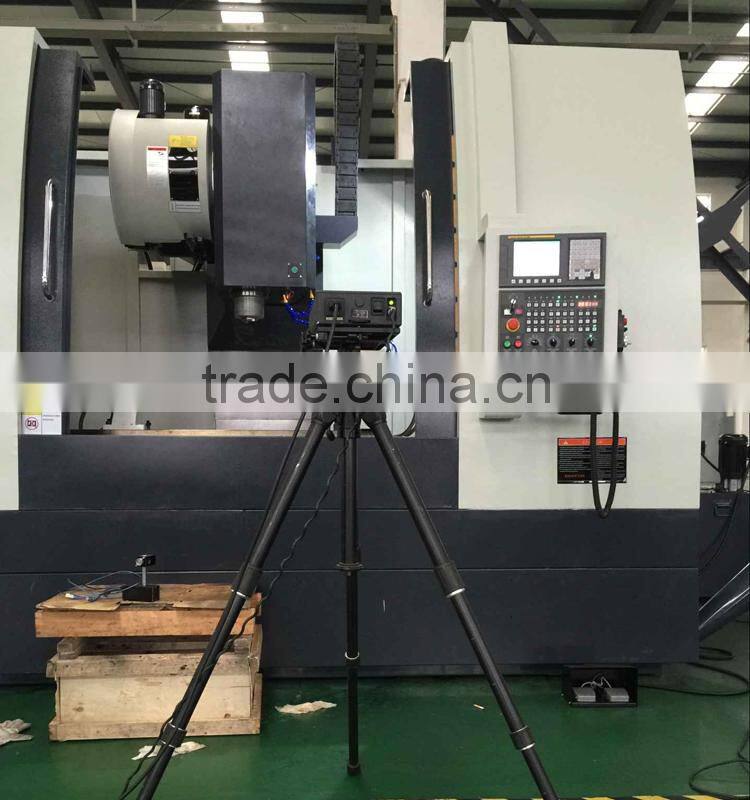

VM15805 Axis Cnc Vertical Machining Center Cnc Milling Machine Center With Speed Spindle

Dalian R&C Machinery Co., Ltd.

US$ 90,000 - 95,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

R&C

Model Number:

VM1580

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name R&C

Model Number VM1580

Condition New

After-sales Service Provided Engineers available to service machinery overseas

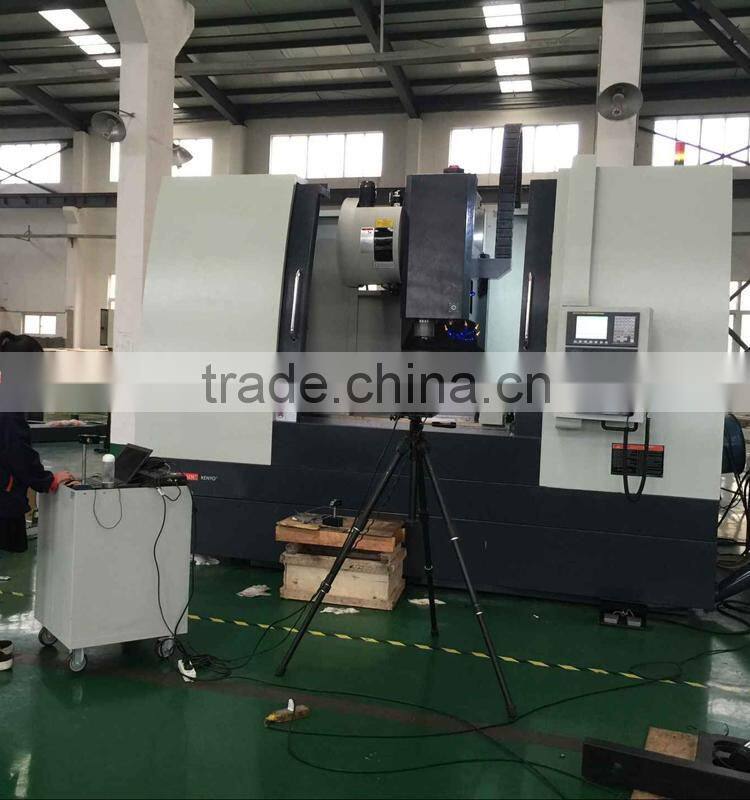

VM15805 axis cnc vertical machining center cnc milling machine center with speed spindle

Product Description

Specification And Data

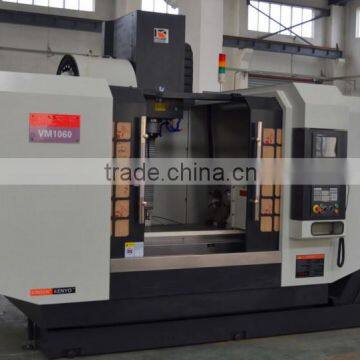

Item		VM1060	VM1265	VM1370	VM1580	Unit
Travel	X axis travel	1000	1200	1300	1500	mm
	Y axis travel	600	700	700	800	mm
	Z axis travel	600	600	650	700	mm
	Distance from spindle nose to table surface	180-780	150-750	150-800	170-870	mm
Table	Size	600×1300	700×1360	710×1400	800×1700	mm
	T-slots	22×5	22×5	22×5	22×5	mm
	Max. loading capacity	800	1000	1000	1500	kg
Spindle	Spindle taper	BT40	BT50	BT50	BT50
	Spindle speed	8000	8000	6000	6000	rpm
	Spindle motor power	7.5/11	7.5/11	7.5/11	11/15	kw
	Spindle unit	TAIWAN	TAIWAN	TAIWAN	TAIWAN
	Spindle diameter	180	180	180	180	mm
Feed rate	Rapid traverse	24000	24000	20000	12000	mm/min
Feed rate	Feed rate	4000	4000	4000	4000	mm/min
Motor	Axis motor X/Y/Z	4.4	4.4	4.4	4.4	kw
Motor	Coolant pump motor	150	150	150	150	W
Accuracy	Repeatability	0.005	0.005	0.005	0.005	mm
Accuracy	Positioning accuracy	0.01	0.01	0.01	0.01	mm
Others	Ball screws	HIWIN	HIWIN	HIWIN	HIWIN
	Spindle unit	Taiwan	Taiwan	Taiwan	Taiwan
	Coupling	KTR	KTR	KTR	KTR
	Lubrication system	Auto	Auto	Auto	Auto
	Coolant tank capacity	150	150	150	150	L
	CNC system	SIEMENS 828D/ FANUC 0i	SIEMENS 828D/ FANUC 0i	SIEMENS 828D/ FANUC 0i	SIEMENS 828D/ FANUC 0i
	Spindle cooling system	standard	standard	standard	standard
