VS5080 CNC Vertical 5-axis Machining Center
US$ 1,000 - 100,000
/ Set
1 Set(Min. Order)
- DALIAN
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Liaoning, China | Brand Name | R&C | |
| Model Number | VS5080 | Voltage | 380V | |
| Power(W) | 12KW | Dimension(L*W*H) | 2805*2300*2600mm | |
| Weight | 8000kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

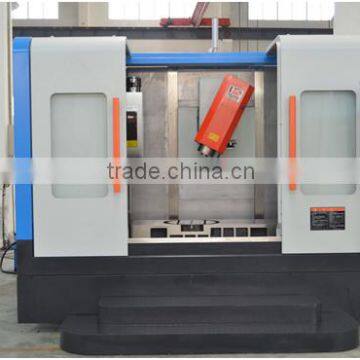

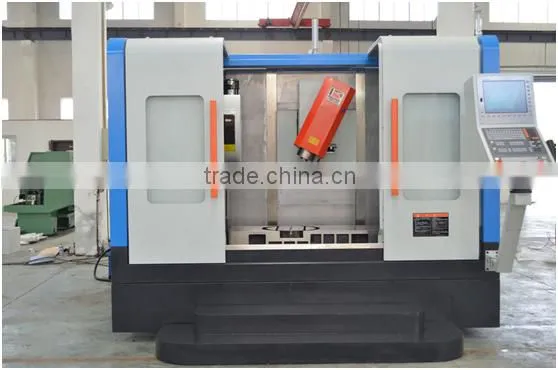

VS5080 CNC Vertical 5-axis Machining Center
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
 |
| IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C |
Item | VS5080 |
Table size(mm) | 500×1200 |
X/Y/Z travel(mm) | 800×500×500 |
Embedded rotary table diameter(C axis) | Φ400 |
Max. table loading(Kg) | 600 |
Distance from spindle nose to table surface(mm) | 140---640 |
Spindle type | BT40 |
Spindle diameter | 170mm |
Spindle swivel angle B axis | ±110° |
Rotary table C axis | 0-360º |
Tool magazine type | BT40 |
Tool magazine capacity | 24 |
Repeatability(mm) | X:0.006 |
Y:0.006 | |
Z:0.006 | |
C axis:0.0015° | |
B axis:0.0015° |

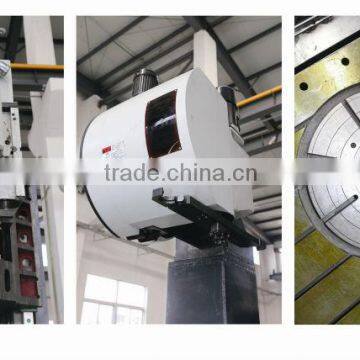

| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS>> OTHER 5AXIS>> OTHER MACHINES >> PACKING >> R&C |
|
|
|
|
VS555 Machining Area 300x300x300mm TableSwivel ±90° | VS655 Machining Area 600x300x420mm Spindle Swivel ±110° | VS5080 Machining Area 800x500x500mm Spindle Swivel ±110° | VS80180 Machining Area 1800x800x800mm Spindle Swivel ±110° |
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING>> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES>> PACKING >> R&C |
|
| KINDLY CONTACT ME IF YOU NEED ANY INFORMATION. |
|
