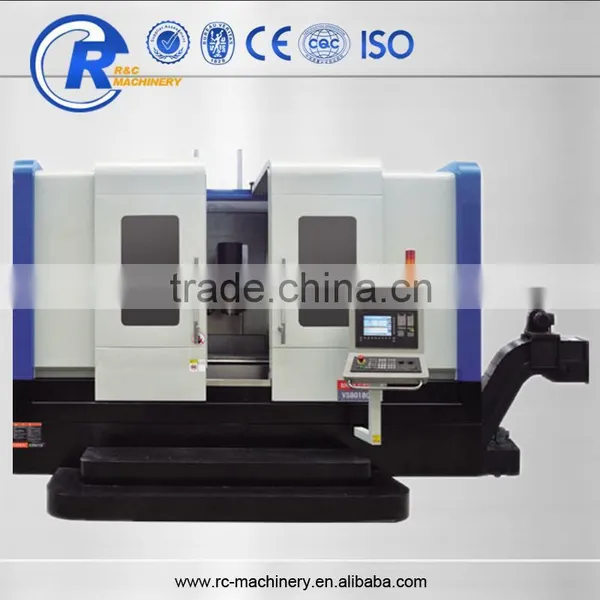

5 Axis Working Cnc Spindle Machine
US$ 10,000 - 100,000
/ Set
1 Set(Min. Order)
- DALIAN
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Place of Origin | Liaoning, China | Brand Name | R&C | |
| Model Number | VS60100 | Voltage | 380V | |
| Power(W) | 12kw | Dimension(L*W*H) | 600*1400(table size) | |
| Weight | 9t | Certification | ISO9001 & CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

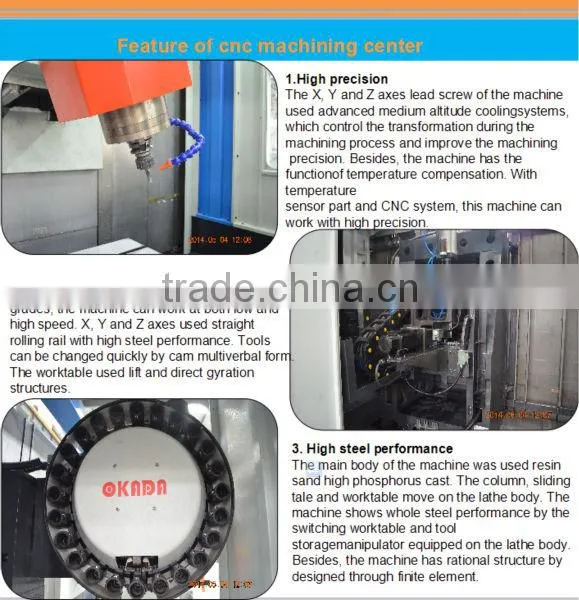

1.5 axis cnc machining center2.High quality
3.High efficiency
4. Big machining capacities
5.Low noice

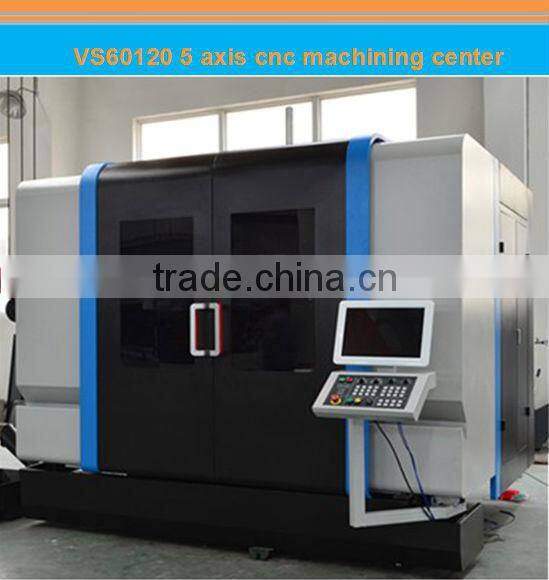

5 axis working cnc spindle machine
| Product model | VS60120 | Unit |
| Table size | 600*1400 | mm |
| X/Y/Z travel | 1200*600*600 | mm |
| Diameter of in NC rotary table(C axis) | φ450 | mm |
| Rotary table hydraulic clamping force | 4000 | Nm |
| Swivel milling head hydraulic clamping force | 2000 | Nm |
| Max. load | 1000 | Kg |
| Distance from spindle nose to workbench | 150-750 | mm |
| Spindle type | BT40 | |
| Spindle diameter | φ170 | mm |
| Spindle swivel angle | ±110° | |
| Tool magazine type | BT40 | |
| Tool magazine capacity | 24 | |
| Spindle speed | 9000 | rpm |
| Spindle braking time | ≤4 | s |
| Spindle power | 12 | kw |
| Ball screw | HIWIN | |
| Coupling | KTR | |
| Spindle | HeSheng | |
| Ball screw support bearing | NSK | |
| Positioning accuracy | X:0.01 Y:0.01 Z:0.01 C axis:0.002° B axis:0.002° | mm |
| Repeatability | X:0.006 Y:0.006 Z:0.006 C axis:0.0015°B axis:0.0015° | |
| Parallelism between X axis and B axis | ≤0.02 | |
| Quick movement | 15000 | mm/min |
| Cutting feedrate | 1-8000 | mm/min |
| Machine cover | Total closed | |
| Lubrication system | Automatic | |
| Cooling system | Oil cooling | |
| Gross weight | 20 | T |

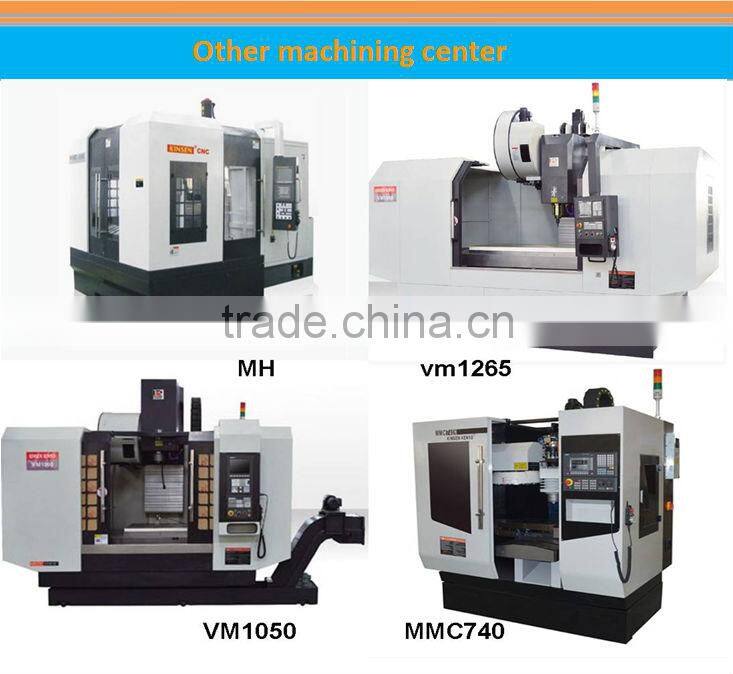

Other cnc machining centers, click here!!!
The full machine warranty is 1 year. The seller will offer maintenance free service in the warranty period (except the damage caused by the user's own reasons).
