Home > Products > Five Axis Simultaneous Machine Center > cheapest mini cnc 5 axis milling machine center

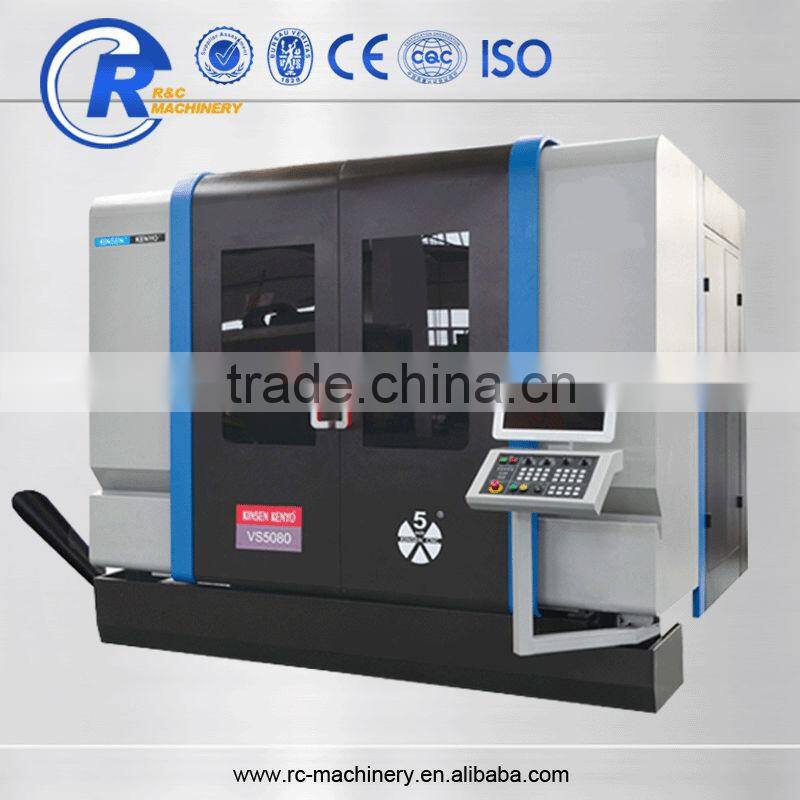

cheapest mini cnc 5 axis milling machine center
US$ 290,000 - 350,000
/ Set
1 Set(Min. Order)
- DALIAN
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Liaoning, China | Brand Name | R&C | |
| Model Number | VS80160 | Voltage | 380V | |
| Power(W) | 15/18.5kw | Dimension(L*W*H) | 800*1800 TABLE SIZE | |
| Weight | 20 T | Certification | CE ISO BV | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.vertical cnc machining center2.Table Size 800*1800
3.Travel: 1600*800*800
4. Max Table Load 2000kg
cheapest mini cnc 5 axis milling machine center
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
 |
| IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C |
Item | VS80160 |
Table size(mm) | 800×1800 |
X/Y/Z travel(mm) | 1600×800×800 |
Embedded rotary table diameter(C axis) | Φ630 |
Max. table loading(Kg) | 2000 |
Distance from spindle nose to table surface(mm) | 220---1020 |
Spindle type | BT40 |
Spindle diameter | 170mm |
Spindle swivel angle B axis | ±110° |
Spindle speed | 8000/10000/12000 |
Tool magazine type | BT40 |
Tool magazine capacity | 24/32 |
Repeatability(mm) | X:0.01 |
Y:0.01 | |
Z:0.01 | |
C axis:0.0015° | |
B axis:0.0015° |
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS>> OTHER 5AXIS>> OTHER MACHINES >> PACKING >> R&C |
|
|
|
|
VS555 Machining Area 300x300x300mm TableSwivel ±90° | VS655 Machining Area 600x300x420mm Spindle Swivel ±110° | VS5080 Machining Area 800x500x500mm Spindle Swivel ±110° | VS80180 Machining Area 1800x800x800mm Spindle Swivel ±110° |
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING>> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
| COMPANY PROFILE. |
|
| THE CERTIFICATE. |
|
|
