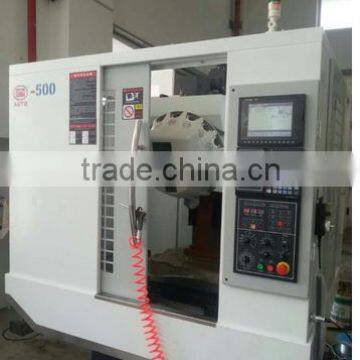

RC-T5 High Speed CNC Drilling and Tapping Center

FOB Price

USD $40,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	RC
Model Number	RC-T5	Power(W)	10KW
Dimension(LWH)	1730X1580X2100	Weight	2900KG
Certification	CE&ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

RC-15 High Speed CNC Drilling and Tapping Center

Product Description

Structural Features:

²It is assured that the machining accuracy is quite high with good quality massive machine of cast iron, the space between wide guide rail and firmness of whole machine.

²Each axis uses a high power ac servo motor to supply powerful axial thrust, and stabilize tightening torque under strong cutting and high feed-rate of parts. Meanwhile make sure the stability of each axis in any condition.

²Optimized device is adopted in main axis. It can maintain the rigidity and accuracy of main axis for a quite long time under high speed, and fit for diversifying cutting works.

specifications:

Specification
Item	KR-T5	Unit
X travel	500	mm
Y travel	400	mm
Z travel	410	mm
Distance from spindle nose to workbench	110-405	mm
Table size	650*400	mm
Max. load	400	kg
T-slot	3-14	mm
Speed	60-12000	r/min
Spindle Motor power	3.75/5.5/7.5	kw
X Max. Feedrate	48	m/min
Y Max. Feedrate	48	m/min
Z Max. Feedrate	48	m/min
Tool Type	BT30
CNC System	SYNTEC/LNC/ Mitsubishi/Fanuc
Positioning Accuracy	0.01/500	mm
Reposition Accuracy	0.005	mm
Machine Weight	2900	kg
Power Supply	10	kw
