RC-1480 High Precision CNC Engraving Milling Machine

FOB Price

US$ 20,000 - 40,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	RC-1480
Type	Vertical	CNC or Not	CNC
Voltage	380V/50Hz	Power(W)	7.5KW
Dimension(LWH)	300023003000	Weight	8500kg
Certification	CE&ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Image &

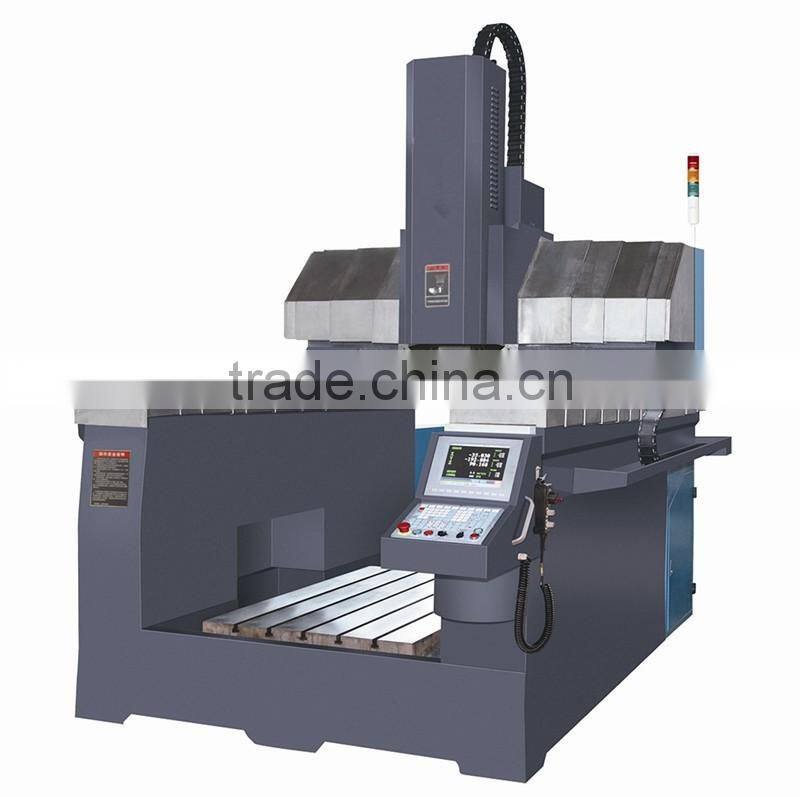

RC-1480 High Precision CNC Engraving milling Machine

Main application

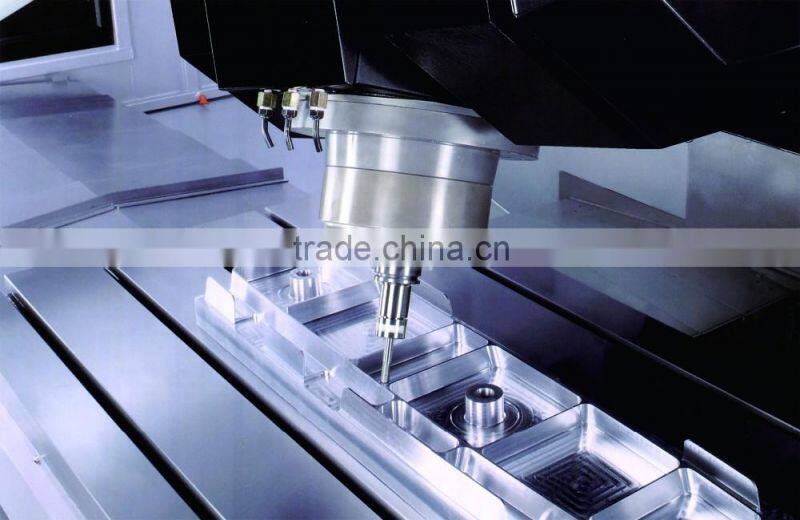

The machine is widely adopted in small and medium sized auto parts molds, plastic molds stamping molds and electrodes, etc. It has high accuracy and efficiency, and it is the fast-speed specialized carving milling CNC machine.

Product Description

Item	Standard Values	Unit
X/Y/Z travel	8001400700	mm
Table size	900*1500	mm
Table flatness tolerance	±0.02	mm
Spindle deviation	<0.005	mm
X/Y/Z control resolution	0.0015625	mm
X/Y/Z motion positioning accuracy	±0.01/300	mm
X/Y/Z repeatability	±0.00625	mm
X/Y/Z operating sensitivity	<0.005	mm
Z axis spatial height	1080	mm
Machine weight	8500	kg
Max.carving power consumption	15	kw
Max.caving speed	6000	mm/min
Papid traverse	8000	mm/min
X/Z perpendicularity	0.01/300	mm
Spindle speed	6000-18000/（r-min）	r-min
Power of main motor	7.5	kw
Drive system	AC servo
Working voltage	380V/50Hz
Overall dimension	300023003000	mm

Product Shows

Certifications

Why Choose Us

Auto fabricate

Machine has been equipped with automatic cutter setting device.

Brand Garantee

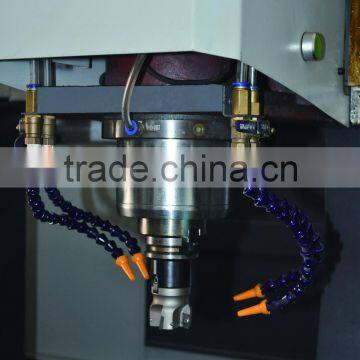

Machine has been equipped with accurate bidirectional ball screw of famous brand, Taiwan rectangle rail and accurate bearing with strong rigidity and high dynamic accuracy. It is also equipped with Japan YASKAWA ac servo motor. High-speed main axis and cooling system with high accuracy and high power make amplitude smaller and three-axis more stable

Flexible Operation

RC-1480 is kind of open design, and it is convenient for users to load and unload processing parts. Machine body is fully casting with stable structure and great weight-bearing ability
