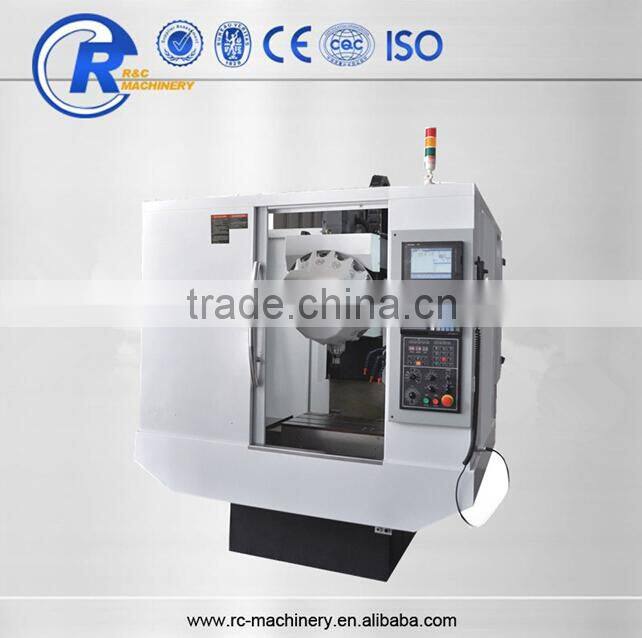

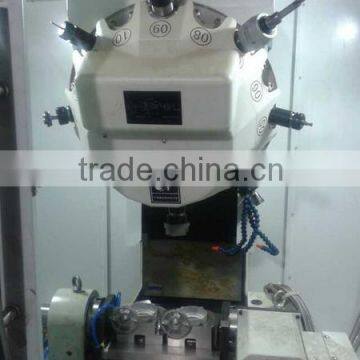

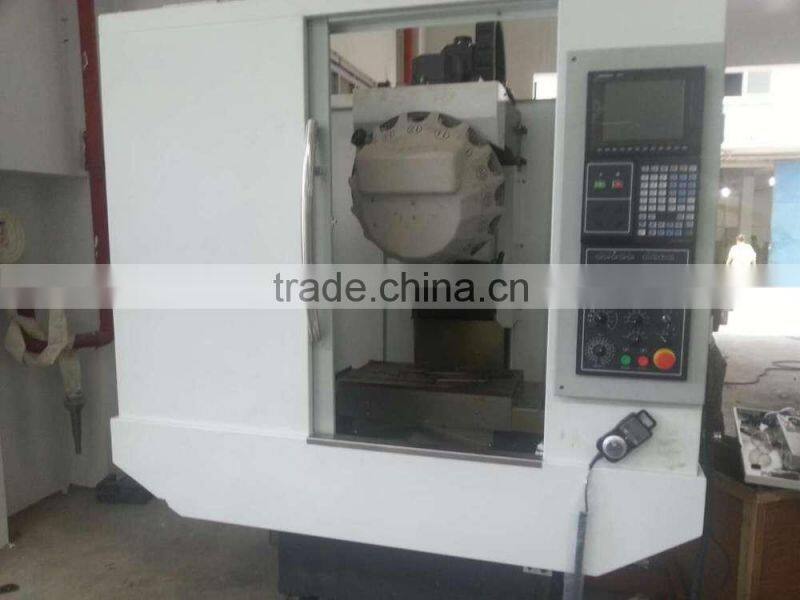

RC-T5 Fine Manuafacture Vertical Drilling and Tapping Machine Centre
Structural Features:
²It is assured that the machining accuracy is quite high with good quality massive machine of cast iron, the space between wide guide rail and firmness of whole machine.
²Each axis uses a high power ac servo motor to supply powerful axial thrust, and stabilize tightening torque under strong cutting and high feed-rate of parts. Meanwhile make sure the stability of each axis in any condition.
²Optimized device is adopted in main axis. It can maintain the rigidity and accuracy of main axis for a quite long time under high speed, and fit for diversifying cutting works.
specifications:
Specification | ||
Item | KR-T5 | Unit |
X travel | 500 | mm |
Y travel | 400 | mm |
Z travel | 410 | mm |
Distance from spindle nose to workbench | 110-405 | mm |
Table size | 650*400 | mm |
Max. load | 400 | kg |
T-slot | 3-14 | mm |
Speed | 60-12000 | r/min |
Spindle Motor power | 3.75/5.5/7.5 | kw |
X Max. Feedrate | 48 | m/min |
Y Max. Feedrate | 48 | m/min |
Z Max. Feedrate | 48 | m/min |
Tool Type | BT30 | |
CNC System | SYNTEC/LNC/ Mitsubishi/Fanuc | |
Positioning Accuracy | 0.01/500 | mm |
Reposition Accuracy | 0.005 | mm |
Machine Weight | 2900 | kg |
Power Supply | 10 | kw |

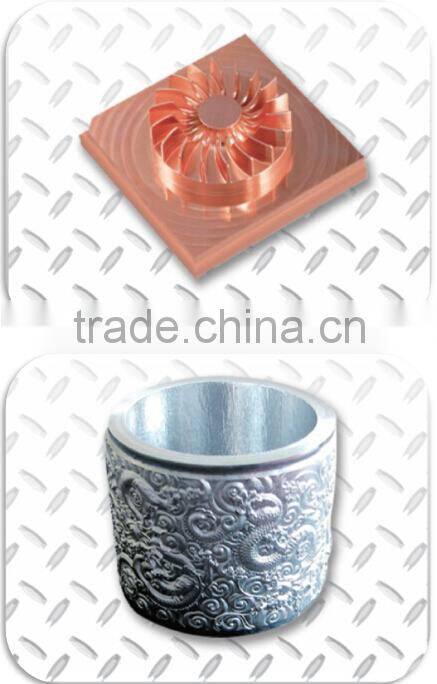

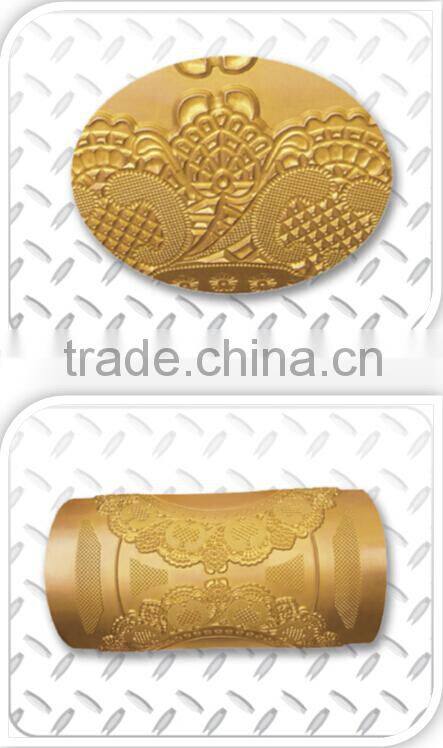

Product Show

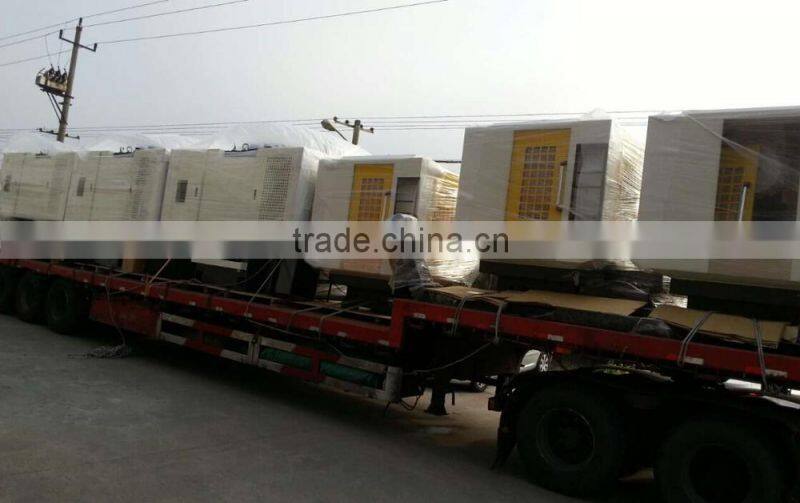

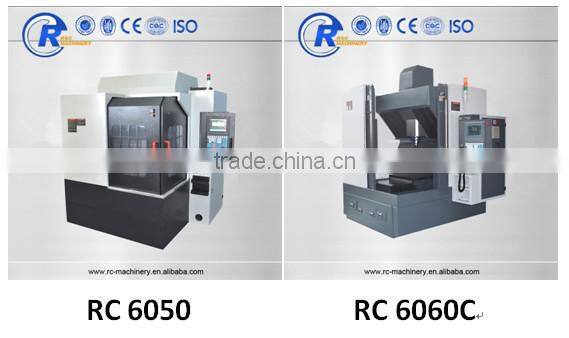

IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>>R&C
|
|
