TK6913 Boring and Milling Machine

Specification

Unit

TK6913

TK6916

TK6920

TK6926

Boring spindle diameter

mm

Ø130

Ø 160

Ø 200

Ø 260

Spindle taper

ISO50(BT50)

ISO50(BT50)

ISO60

ISO60

Spindle speed

rpm

2-1000(Op:2000)

2-800(Op:2000)

2-800(Op:2000)

2-800

Size of ram section

mm

380´380

480´520

480´520

640´720

Total travel of boring spindle and ram

mm

1500

2400

2400

3200

Travel of boring spindle (W axis)

mm

800

1200

1200

1600

Axial travel of ram(Z axis)

mm

700

1200

1200

1600

Vertical travel of boring head (Y axis)

mm

2000-4000

2000-6000

2000-7000

3000-9000

Longitudinal travel of column(X axis)

mm

3000-30000

3000-30000

3000-30000

3000-30000

Feedrate of ram(Z axis)

mm/min

0.5-4800

1-4000

1-4000

0.5-4800

Feedrate of boring spindle (W axis)

mm/min

0.5-4800

1-4000

1-4000

0.5-4800

Longitude travel speed of column

mm/min

1-5600

1-6000

1-6000

1-5600

Vertical travel speed of boring head

mm/min

1-5600

1-6000

1-6000

1-5600

Main travel speed of boring head

kW

22/30

55

75

110

Machine tool main drive:

Machine tool main drive by mechanical variable speed motor and speed regulating electrical appliances can obtain 2-560 - r/min1000 r (optional) the infinite speed range to meet the needs of various machining.

The transmission structure:

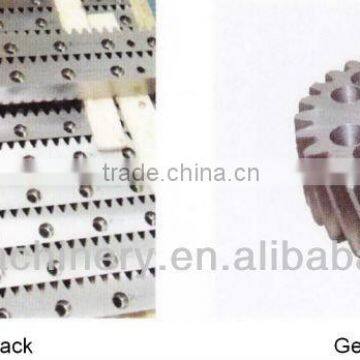

X axis traverse by eliminating gaps for the double pinion and rack structure of the whole feed structure in a slide in the body and therefore good rigidity and transmission can be eliminate the clearance adjusting

Spindle box vertical feed (Y) with ball screw pair drive screw fixation in the first column on the feed motor through slow down gear drives the rotating spindle box to get the vertical feed

Z axis W axis driving principle of the ball screw vice same as Y-axis.

Precision compensation system:

TK69 CNC floor-type boring and milling machine series adopts automatic gravity compensation system to ensure the balance of spindle box body and prevent slippery pillow moved forward when the main spindle box focus changes and make the spindle head.

Guide:

Former pillar traverse spindle box for vertical feed and ram the axial feed adopts the static pressure guide rail machine precision has good damping shock absorption effect to keep good long life high reliability.

Part

Brand

Origin

Bearing

SKF

Sweden

Gearbox and reducer

ZF(high speed)

Germany

Screw

Bliss

Germany

Electric Cabinet

Rital

Germany

Boring spindle

Xiangyang Precision

China

Y axis shield

Heman

Germany

Oil pump

Compass

Taiwan

       Main motor and servo

FANUC

Japan

Controller

FANUC Oi MD

Japan

Touch Panel

FANUC

Japan

Motor control unit

FANUC

Japan

Electric Cabinet AC

Sanhe

China
