DBM130B Milling Machine With cn Line Boring Machine

Dalian R&C Machinery Co., Ltd.
DBM130B Milling Machine With cn Line Boring Machine thumbnail-1
DBM130B Milling Machine With cn Line Boring Machine thumbnail-2
DBM130B Milling Machine With cn Line Boring Machine thumbnail-3
DBM130B Milling Machine With cn Line Boring Machine thumbnail-4
DBM130B Milling Machine With cn Line Boring Machine thumbnail-5
DBM130B Milling Machine With cn Line Boring Machine thumbnail-6
DBM130B Milling Machine With cn Line Boring Machine photo-1

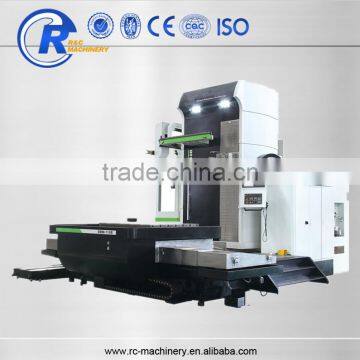

DBM130B Milling Machine With cn Line Boring Machine photo-2
DBM130B Milling Machine With cn Line Boring Machine photo-3
DBM130B Milling Machine With cn Line Boring Machine photo-4
DBM130B Milling Machine With cn Line Boring Machine photo-5
DBM130B Milling Machine With cn Line Boring Machine photo-6
US$ 50,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 630 Mm
Place of Origin Liaoning, China
Brand Name R&C
Model Number DBM-130B
Voltage 380V
Power(W) 15KW
Dimension(L*W*H) 9055*8500*8115
Weight 55000KG
Certification CE & ISO
After-sales Service Provided Engineers available to service machinery overseas

DBM130B milling machine with cn line boring machine


Photos of Mahine
DBM130B milling machine with cn line boring machineDBM130B milling machine with cn line boring machineDBM130B milling machine with cn line boring machineDBM130B milling machine with cn line boring machine



 Processing Equipment

 DBM130B milling machine with cn line boring machine





Main Parameters
Model
Unit
DBM-130
DBM-130A
DBM-130B
X-axis travel (standard)
mm
2000
3500
4500
X-axis travel (optional)
mm
2500/3000/3500
4500/5500
5500
Y-axis travel (standard)
mm
2200
2600
3500
Y-axis travel (optional)
mm
2600
3500

Z-axis travel (standard)
mm
1500
1500
2000
Z-axis travel (optional)
mm
2000
2000
2500
W-axis travel (standard)
mm
700
700
700
Spindle

Center of spindle worktable surface
mm
0~2200
0~2600
0~3500
Nose of spindle to work center
mm
-40~2160
100~2000
100~2000
Spinde diameter
mm
130
130
130
Spindle taper

ISO 50
ISO 50
ISO 50
Rotating spindle speed (standard)
rpm/min
35~3000
35~3000
35~3000
Number of steps of rotating speed of spindle

2 Steps
2 Steps
2 Steps
Transmission mode

Gear box
Gear box
Gear box
Worktable

Table size (optional)
mm
1400×1600
(1600×1800)
1800×2200
(2500×2500)
2500×2500
Division angle
deg
0.001°
0.001°
0.001°
Reference aperture
mm
Φ140H7
Φ330H7
Φ330H7
Max. load on worktable
kg
8000/10000
15000/20000
20000/25000
T-shot
mm
24H7×200×7
24H7×150×11
24H7×150×15
Division precision
sec
15
15
15
Repetitive locating precision
Transmission mode

X, Y, Z-axis

Direct-drive
Direct-drive
Direct-drive
W-axis

Belt-drive
Belt-drive
Belt-drive
Y-axis counterweight

Hyd. Type
Hyd. Type
Hyd. Type
Cutting speed X/Y/Z/W
m/min
10/10/10/5
10/10/10/5
10/10/10/5
Rapid traverse speed X/Y/Z/W
m/min
10/10/10/8
10/10/10/8
10/10/10/8
Tool magazine and automatic toolchanger (optional)

Capacity of tool magazine

60
60
60
Tool selecting mode

Absolute
Absolute
Absolute
Tool changing type

Arm type
Arm type
Arm type
Tooling

BT/CAT/DIN #50
BT/CAT/DIN #50
BT/CAT/DIN #50
Max. tool weight
kg
25
25
25
Max. tool length
mm
500
500
500
Max. tool diameter (no adjacent tool)
mm
Φ125/250
Φ125/250
Φ125/250
Spindle and motor

Spindle motor
kw
FANUC 22/30
FANUC 22/30
FANUC 22/30
Max. torque of spindle
Nm
3002/4093
3002/4093
3002/4093
Precision

Locating precision of machine tool
mm
±0.010
±0.010
±0.010
Repetitive locating precision of machine tool
mm
±0.005
±0.005
±0.005








Filed

 DBM130B milling machine with cn line boring machine

Packaging

DBM130B milling machine with cn line boring machine

 DBM130B milling machine with cn line boring machine

Checkout Equipment

DBM130B milling machine with cn line boring machine



Company Profile

DBM130B milling machine with cn line boring machine



FAQ

DBM130B milling machine with cn line boring machine

Contact us

 DBM130B milling machine with cn line boring machine
