DBM-130 4 Axis Cnc Horizontal Milling Boring Machine

FOB Price

US$ 12,000 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	630 Mm	Place of Origin	Jiangsu, China
Brand Name	R&C	Model Number	DBM-130
Voltage	380V	Power(W)	15KW
Dimension(LWH)	845069805040	Weight	49000
Certification	CE & ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DBM-130 4 axis cnc horizontal milling boring machine

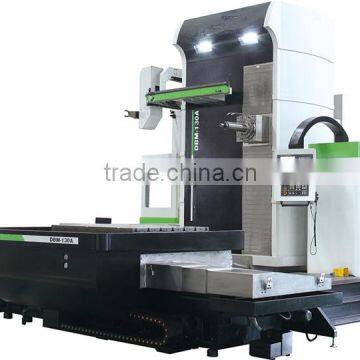

Photos of Mahine

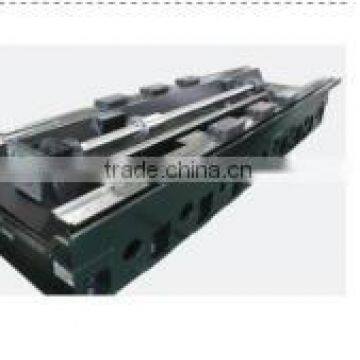

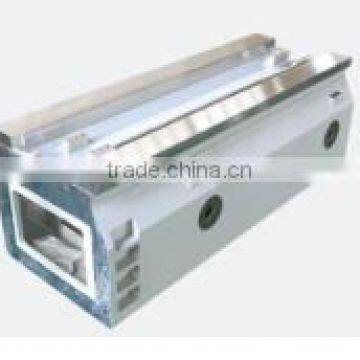

Processing Equipment

Main Parameters

Model	Unit	DBM-130	DBM-130A
X-axis travel (standard)	mm	2000	3500
X-axis travel (optional)	mm	2500/3000/3500	4500/5500
Y-axis travel (standard)	mm	2200	2600
Y-axis travel (optional)	mm	2600	3500
Z-axis travel (standard)	mm	1500	1500
Z-axis travel (optional)	mm	2000	2000
W-axis travel (standard)	mm	700	700
Spindle
Center of spindle worktable surface	mm	0~2200	0~2600
Nose of spindle to work center	mm	-40~2160	100~2000
Spinde diameter	mm	130	130
Spindle taper		ISO 50	ISO 50
Rotating spindle speed (standard)	rpm/min	35~3000	35~3000
Number of steps of rotating speed of spindle		2 Steps	2 Steps
Transmission mode		Gear box	Gear box

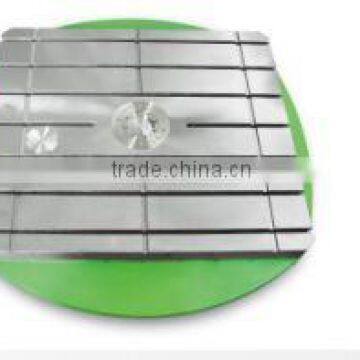

Worktable
Table size (optional)	mm	1400×1600 (1600×1800)	1800×2200 (2500×2500)
Division angle	deg	0.001°	0.001°
Reference aperture	mm	Φ140H7	Φ330H7
Max. load on worktable	kg	8000/10000	15000/20000
T-shot	mm	24H7×200×7	24H7×150×11
Division precision	sec	15"	15"
Repetitive locating precision	sec	4"	4"
Transmission mode
X, Y, Z-axis		Direct-drive	Direct-drive
W-axis		Belt-drive	Belt-drive
Y-axis counterweight		Hyd. Type	Hyd. Type
Cutting speed X/Y/Z/W	m/min	10/10/10/5	10/10/10/5
Rapid traverse speed X/Y/Z/W	m/min	10/10/10/8	10/10/10/8
Tool magazine and automatic toolchanger (optional)
Capacity of tool magazine		60	60
Tool selecting mode		Absolute	Absolute
Tool changing type		Arm type	Arm type
Tooling		BT/CAT/DIN #50	BT/CAT/DIN #50
Max. tool weight	kg	25	25
Max. tool length	mm	500	500
Max. tool diameter (no adjacent tool)	mm	Φ125/250	Φ125/250
Spindle and motor
Spindle motor	kw	FANUC 22/30	FANUC 22/30
Max. torque of spindle	Nm	3002/4093	3002/4093
Precision
Locating precision of machine tool	mm	±0.010	±0.010
Repetitive locating precision of machine tool	mm	±0.005	±0.005
Others
Air pressure required	kgf/cm²	6	6
Voltage requirement	KVA	85	85
Tank capacity	L	315	315
Floor area (length×width×height)	mm	7970×6080×4790	8450×6980×5040
Machine weight	kg	40000	49000
