Specifications
Silicon Carbide Heater:1. Heating temperature: 600-1600C
2. Diameter: 8-54mm
3. Length: 240-4000mm

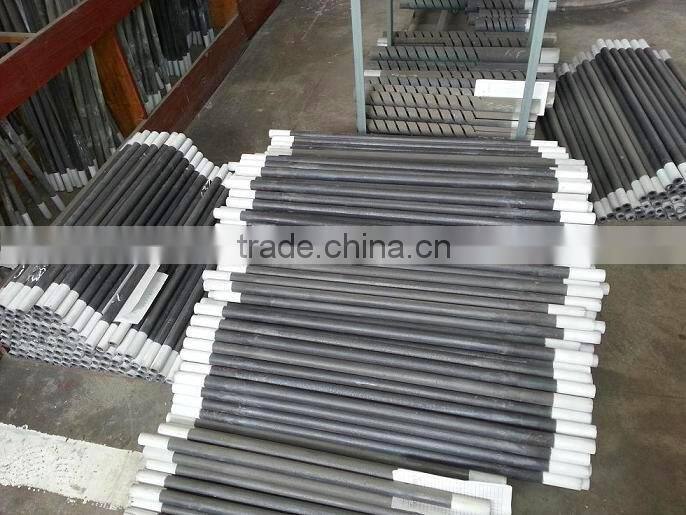

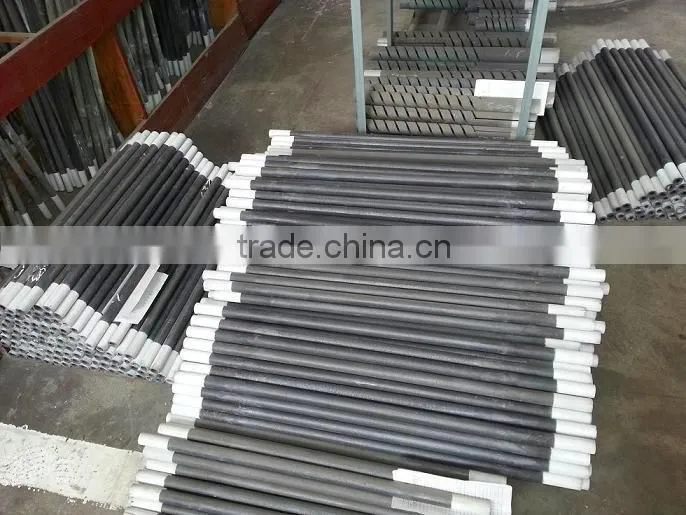

GD Type Silicon Carbide Heater for 1400C Furnace/Kiln

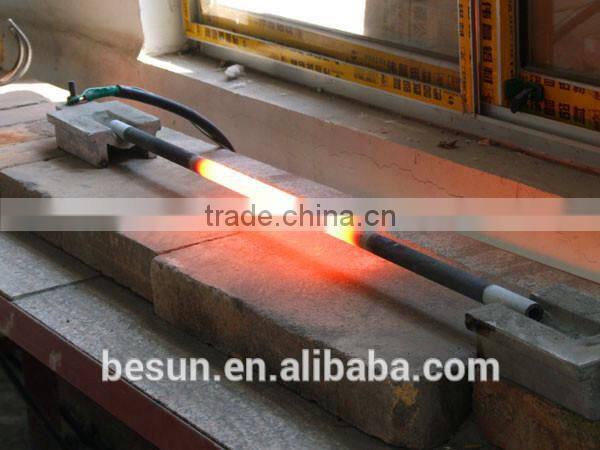

Silicon Carbide Heater GD Type are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.
Silicon Carbide Heater GD Type Features:
1. Withstands as high as 1600°C (surface temperature).
2. Generates high heat output per unit surface area, approximately 5-10 times than
the output of Nichrome wire.
3. High strength and excellent shock resistance.
4. Heat source is free of noise and air pollution.
Silicon Carbide Heater GD Type Specifications:

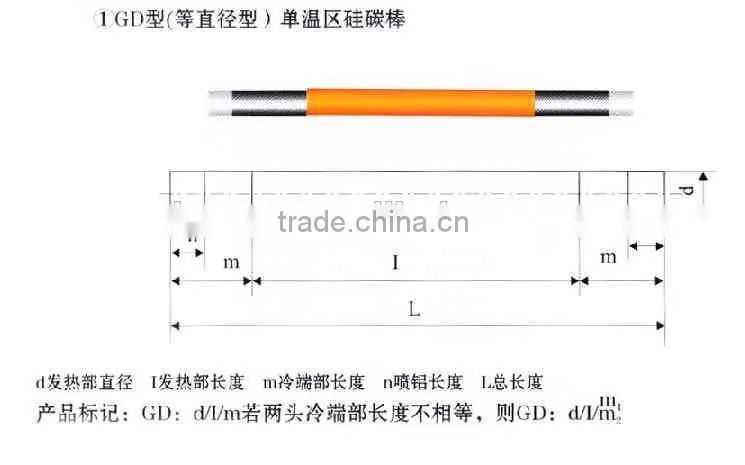

When you place an order of the Rod type silicon carbide heating elements, please give following information:
OD: Outer Diameter;
HZ: Length of Hot Zone;
CZ: Length of Cold Zone;
OL: total Length;
Order Sample of the Rod type silicon carbide heating elements
ED(Rod)Shape: OD=54mm,HZ=1575mm,CZ=419mm OL=2413mm ,Resistance :0.9
Please Specify As: 54/1575/2413/0.90
Silicon Carbide Heater GD Type Parameters:
|
OD (Diameter) |
HZ (Hot Zone) |
CZ (Cold Zone) |
OL (Total Length) |
Resistance |
8mm |
100-300mm |
60-200mm |
240-700mm |
2.1-8.6 ohms |
12mm |
100-400mm |
100-350mm |
300-1100mm |
0.8-5.8 ohms |
14mm |
100-500mm |
150-350mm |
400-1200 |
0.7-5.6ohms |
16mm |
200-600mm |
200-350mm |
600-1300 |
0.7-4.4 ohms |
18mm |
200-800mm |
200-400mm |
600-1600 |
0.7-5.8 ohms |
20mm |
200-800mm |
250-600mm |
700-2000mm |
0.6-6.0 ohms |
25mm |
200-1200mm |
250-700mm |
700-2600mm |
0.4-5.0 ohms |
30mm |
300-2000mm |
250-800mm |
800-3600mm |
0.4-4.0 ohms |
35mm |
400-2000mm |
250-800mm |
900-3600mm |
0.5-3.6 ohms |
40mm |
500-2700mm |
250-800mm |
1000-4300mm |
0.5-3.4 ohms |
45mm |
500-3000mm |
250-750mm |
1000-4500mm |
0.3-3.0 ohms |
50mm |
600-2500mm |
300-750mm |
1200-4000mm |
0.3-2.5 ohms |
54mm |
600-2500mm |
300-750mm |
1200-4000mm |
0.3-3.0 ohms |
