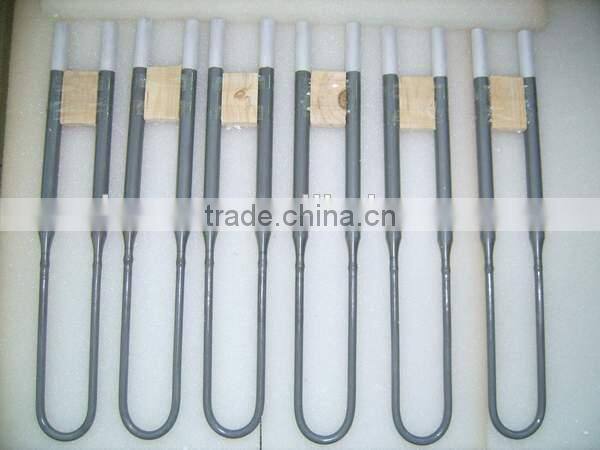

U Shape MoSi2 Heating Element

FOB Price

US$ 15 - 500 / Piece

3 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	JK
Model Number	BN-S8

U shape MoSi2 heating element

1.Now our company supply two types MoSi2 heating elements, one is M1700 type,

which ensure max. furnace temperature 1650C; another is M1800 type, which ens

ure max. furnace temperature 1700C. When you place order, please choose suita

ble type according to your furnace working temperature.

M1700 (heat furnace temperature 1650C )

M1800 (heat furnace temperature 1700C)

2.When you place an order of the U Shape Mosi2 Heating Element, please give following information:

Material Grade: M1700/M1800

C: Hot Zone Diameter

D: Cold Zone Diameter

Lu:Cold Zone Length

Le: Hot Zone Length

A:Shank Spacing

If you have the special requirement for the resistance, please tell us!

3.Order Sample of the U Shape Mosi2 Heating Element

U Shape: Material Grade: M1800,
c=3mm,d=6mm,Le=140mm,
LU=125mm,A=25mm
Specify As:3/6×140×125×25

4.Notice to furnace operation

To avoid high current surges which may cause damage to MoSi2 heating elements, the recommend starting procedure

as following:

Small Furnace (Power 100KW)		Big Furnace (Power 100KW-500KW)
Furnace Temperature .C	Voltage	Furnace Temperature .C	Voltage
20-150	1/3	20-300	1/3
150-500	2/3	300-700	2/3
500-Working Temperature	Full	700-working Temperature	Full
Note: Shifting gear must be done quickly, otherwise high current surges may cause damage.
