Product Details
| Place of Origin | Henan, China | Type | Ceramic Parts | |
| Application | Refractory | Material | Zirconia Ceramic | |
| Model Number | B4-SCN-02 | Brand Name | JK |
Product Description
sand blasting ceramic nozzle
Product Overviews of Sand Blasting Ceramic Nozzle
1. Characteristics of Ceramic Nozzle
It is a kind of product with high strength, high hardness, high wear resistance,and good oxidation resistance, thermal shock resistance and other properties.
RSIC has more excellent long-term performance ( Compared with RSIC and N-SiC) the bending strength is more than
twice than RSIC,50% high than N-SiC.
2. Applications of Ceramic Nozzle
The various industrial furnaces, the desulphurization equipment, the large boiers and other machinery , and the ceramics, the machinery ,the metallurgy, the electronics,the chemicals, the petroteum , the iron and steel industry and other fields.
The series of beams are ideal kiln furnitures for sanitary ceramics, household porcelain, building
ceramics, electric porcelain, refractories, etc. They are specially used for load-bearing beams in shuttle kilns, tunnel kilns, roller hearth kilns and other industrial kilns.
3. Main Technology of Ceramic Nozzle
Item
| Unit
| Data | |||
RSiC
| SisiC
| N-SiC
| SSiC | ||
Bulk Density | (g/cm 3 ) | 2.60-2.72 | ≥3.02
| ≥2.75
| 2.95
|
Porosity | % | ≤17 | ≤0.1 | 10 | 0.5 |
Bending Strength (4-point) | MPa(at20℃) | ≥ 90 | ≥250 | 150 | 350 |
MPa(1200℃) | ≥100 | ≥280 | 170 | 450 | |
Thermal Expanssion | 10-6 k-1 | 4.8 | 4.8 | 4.6 | 4.2 |
Thermal conductivity | W/m.k | 23 | 45 | 25 | 90 |
Youngs Modulus | GPa(20℃) | 240 | 320 | 280 | 420 |
Working Temp. | ℃ | 1650 | 1350 | 1450 | 1700 |
4. Parameter of Seramic Nozzle
Chemical Composition SIC >= | 90% | |
Physics property | Max. Service Temp. | 1400ºC |
Refractoriness >= | 39SK | |
| 2kg/cm2 Refractoriness under load T2 >= | 1790ºC
|
| Modulus of Rupturt at room temp >= | 500Kg/cm2 |
Modulus of Rupture at 1400ºC>= | 550Kg/cm2 | |
Compressive strenght >= | 1300Kg/cm2 | |
Thermal Expansion at 1000ºC | 0.42%-0.48% | |
| Apparent Porosity | ≤20% |
Bulk Density | (2.55-2.7)g/cm3 | |
Thermal Conductivity at 1000ºC | (13.5-14.5) Kcal/m.hr.ºC | |

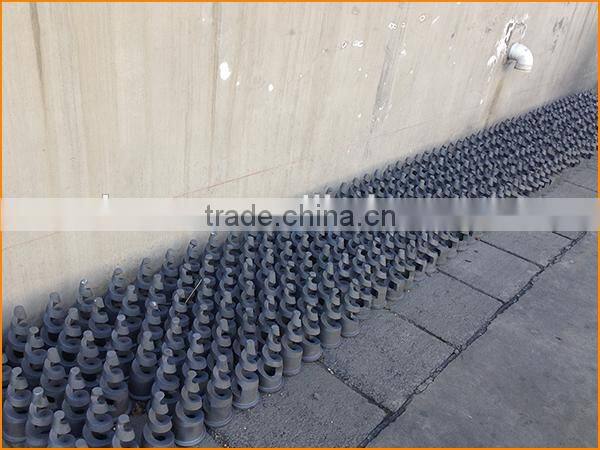

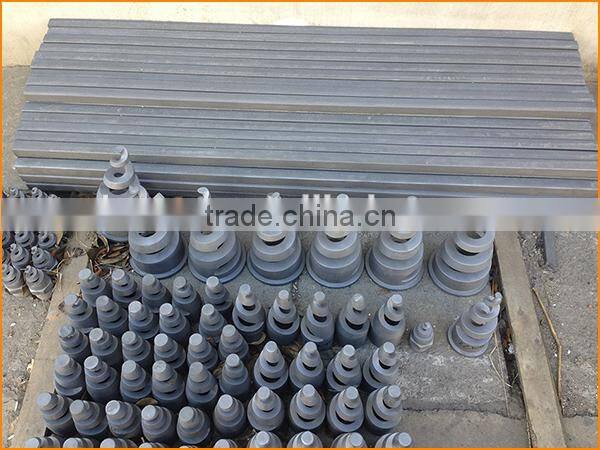

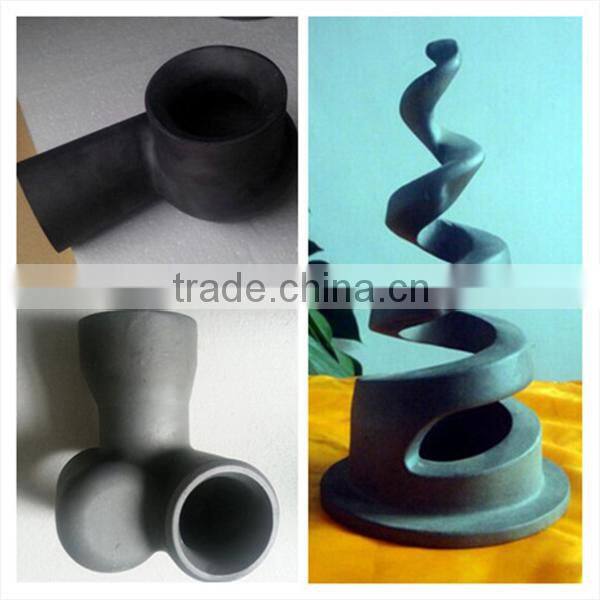

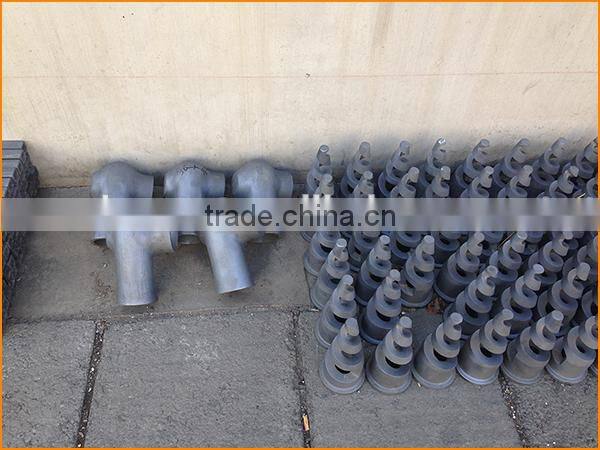

Product Shows of Sand Blasting Ceramic Nozzle

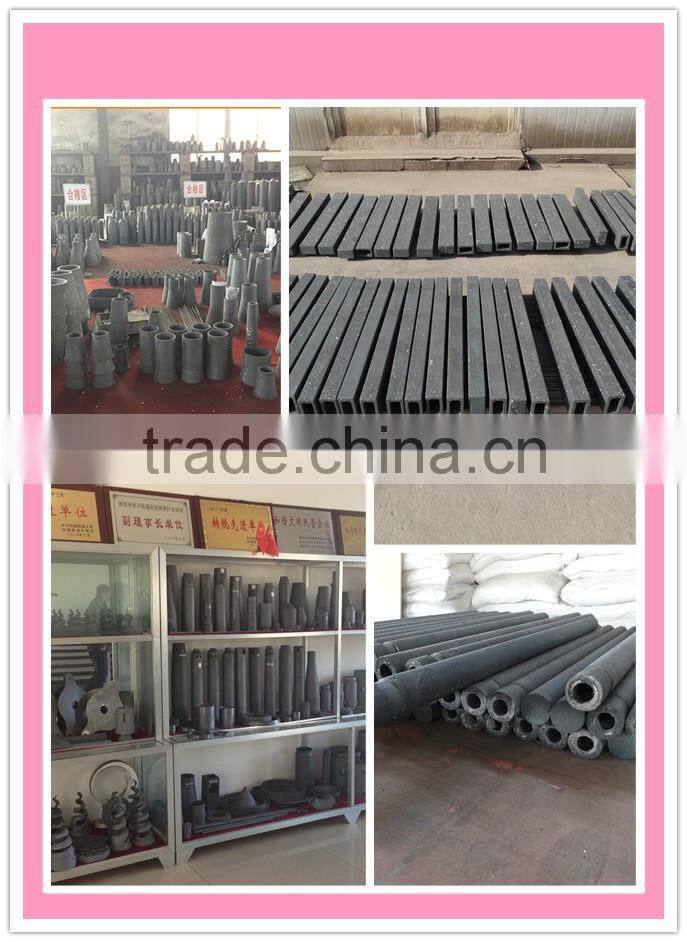

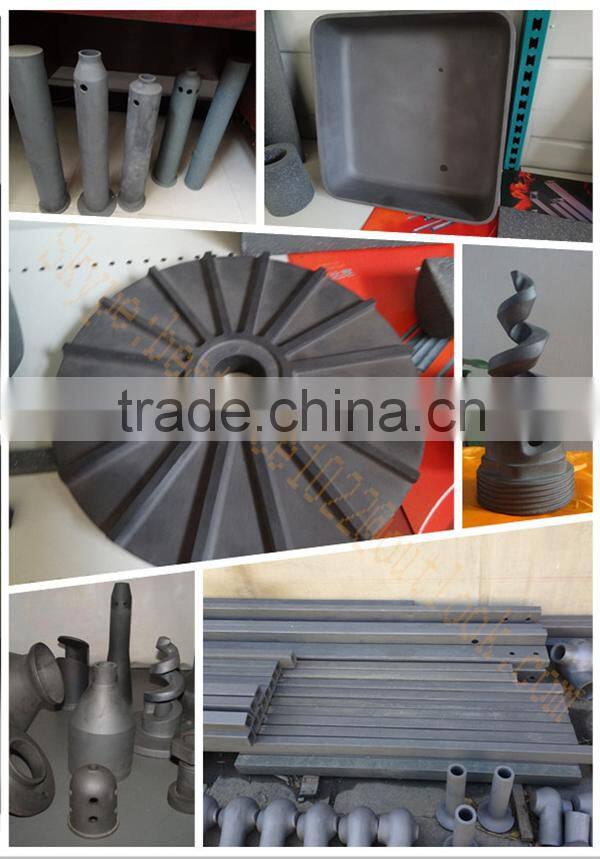

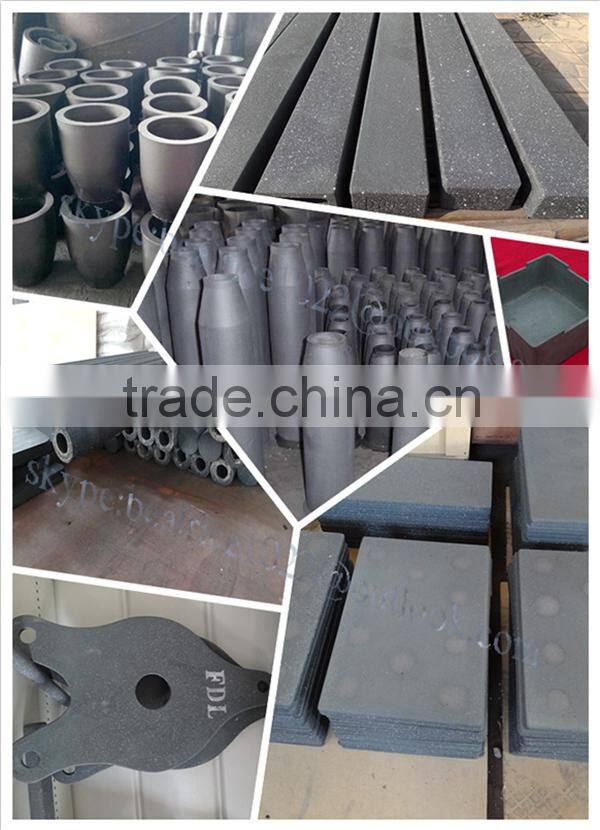

Our All Typies Sic Products
Our Workshop
Packing and Shipping of Sic Spray Nozzle
(1) Packing: standard export packing , wooden case , cartoon case, It will be protect the products well.
(2) Shipping: Fast delivery, in general, it needs 5-15days after payment, and multiple transportation
methodsfor yourchoose, by sea/air/express/by the seller's shipping agaent are OK.
--By DHL/Fedex (Door to door, Home delivery service)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ shipping agent
