Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace thumbnail-1
Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace photo-1
US$ 1.2 - 20.8 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Shape:
Pipe
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Henan JK Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai...etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Shape Pipe
Material Silicon Carbide (SiC)
SiO2 Content (%) ≤1.5%
Al2O3 Content (%) ≤0.8%
MgO Content (%) 0.1-1.2%
CaO Content (%) ≤0.01%
CrO Content (%) 0.1-0.3%
SiC Content (%) ≥85%-99%
Model Number JK-SICQ-T07
Brand Name JK

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace

Product Description

The series of silicon carbide pipes are used under high temperature of roller kilns and industrial furnaces which produce household porcelain, sanitary ceramics, building ceramics and magnetic materials.



Series of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



ü   Reaction Bonded Silicon Carbide (RBSiC)

ü   Recrystallized Silicon Carbide (RSiC)

ü   Silicon infiltrated Silicon Carbide (SiSiC)

ü   Nitride Bonded Silicon Carbide (NSiC)

ü   Sintered Silicon Carbide (SSiC)





Key Properties of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



ü   Low density

ü   Low thermal expansion

ü   High strength

ü   High hardness

ü   High elastic modulus

ü   High thermal conductivity

ü   Excellent thermal shock resistance

ü   Superior chemical inertness





Typical Uses of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



ü   Seals, bearings

ü   Ball valve parts

ü   Heat exchangers

ü   Hot gas flow liners

ü   Suction box covers

ü   Semiconductor process equipment

ü   Fixed and moving turbine components





Technical Parameter of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



Item



Unit



Data

RSiC

RBSiC/SiSiC

N-SiC

SSiC

Bulk Density

(g/cm 3 )

2.60-2.72

≥3.02

≥2.75

2.95

Porosity

%

≤17

≤0.1

10

0.5

Bending Strength

(4-point)

MPa(at20℃)

≥ 90

≥250

150

350

MPa(1200℃)

≥100

≥280

170

450

Thermal

Expanssion

10-6 k-1

4.8

4.8

4.6

4.2

Thermal

conductivity

W/m.k

23

45

25

90

Youngs Modulus

GPa(20℃)

240

320

280

420

Working Temp.

℃

1650

1350

1450

1700

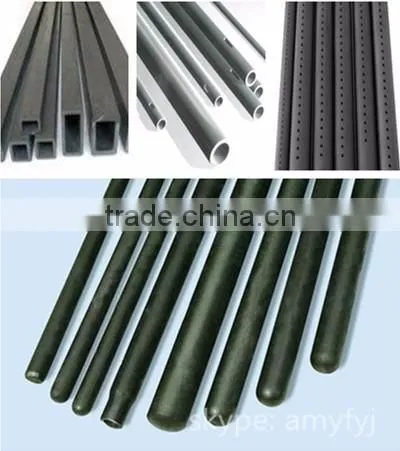

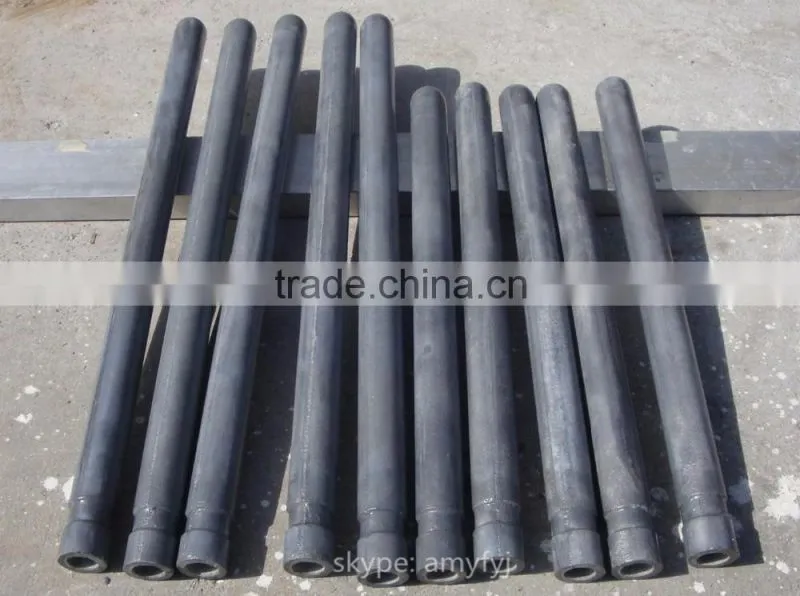

Product Showcase

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace



Packaging & Shipping

Packaging of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



ü   Standard export packing: wooden case and pallet

ü   Customized packing according to customers' request





Shipping of Silicon Carbide SiC Ceramics- silicon carbide ceramic pipe



ü   By express: DHL, UPS, TNT, FedEx, EMS...

ü   By air: shipped to your designated airport

ü   By sea: shipped to your designated seaport

ü   Shipped by customers' designated freight forwarder

Refractory Furnace Reaction Bonded Silicon Carbide Ceramic Pipe SiC Lining Pipes for Furnace


Our Services



ü    Earnestly offer you best quotation in earliest time

ü   Patiently help you out with any queries

ü   Pleased to offer you samples for your test

ü   Appreciate any of your feedback on our products and service

ü   Gladly accept custom made with your drawing

ü   Prefered TT and Western Union payment, others also acceptable

ü   Warmly welcome to visit our factory

We appreciate your cooperation and cherish your friendship.



Should you have any interest in our products, please do not hesitate to contact Amy.
