Silicon Carbide Cooling Air Tubes-PLS

Henan JK Industry Co., Ltd.
Silicon Carbide Cooling Air Tubes-PLS thumbnail-1
Silicon Carbide Cooling Air Tubes-PLS thumbnail-2
Silicon Carbide Cooling Air Tubes-PLS thumbnail-3
Silicon Carbide Cooling Air Tubes-PLS thumbnail-4
Silicon Carbide Cooling Air Tubes-PLS photo-1

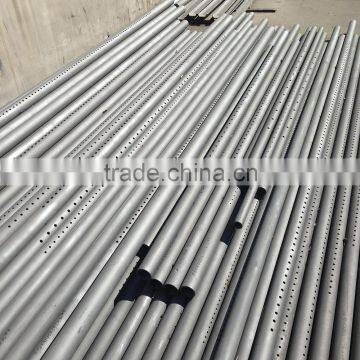

Silicon Carbide Cooling Air Tubes-PLS photo-2

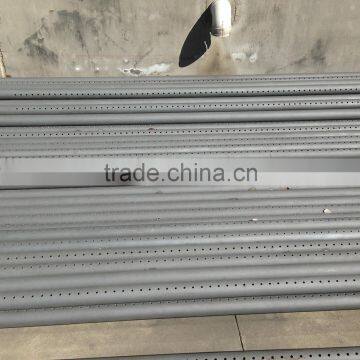

Silicon Carbide Cooling Air Tubes-PLS photo-3
Silicon Carbide Cooling Air Tubes-PLS photo-4
US$ 5 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Shape:
Pipe
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Hongkong Beijing etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Shape Pipe
Material Silicon Carbide (SiC)
SiO2 Content (%) 1.5%
Al2O3 Content (%) <0.8
MgO Content (%) silicon carbide tube
CaO Content (%) silicon carbide tube
CrO Content (%) 0.1~0.3%
SiC Content (%) >98%
Model Number B4-AT-01
Brand Name JK



Silicon Carbide Cooling Air Tubes-PLS



Product Overviews

Silicon carbide cooling air tubes have superior characteristics, such as corrosion Resistance, high temperature tolerance,

oxidation resistance, no dropping slags, superior thermal Conductivity, high bending strength, nondeformation for a long time service, etc .



Silicon carbide cooling air tubes mainly as electrical porcelain, porcelain, such as microcrystalline glass shuttle, auxiliary tunnel kiln ideal cooling parts.



Main Technology of Silicon Carbide Cooling Air Tubes

Item



Unit



Data

RSiC

SiSiC

N-SiC

SSiC

Bulk Density

(g/cm 3 )

2.60-2.72

≥3.02



≥2.75



2.95



Porosity

%

≤17

≤0.1

10

0.5

Bending Strength

(4-point)

MPa(at20℃)

≥ 90

≥250

150

350

MPa(1200℃)

≥100

≥280

170

450

Thermal

Expanssion

10-6 k-1

4.8

4.8

4.6

4.2

Thermal

conductivity

W/m.k

23

45

25

90

Youngs Modulus

GPa(20℃)

240

320

280

420

Working Temp.

℃

1650

1350

1450

1700



Parameter of Silicon Carbide Cooling Air Tubes

Chemical Composition SIC >=

 90%

Physics

property

Max. Service Temp.

1400ºC

Refractoriness >=

39SK

2kg/cm2 Refractoriness under

load T2 >=

1790ºC



Modulus of Rupturt at room

temp >=

500Kg/cm2

Modulus of Rupture at 1400ºC

>=

550Kg/cm2

Compressive strenght >=

1300Kg/cm2

Thermal Expansion at 1000ºC

0.42%-0.48%



Apparent Porosity

≤20%

Bulk Density

(2.55-2.7)g/cm3

Thermal Conductivity at 1000ºC

(13.5-14.5) Kcal/m.hr.ºC





Feature of Silicon Carbide Cooling Air Tubes

  • Excellent thermal stability and distortion resistance at high temperature.
  • High mechanical strength at high temperature
  • Excellent thermal shock resistance.
  • High thermal conductivity.
  • Excellent oxidating resistance.
  • Excellent corrosion resistance at high temperature.
  • Excellent corrosion resistance against chemicals.
  • High abrasion resistance.



product shows

Silicon Carbide Cooling Air Tubes-PLS



Silicon Carbide Cooling Air Tubes-PLS



Silicon Carbide Cooling Air Tubes-PLS



Silicon Carbide Cooling Air Tubes-PLS



Silicon Carbide Cooling Air Tubes-PLS





all typies

Silicon Carbide Cooling Air Tubes-PLS



Workshop

Silicon Carbide Cooling Air Tubes-PLS


Packaging & Shipping

(1) Packing: standard export packing , wooden case , cartoon case,  It will be protect the products well.



(2) Shipping: Fast delivery, in general, it needs 5-15days after payment, and multiple transportation

                      methodsfor yourchoose, by sea/air/express/by the seller's shipping agaent are OK.



 --By DHL/Fedex (Door to door, Home delivery service)



--By Air to your nearest Airport



--By Sea to your nearest Seaport



--By the sellers’ shipping agent
