Home > Products > Silicon Carbide (SiC) Ceramics > Refractory Silicon Carbide Crucible
Refractory Silicon Carbide Crucible
- Shanghai Qingdao Hongkong Beijing etc
- T/T L/C Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Shape | Plate | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | silicon carbide plates | |
| Al2O3 Content (%) | silicon carbide plates | MgO Content (%) | silicon carbide plates | |
| CaO Content (%) | silicon carbide plates | |||
| CrO Content (%) | silicon carbide ceramic plates | SiC Content (%) | >90% | |
| Model Number | B4-SCC-09 | Brand Name | JK |
Product Description

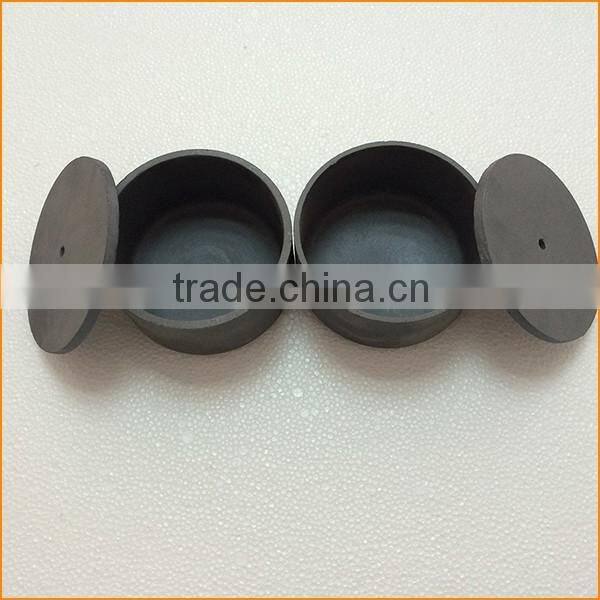

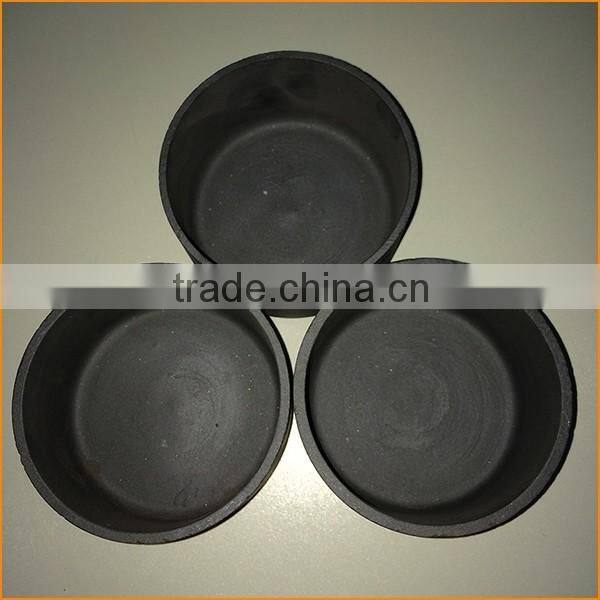

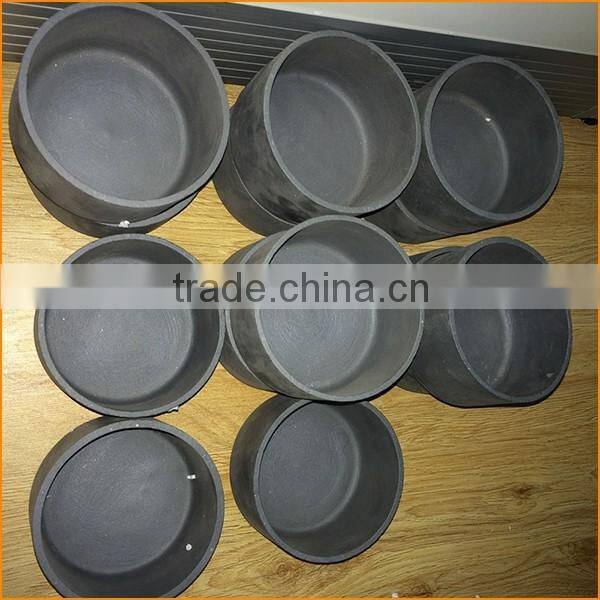

Refractory Silicon Carbide Crucible
Description of silicon carbide crucibles
Silicon carbide crucible have superior characteristics, such as corrosion Resistance, high temperature tolerance, oxidation
resistance, no dropping slags, superior thermal Conductivity, high bending strength, non-deformation for a long time servi
ce, etc .
The series of beams are ideal kiln furnitures for sanitary ceramics, household porcelain, building ceramics, electric porcelain, refractories, etc. They are specially used for load-bearing beams in shuttle kilns, tunnel kilns, roller hearth kilns and othe
r industrial kilns.
Main Technology of silicon carbide crucibles
Item
| Unit
| Data | |||
RSiC | SiSiC | N-SiC | SSiC | ||
Bulk Density | (g/cm 3 ) | 2.60-2.72 | ≥3.02
| ≥2.75
| 2.95
|
Porosity | % | ≤17 | ≤0.1 | 10 | 0.5 |
Bending Strength (4-point) | MPa(at20℃) | ≥ 90 | ≥250 | 150 | 350 |
MPa(1200℃) | ≥100 | ≥280 | 170 | 450 | |
Thermal Expanssion | 10-6 k-1 | 4.8 | 4.8 | 4.6 | 4.2 |
Thermal conductivity | W/m.k | 23 | 45 | 25 | 90 |
Youngs Modulus | GPa(20℃) | 240 | 320 | 280 | 420 |
Working Temp. | ℃ | 1650 | 1350 | 1450 | 1700 |
Parameter of silicon carbide crucibles
Chemical Composition SIC >= | 90% | |
Physics property | Max. Service Temp. | 1400ºC |
Refractoriness >= | 39SK | |
2kg/cm2 Refractoriness under load T2 >= | 1790ºC
| |
Modulus of Rupturt at room temp >= | 500Kg/cm2 | |
Modulus of Rupture at 1400ºC >= | 550Kg/cm2 | |
Compressive strenght >= | 1300Kg/cm2 | |
Thermal Expansion at 1000ºC | 0.42%-0.48% | |
| Apparent Porosity | ≤20% |
Bulk Density | (2.55-2.7)g/cm3 | |
Thermal Conductivity at 1000ºC | (13.5-14.5) Kcal/m.hr.ºC
| |
