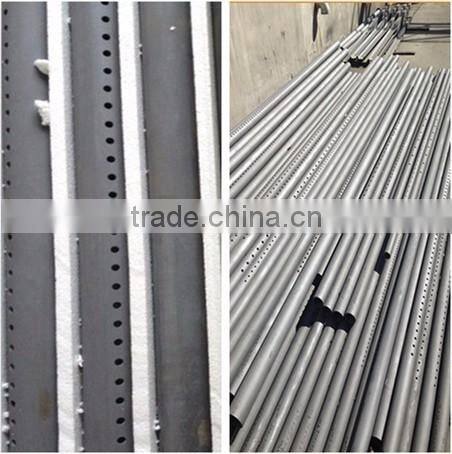

Industrial SiC Ceramics High Temperature Silicon Carbide Tube Used in Kilns
- Qingdao Shanghai...etc
- Money Gram Credit Card PayPal
You May Like
-
Refractory SiC Ceramic Silicon Carbide Cooling Air Tubes for Kilns & Furnaces
-
Refractory Silicon Carbide Cooling Air Tube SiC Cooling Pipe
-
High Temperature RBSiC/SiSiC Tubes Silicon Carbide Cooling Air Pipes From China
-
Industrial Ceramics Silicon Carbide Cooling Pipe Sic Cooling Air Pipes
-
Silicon Carbide Cooling Pipes
-
Silicon Carbide Cooling Air Pipes
Product Details
| Place of Origin | Henan, China | Type | Ceramic Tubes | |
| Application | Industrial Ceramic | Model Number | JK-SICQ-T01 | |
| Brand Name | JK |
Product Description
Industrial SiC Ceramics High Temperature Silicon Carbide Tube Used in Kilns
Series of Silicon Carbide SiC Ceramics- silicon carbide tube
ü Reaction Bonded Silicon Carbide (RBSiC)
ü Recrystallized Silicon Carbide (RSiC)
ü Silicon infiltrated Silicon Carbide (SiSiC)
ü Nitride Bonded Silicon Carbide (NSiC)
ü Sintered Silicon Carbide (SSiC)
Key Properties of Silicon Carbide SiC Ceramics- silicon carbide tube
ü Low density
ü Low thermal expansion
ü High strength
ü High hardness
ü High elastic modulus
ü High thermal conductivity
ü Excellent thermal shock resistance
ü Superior chemical inertness
Typical Uses of Silicon Carbide SiC Ceramics- silicon carbide tube
ü Seals, bearings
ü Ball valve parts
ü Heat exchangers
ü Hot gas flow liners
ü Suction box covers
ü Semiconductor process equipment
ü Fixed and moving turbine components
Technical Parameter of Silicon Carbide SiC Ceramics- silicon carbide tube
Item
| Unit
| Data | |||
RSiC | SiSiC | NSiC | SSiC | ||
Bulk Density | (g/cm 3 ) | 2.60-2.72 | ≥3.02 | ≥2.75 | 2.95 |
Porosity | % | ≤17 | ≤0.1 | 10 | 0.5 |
Bending Strength (4-point) | MPa(at20℃) | ≥ 90 | ≥250 | 150 | 350 |
MPa(1200℃) | ≥100 | ≥280 | 170 | 450 | |
Thermal Expanssion | 10-6 k-1 | 4.8 | 4.8 | 4.6 | 4.2 |
Thermal conductivity | W/m.k | 23 | 45 | 25 | 90 |
Youngs Modulus | GPa(20℃) | 240 | 320 | 280 | 420 |
Working Temp. | ℃ | 1650 | 1350 | 1450 | 1700 |
Packaging of Silicon Carbide SiC Ceramics- silicon carbide tube
ü Standard export packing: wooden case and pallet
ü Customized packing according to customers' request
Shipping of Silicon Carbide SiC Ceramics- silicon carbide tube
ü By express: DHL, UPS, TNT, FedEx, EMS...
ü By air: shipped to your designated airport
ü By sea: shipped to your designated seaport
ü Shipped by customers' designated freight forwarder
ü Earnestly offer you best quotation in earliest time
ü Patiently help you out with any queries
ü Pleased to offer you samples for your test
ü Appreciate any of your feedback on our products and service
ü Gladly accept custom made with your drawing
ü Prefered TT and Western Union payment, others also acceptable
ü Warmly welcome to visit our factory
We appreciate your cooperation and cherish your friendship.
Should you have any interest in our products, please do not hesitate to contact me.
