Silicon Carbide Cooling Pipes
- Shanghai Qingdao Hongkong Beijing etc
- T/T L/C Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | 1.5% | |
| Al2O3 Content (%) | <0.8 | MgO Content (%) | silicon carbide tube | |
| CaO Content (%) | silicon carbide tube | |||
| CrO Content (%) | 0.1~0.3% | SiC Content (%) | >98% | |
| Model Number | B4-AT-03 | Brand Name | JK |
Product Description

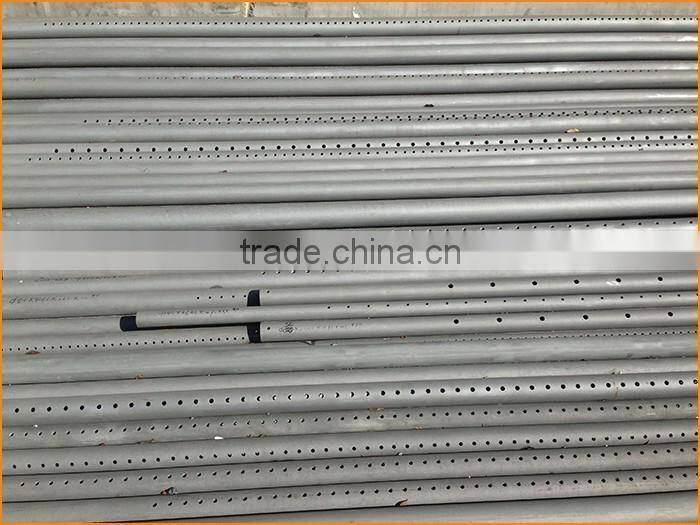

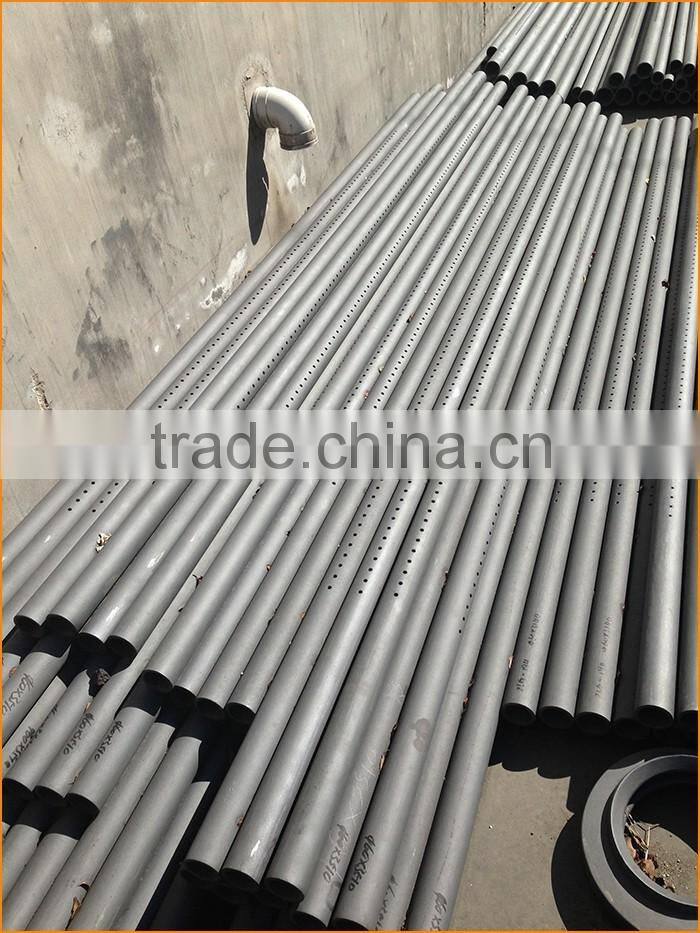

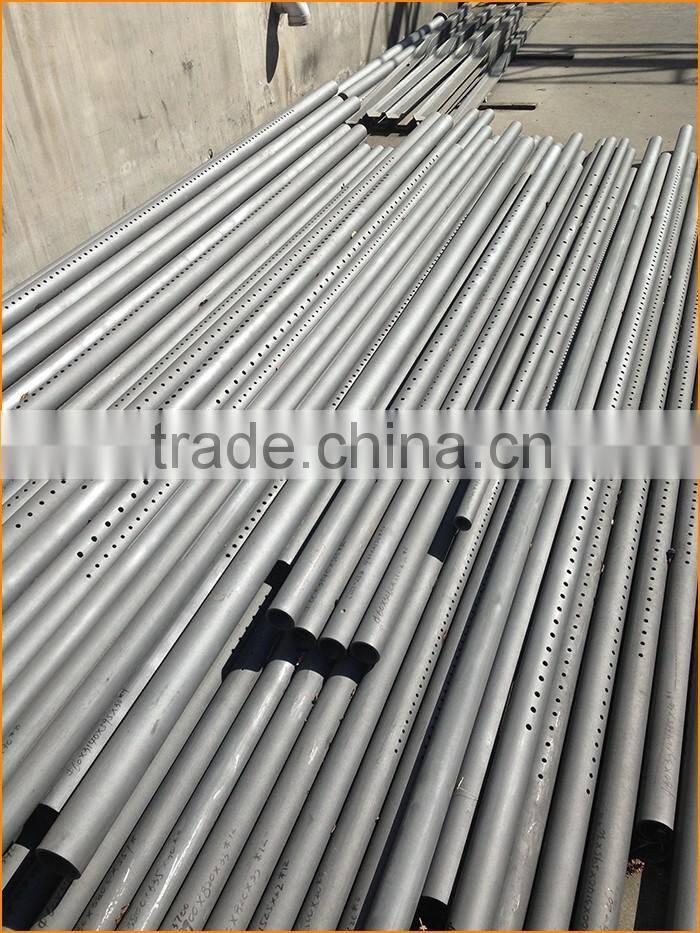

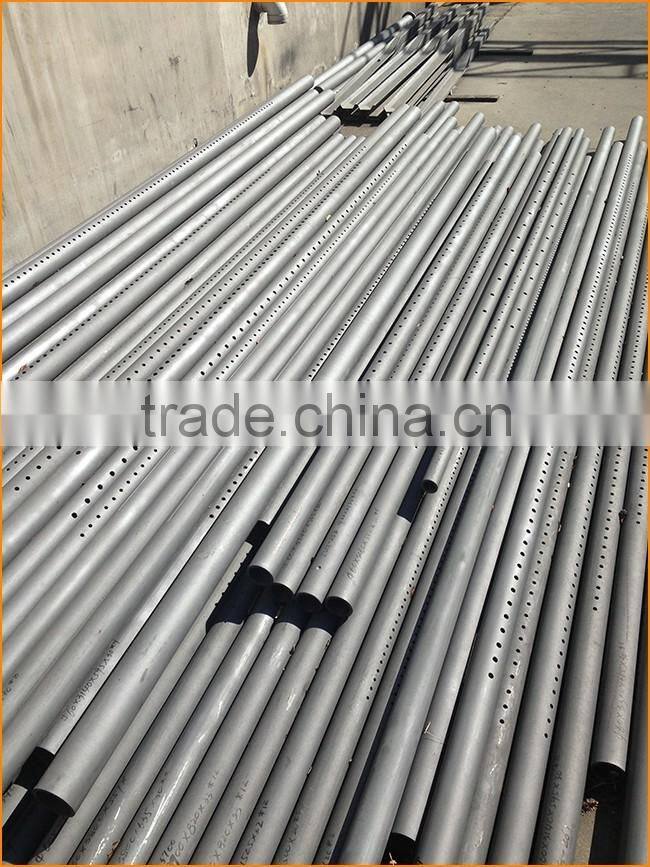

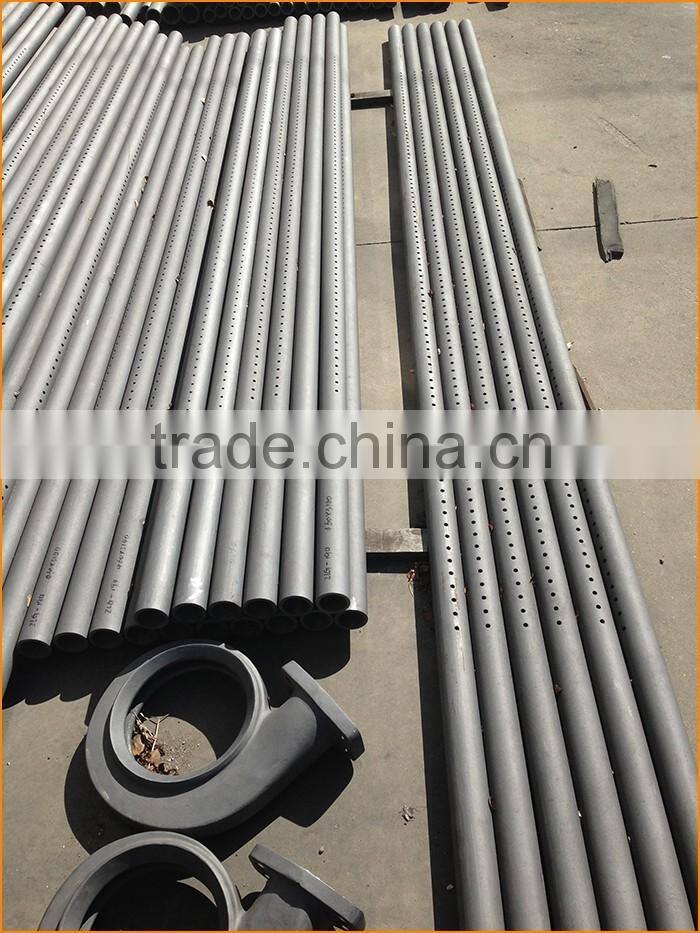

Silicon Carbide Cooling Pipes
Silicon carbide cooling pipes have superior characteristics, such as corrosion Resistance, high temperature tolerance,
oxidation resistance, no dropping slags, superior thermal Conductivity, high bending strength, nondeformation for a long time service, etc .
Silicon carbide cooling air tubes mainly as electrical porcelain, porcelain, such as microcrystalline glass shuttle, auxiliary tunnel kiln ideal cooling parts.
Main Technology of Silicon Carbide Cooling Pipes
Item
| Unit
| Data | |||
RSiC | SiSiC | N-SiC | SSiC | ||
Bulk Density | (g/cm 3 ) | 2.60-2.72 | ≥3.02
| ≥2.75
| 2.95
|
Porosity | % | ≤17 | ≤0.1 | 10 | 0.5 |
Bending Strength (4-point) | MPa(at20℃) | ≥ 90 | ≥250 | 150 | 350 |
MPa(1200℃) | ≥100 | ≥280 | 170 | 450 | |
Thermal Expanssion | 10-6 k-1 | 4.8 | 4.8 | 4.6 | 4.2 |
Thermal conductivity | W/m.k | 23 | 45 | 25 | 90 |
Youngs Modulus | GPa(20℃) | 240 | 320 | 280 | 420 |
Working Temp. | ℃ | 1650 | 1350 | 1450 | 1700 |
Parameter of Silicon Carbide Cooling Air Tubes
Chemical Composition SIC >= | 90% | |
Physics property | Max. Service Temp. | 1400ºC |
Refractoriness >= | 39SK | |
2kg/cm2 Refractoriness under load T2 >= | 1790ºC
| |
Modulus of Rupturt at room temp >= | 500Kg/cm2 | |
Modulus of Rupture at 1400ºC >= | 550Kg/cm2 | |
Compressive strenght >= | 1300Kg/cm2 | |
Thermal Expansion at 1000ºC | 0.42%-0.48% | |
| Apparent Porosity | ≤20% |
Bulk Density | (2.55-2.7)g/cm3 | |
Thermal Conductivity at 1000ºC | (13.5-14.5) Kcal/m.hr.ºC
| |
Feature of Silicon Carbide Cooling Pipes
- Excellent thermal stability and distortion resistance at high temperature.
- High mechanical strength at high temperature
- Excellent thermal shock resistance.
- High thermal conductivity.
- Excellent oxidating resistance.
- Excellent corrosion resistance at high temperature.
- Excellent corrosion resistance against chemicals.
- High abrasion resistance.
(1) Packing: standard export packing , wooden case , cartoon case, It will be protect the products well.
(2) Shipping: Fast delivery, in general, it needs 5-15days after payment, and multiple transportation
methodsfor yourchoose, by sea/air/express/by the seller's shipping agaent are OK.
--By DHL/Fedex (Door to door, Home delivery service)
--By Air to your nearest Airport
--By Sea to your nearest Seaport
--By the sellers’ shipping agent
