Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > PMAC735 Modbus Rs485 Promotional Power Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC735
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PMAC615 Digital Panel Meter, Digital Power Meter, RS485 Energy MeterNegotiableMOQ: 8 Units -
PMAC615 LED Digital Ammeter, Digital Voltmeter, Digital KWh MeterNegotiableMOQ: 8 Units
-
PMAC600D RS485 Voltage/Current MeterNegotiableMOQ: 8 Units
-
PMAC600C Digital Current/ Voltage Meter RS485NegotiableMOQ: 8 Units
-
PMAC600E Digital Voltage/ Ampere Meter, Current Meter, Volts MeterNegotiableMOQ: 8 Units
Place of Origin
Guangdong, China
Brand Name
PILOT
Model Number
PMAC735
Display Type
Digital Only
Phase
Three Phase
Measuring Energy Range
Measuring Current Range:0~50,000A; Measuring Voltage Range:0~500 KV
Accuracy Class
0.2
Operating Temperature
-20~ 70℃

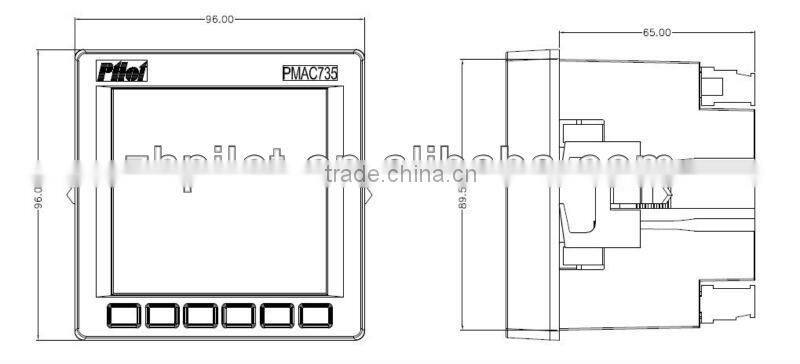

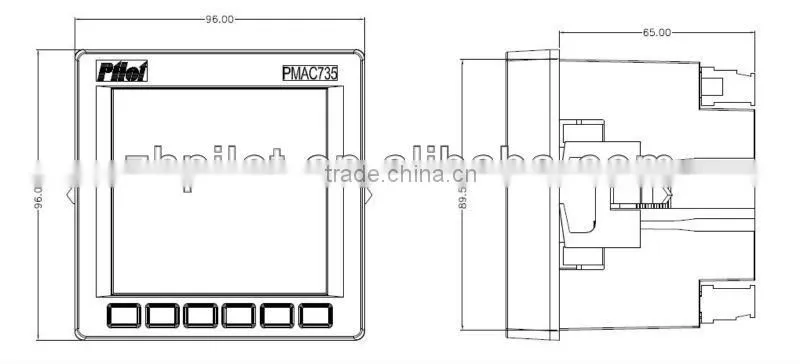

Dimensions
96x96mm
Specifications
1. modbus Power Analyser:current, voltage, power, kWh/kvarh, harmonic, temperature2. record daily/ monthly kWh data

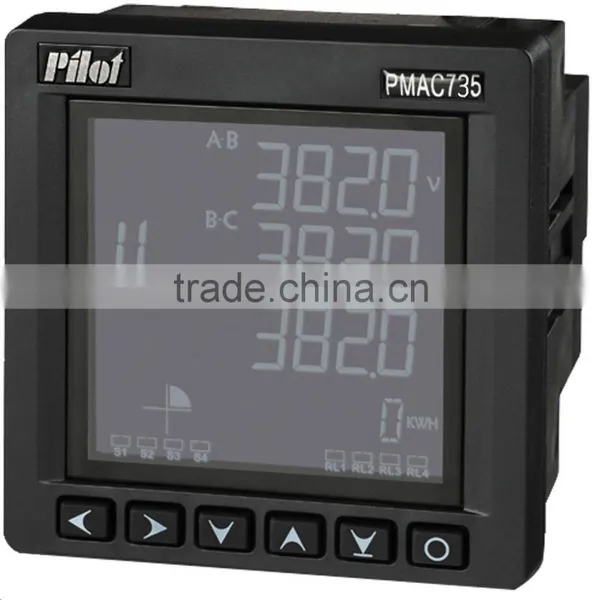

PMAC735 modbus rs485 promotional power meter detailed description:
1. Up to 31st harmonic measuring
2. External CT and PT programmable
3. Direct connect to 600V voltage system
4. Accuracy of energy is class 1, accordance with IEC62053
5. Accuracy of current and voltage is 0.1%
6. THD power quality analysis
7. Statistic and save real-time max./min. value, daily average value, total energy, daily energy , monthly energy.
8. Freeze real-time value hourly
9. Record out-of-limit value with time stamp, and statistic the daily frequency
10. Phase failure alarm, record the failure with time stamp
11. One input for temperature measuring, from 0 - +150
12. Large LCD screen, high brightness
13. Pluggable terminals, easy to install
EMC
Electrostatic discharge immunity test IEC 61000-4-2,Level 4
Radiated immunity test IEC 61000-4-3,Level 3
Electrical fast transients test IEC 61000-4-4,Level 4
Surge test IEC 61000-4-5,Level 3
Conducted emission test EN 55022,Class B
Radiated emission test EN 55022,Class B
