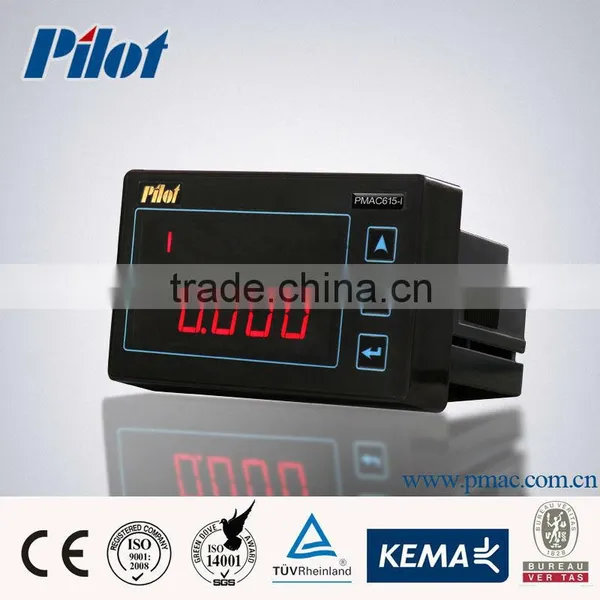

PMAC615 Digital Panel Meter, Digital Power Meter, RS485 Energy Meter
- Zhuhai
- T/T Money Gram
You May Like
-
PMAC615 LED Digital Ammeter, Digital Voltmeter, Digital KWh Meter
-
PMAC600D RS485 Voltage/Current Meter
-
PMAC600C Digital Current/ Voltage Meter RS485
-
PMAC600E Digital Voltage/ Ampere Meter, Current Meter, Volts Meter
-
PMAC600E Single Phase AC Digital Ammeter/ Voltage Meter / Current Meter / Volts Meter
-
PMAC625 Digital Active Panel Meter
Product Details
| Place of Origin | Guangdong, China | Brand Name | PILOT | |
| Model Number | PMAC615-I | Measuring Current Range | 0~49,999A | |
| Measuring Voltage Range | 0~99,999,999.9V | Accuracy Class | 0.2% | |
| Operating Temperature | -20~55 centi-degree | Dimensions | 110 x 65mm |
Product Description
Specifications
PMAC615 panel meter,measure current, voltage, active power,
provide digital input/ relay output,
RS485/Modbus-RS485
The PMAC615 single phase digital laser panel line monitor are suit for 220V (L-N)/ 380V (L-L) low voltage system. Devices offer one RS485 serial to link with PLC, PCs, and SCADA system etc.
Applications include control panels, low voltage switchboard, energy management system, and power quality analysis etc.
Feature:
*Combination of remote signaling, remote control, remote metering and remote sensing
*Compact design with full measurement
*Communication RS485 Modbus
*Power supply: 85~265VAC, or 80~300VDC
*Programmable CT (1 ~ 9,999)
*Optional digital input, relay alarm output
*Simulate OLED display, high definition and high brightness
* Panel size: 110 x 65mm
Installation dimension: 90.5 x 45mm, depth: 55mm
Metering
Voltage, current, active power
Auxiliary function:
Two Status Inputs
One Relay Alarm Outputs
One RS485 COM/Modbus
