Product Details
Place of Origin: | Guangdong, China | Brand Name: | PILOT | Model Number: | PMAC600D |
Display Type: | Digital Only | Accuracy Class: | 0.5 | Supply Voltage: | 220V |
Operating Temperature: | -40℃~ +70℃ | Dimensions: | 65*65mm |
Product Description
Specifications
RS485 Voltage/Current meter1. Accuracy 0.5
2.dimension: 65*65mm]
3. Measure and display: voltage and current,RS485
PMAC600D three phase Voltage meter
Specifications
PMAC600D three phase ammeter, ampere meter, current meter, small and suit for
220V/380V low voltage system, providing optional function of one RS485 communication port.
Installation size: 65mm x 65mm.
Feature:
1. Measure three-phase AC current
2. LED display for local data check
3. CT could be program
4. Support MODBUS protocol
5. power supply: 85~265Vac/80~300Vdc
6. Accuracy: 0.5
7: Baud rate: 4800/9600 bps
8: Communication protocol: RS485 port/ MODBUS protocol
9: Key press for easy operation

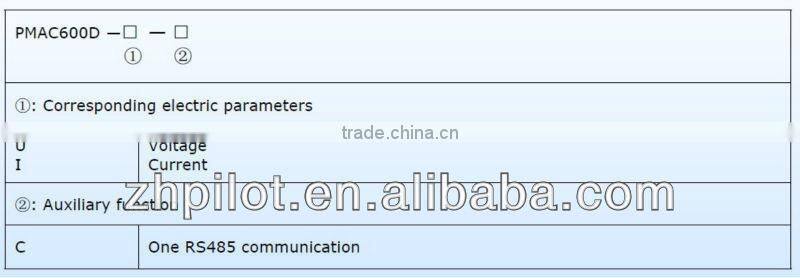

Order information:
PMAC600D-I (input current default 5A, pls kindly advise if any special needed.)
