PILOT PLST Three Phase Solar Pump Inverter With MPPT,VDF

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Zhuhai port
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Pilot
Model Number	PLST		Application	Solar System Controller

Product Description

PILOT PLST Three Phase Solar Pump Inverter with MPPT,VDF

Save Money on Irrigation Ponds system Swimming pool Water Drinking water in Desert

Feature

1. Three phase AC solar pump off-grid inverter is designed to converter DC (direct current) from Solar panel into AC (alternative current) to drive the pump.

2. Inbuild MPPT + VFD (Variable Frequency Drive) to improve AC pump's efficiency and protect AC pump

3. Large HMI graphic display interface for monitoring, setting .

4 keys for easy operation 4. Dry running protection and self-restart function

5. Waterproof and dustproof level up to IP54

6. Reliable for terrible environment, operate temperature -20°C ~ +60°C

Technical information

Parameter/Model		PLST13-1K5	PLST13-2K2	PLST13-3K	PLST13-4K	PLST13-5K5
Input
Power (W)		1500	2200	3000	4000	5500
DC	Voltage (Vdc)	Rated: DC 700±50V;
	Voltage (Vdc)	Range: DC540~650V, Max. voltage input < 850V
	Current (A)dc	4.6	6.6	10.2	10.8	15.6
AC	Voltage (Vac)	Rated: three phase 380V~480V; 50/60Hz
	Voltage (Vac)	Range: three phase 323V~528V; Voltage unbalance rate: ≤3% ; Allowed frequency fluctuation: ±5%
	Current (Aac)	4.2	6.1	9.4	9.9	14.3
Output
Power		1500	2200	3000	4000	5500
Voltage range (Vac)		0-380	0-380	0-380	0-380	0-380
Rated Current (A)		3.8	5.5	8.5	9	13
Overload		1 mintue for 150% overload; 10 seconds for 180% overload; 0.5 second for 200% overload
Frequency (Hz)		0-300	0-300	0-300	0-300	0-300
Phase		Three	Three	Three	Three	Three
Protection
Anti dry-running		√	√	√	√	√
Water level control		√	√	√	√	√
Mechanical
Dimension(mm)		450x330x255	450x330x255	450x330x255	450x330x255	450x330x255
HMI		5 inch	5 inch	5 inch	5 inch	5 inch
IP Degree		IP54	IP54	IP54	IP54	IP54
Operate temperature		-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
cooling-down method		forced-air-cooling
Basic Function
Monitoring		√	√	√	√	√

Dimension

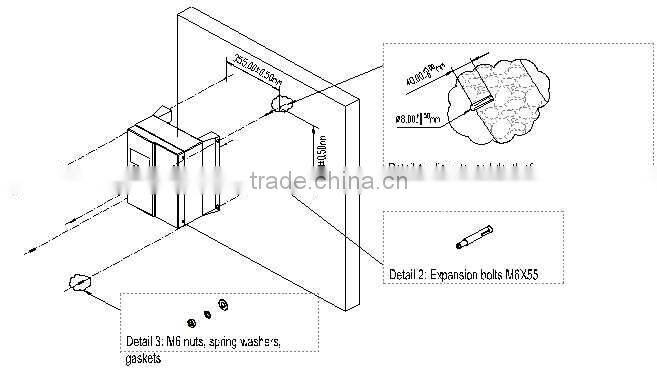

Installation

5 inch HMI design

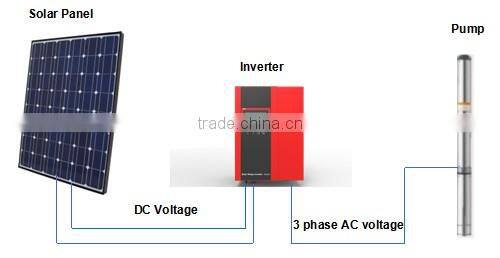

Typical Connection

Application
