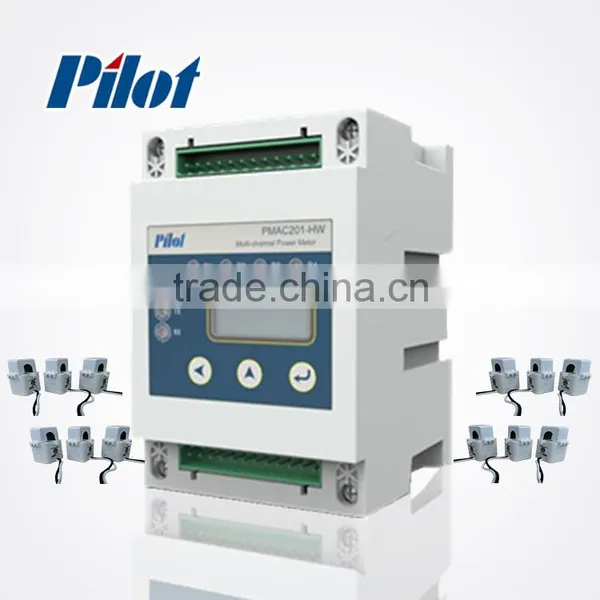

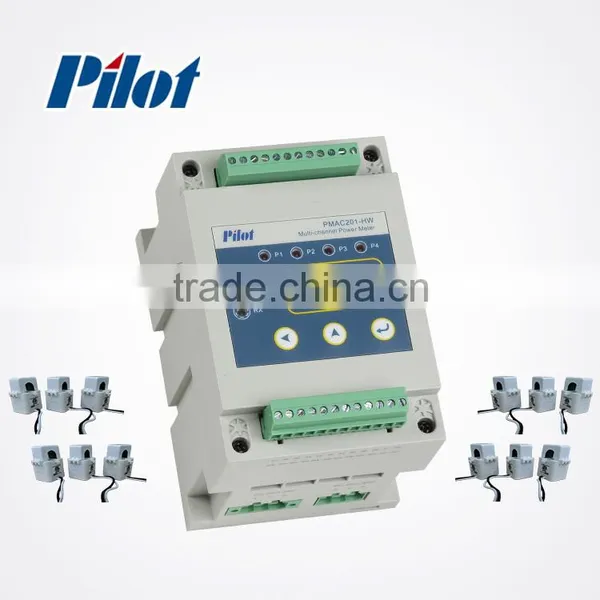

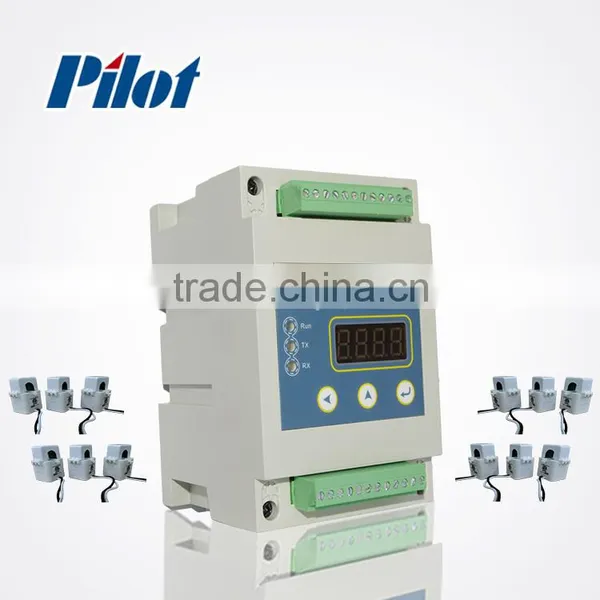

PILOT PMAC201HW 4*3 Phase Energy Monitor

PILOT PMAC201-HW 4*3 phase energy monitor

Features

1. Suit for voltage under 330V (L-N)/570V(L-L) (direct)

2. Used for 4*3 phase or 12*1 phase circuit AC measuring

3. Auto-distinguish mix connection of three phase and single phase

4. different circuit can be set to different current

5. Ture-RMS measuring parameter for U, I, P, Q, S, PF, F, kWh(Imp. & Exp.), kvarh (Imp. & Exp.), Demand, Max./Min. value (P)

6.  TOU, 4 tariffs, 8 time period in 24 hours

7.  Memory data per 15 min., Max. Memory 40days data

8.  Record SOE (Event log) and modify setting event

9.  Support 100mA rated current input, CT primary up to 5000A

10. LED light for pulse output, Run and communication

11. Din Rail Mounted, Provide MODBUS communication protocol.

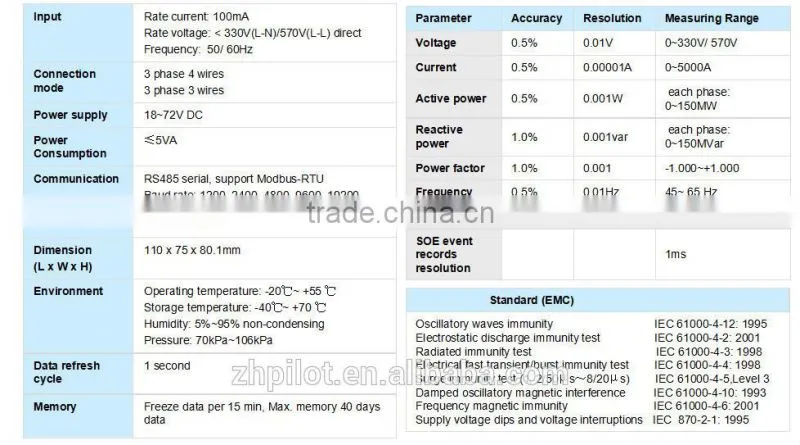

Technical specification

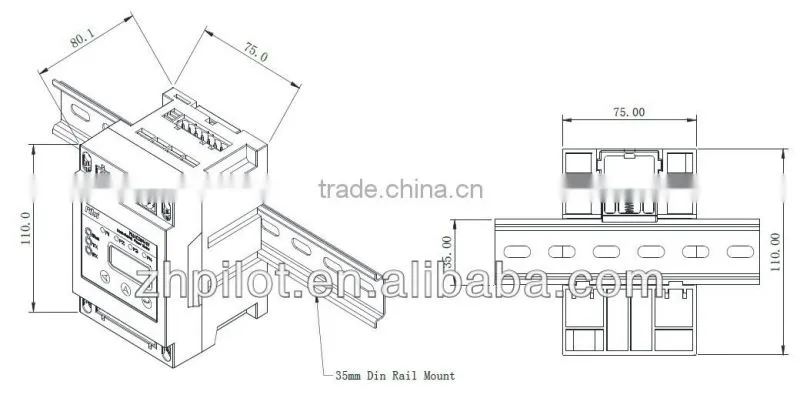

Dimension

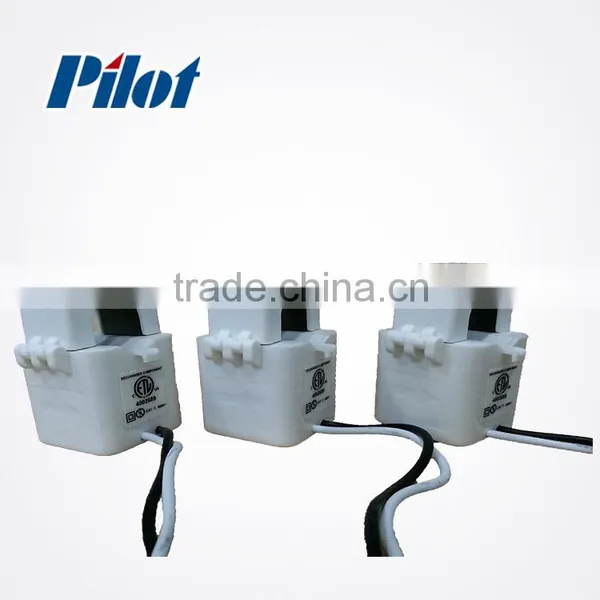

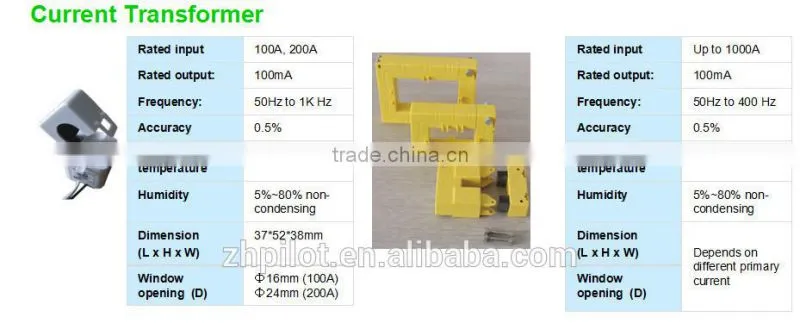

Current transformer

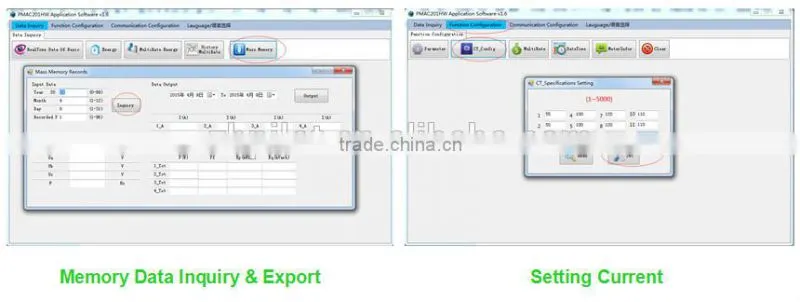

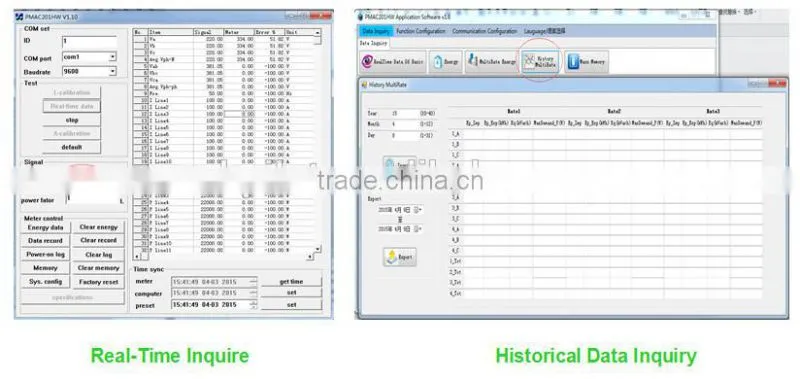

Testing software for free

Power supply converter

Dimension

Typical application

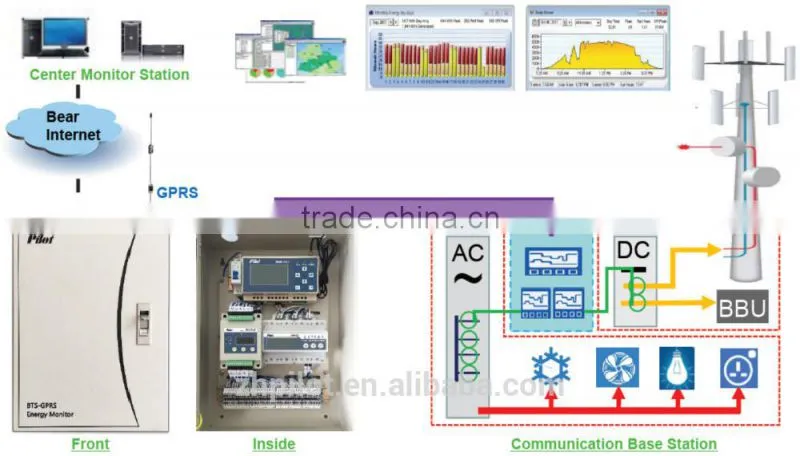

1. In Telecommunication BTS

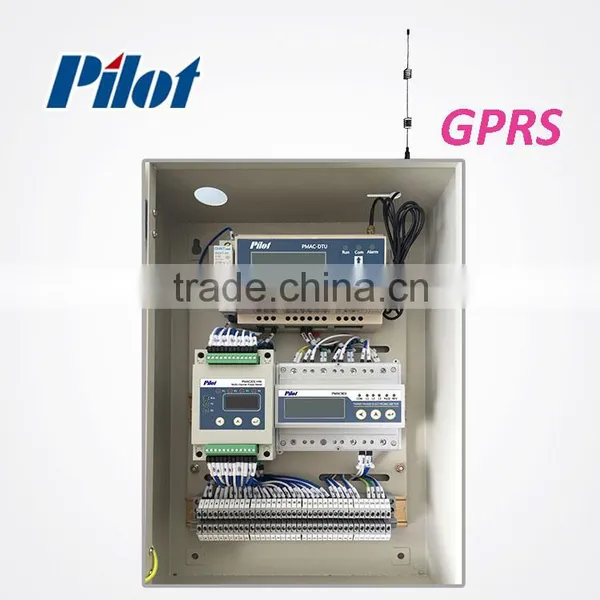

2. BTS Monitor BOX

http://zhpilot.en.china.cn/product/60294092369-215314014/PBTS_Telecommunication_station_BTS_Energy_Management_System.html

2. In Smart Building system

     1 PMAC201HW = 12 single phase energy meter = 4 three phase energy meter  !!!

1.  For 42 Channel Energy Meter (AC & DC)

http://zhpilot.en.china.cn/product/1642420081-215314014/PMAC202_Multi_Channel_Energy_Meter_for_Data_Center_solution.html

SPM91 DIN Rail single phase energy meter

http://zhpilot.en.china.cn/product/60126199720-50323645/SPM91_modbus_single_phase_smart_energy_meter.html

Intelligent PDU

http://zhpilot.en.china.cn/product/60147550994-215314014/IPDU_for_Data_Center.html

For all the products we provide testing software for free!!!

We also provide three phase/ single phase energy meter with historical record, Multi-tariff....pls contact us.
