Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt

Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt thumbnail-1
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt thumbnail-2
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt thumbnail-3
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt thumbnail-4
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt thumbnail-5
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt photo-1
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt photo-2

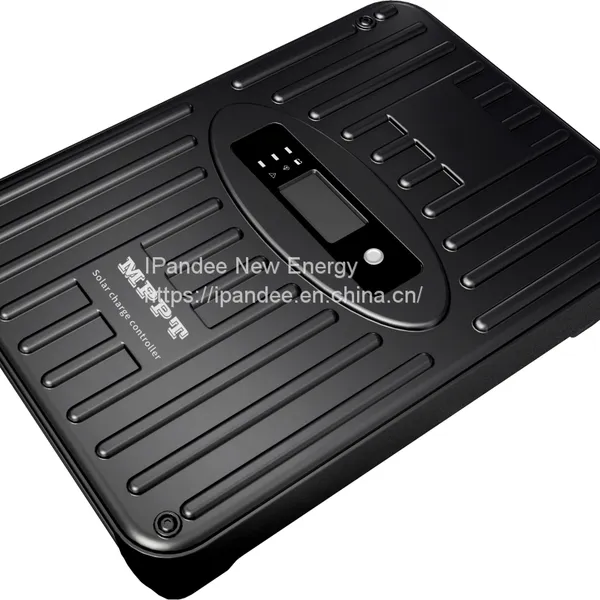

Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt photo-3
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt photo-4
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt photo-5
US$ 50 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
IPANDA
Place of Origin:
China
Model Number:
60A
Contact Supplier Request Quote Chat Now
IPandee New Energy
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name IPANDA
Place of Origin China
Model Number 60A
Application Charger Controller
Rated Voltage 48V
Maximum Current 60a
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt
Explorer-NS series
NS24L30
NS24L40
NS24H50
NS24H60
Product Category
MPPT efficiency
99.5%
Standby power
1W-1.8W
Heat-Dissipating method
All aluminum alloy shell self-heating
Battery system
12V System: 9VDC-15VDC
 24V System: 18VDC-30VDC
Settable lithium-ion battery system
8VDC-30VDC
Input characteristics
Max.PV input voltage(Voc)
100VDC
150VDC
Min.Vmpp Voltage
Battery voltage + 2V
start charging voltage
Battery voltage + 3V
Start-up charging voltage
Battery voltage + 2V
Low input voltage protection
100VDC/95VDC
150VDC/145VDC
Rated input
12V Lead acid battery system
420W
560W
700W
840W
24V Lead acid battery system
840W
1120W
1400W
1680W
Lithium-ion battery system
432W-864W
576W-1152W
720W-1440W
864W-1728W
Charging characteristics
Activation for lithium battery
Standard
Battery types
Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER)AGM, LiFePO4 (4 Strings / 7 Strings /8 strings)Ternary lithium battery (3
Strings /6 strings /7 strings) , Custom lithium ion battery (Lit)
Rated charge current
30A
40A
50A
60A
Temperature compensation
-3mV/­°C/2V
Charge method
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
Output voltage stability accuracy
≤±0.2V
Load characteristics
Load voltage
Same as battery voltage
Rated load current
20A
30A
Load control mode
On/Off, PV voltage control mode, Dual-time control mode, PV + Time control mode
Low voltage protection
Settable
Setting method
PC software / APP / Controller
Display & Communication
Display
Blue OLED display
Communication
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring
Other properties
Protections
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc.
Operating ambient temperature
-20℃~+50°
Storage temperature
40℃~+75°℃
IP(Ingress protection)
IP21
Altitude
0-3000m
Max. connection size
28mm²
Recommended breaker
≥63A
≥63A
≥100A
≥100A
Net Weight/Gross Weight (kg)
1.5/1.9
2.2/2.6
Product size /Packing size (mm)
220x148x64/275x176x70
245x170x69/300x198x75
Ipandee Africa Customization Off Grid 60A Max Charger Auto 12V Regulator Mppt Solar Charga Controller 24V Mppt
