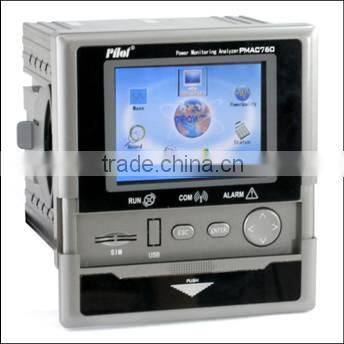

Power Quality Analyzer; Ethernet Power Meter; TCP/IP Quality Choice
USD $580 - $680
/ Piece
2 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Zhuhai
- T/T Credit Card
You May Like
-
Programmable Power AMC72L-DV/C One Circuit DC Voltage LCD Display Output 4~20mA DC Power Energy Meter Voltmeter Current Meter
-
Acrel AMC72L-DV/C DC Digital Voltage Voltmeter 2-channel DI&2-channel DO CE Certificates 4~20mA DC Single Phase Digital Energy
-
AMC Series Programmable Power Meter AMC72L-DV Communication RS485 Output 4~20mA DC CE Certificates Single Phase Digital Energy
-
DC Digital Voltmeter AMC72L-DV/C LCD Display 1-circuit Voltmeter Panel Display 0.5 Accuracy RS485 Port With Modbus-RTU
-
Acrel AMC72L-DV/C DC Digital Voltmeter 1-circuit DC Voltage 85~265V AC/DC Low&High Current Alarm Single Phase Digital Meter
-
DC Digital Voltmeter AMC72L-DV/C CE Certificates RS485 Port With Modbus-RTU 1-circuit Electrical Voltage Meter For Selling
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Pilot | Model Number: | PMAC760 |
| Measuring Current Range: | 0~49,999A | Measuring Voltage Range: | 0~50,000V | Accuracy Class: | 0.2% |
| Operating Temperature: | -20~+60 Degree | Dimensions: | 96 x 96mm |
Product Description

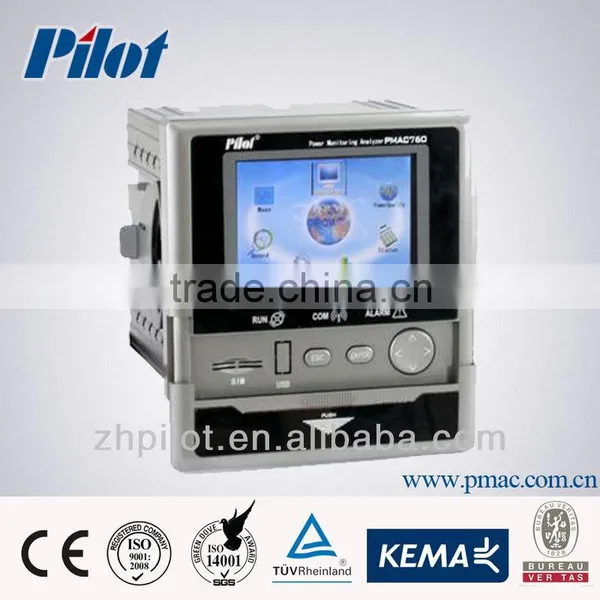

PMAC760 Power Quality Analyzer, Ethernet Power Meter with following features:
PMAC760 is designed for monitoring and displaying electric parameters include Current, Voltage, Active/ Reactive/ Apparent power, Power factor, Frequency, Active/ Reactive energy. This also includes basic alarm on over/ under current or voltage, unbalance, demand based load shedding, and capacitor power factor correction control. All monitored values are available via two digital RS485 communication ports running the Modbus protocol. If Analog values are required for direct interface to PLC, any of the monitored values can be output to one of 4 isolated analog outputs. A process variable can be measured using an analog input. A front panel RS232 communication ports can be connected to PC for simultaneous access of information by other plant personnel.
Features:
- Realtime parameters measuring
- Two-way/ four-quadrant energy display
- 4DI/ 4DO
- Power quality analysis harmonics: voltage devisation, voltage fluctuate, and frequency deviation
- Setpoints protection system
- Max./ Min. value record
- Statistics of demand
- Error wave record
- Vector graph and diagram display
- SOE event record
- Support RS485, Ethernet,
PMAC760 Modbus-TCP/IP Power Quality Analyzer
ØSuit for LV/ HV voltage system
ØTrue-RMS measuring parameters
ØPower quality analysis, over limit alarm
ØIntegrated measure, analyze, control and protect function
ØUse DSP chip to process voltage and current signal
ØGraphical data, easy and clearly for reading
ØLarge and color LCD, high brightness
Ø10 years back-up of integrated energy data
ØHigh accuracy, V or I is 0.2%, kWh is class 1
ØPanel size: 126.7 x 126.7mm
ØPassword protect
ØStandard: IEC62053-21/ 23, CE
Basic Function | ||
Real time metering | Voltage | Ua, Ub, Uc, Uab, Ubc, Uca, UL-L avg, UL-N avg |
Current | Ia, Ib, Ic, In, Iavg | |
Power | Pa, Pb, Pc, ∑P, Qa, Qb, Qc, ∑Q, Sa, Sb,Sc, ∑S | |
Power factor | PFa, PFb, PFc, ∑PF | |
Energy | kWh and kvarh (4 quadrant), kVAh | |
Max./ Min. value | Max._U, Max._I, Max._P, Max._Q Min._U, Min._I, Min._P, Min._Q | |
Demand | Dmd_I, Dmd_P, Dmd_Q ,Dmd_S | |
Phase angle |
| |
Frequency | F | |
Power quality analysis | Voltage fluctuate | |
Voltage deviation | ||
Frequency deviation | ||
Unbalance | U_unbl, I_unbl | |
Harmonic | THDu, THDi, TOHDu, TOHDi, TEHDu, TEHDi 2nd-31st harmonic (display), 32nd -63rd harmonic (COM) | |
Setpoint alarm | Over/ under limit alarm | |
DI/ DO | 4 status input + 4 relay output | |
RS485 | Modbus-RTU protocol | |
SOE and Clock | Event log and real time clock | |
Optional Function | ||
Ethernet | Ethernet communication port, 10M, UDP/ TCP Server/ TCP Client | |
USB | USB 2.0 communication port | |
Accuracy:
| Parameter | Accuracy |
| Voltage | 0.2% |
| Current | 0.2% |
| Power | 0.5% |
| Power factor | 0.5% |
| Frequency | 0.01 |
| Active energy | 1.0% |
| Reactive energy | 2.0% |
| 2-63rd harmonic | 1.0% |
