Cheap Textile Parts Alumina Ceramic Textile Eyelet
- Shanghai Beijing Qingdao Lianyungang
- T/T L/C Money Gram Credit Card
You May Like
-
Wire Guide 99% Textile Eyelet Pink
-
High Thermal Conductivity Al2O3 Alumina Ceramic Thermocouple Tube
-
Slotted Textile Ceramic for Wire Guiding
-
Textile Machinery Alumina Ceramic Thread Guide
-
Refractory Application and Ceramic Rods Type Alumina Insulating Pin and Rod
-
Corrosion and Wear Resistance 99.5%/99.7% Alumina Ceramic Rod
Product Details
| Place of Origin | Henan, China | Brand Name | jk | |
| Model Number | ATC-30 | Use | Textile Finishing Machinery | |
| Type | Guide Wire |
Product Description

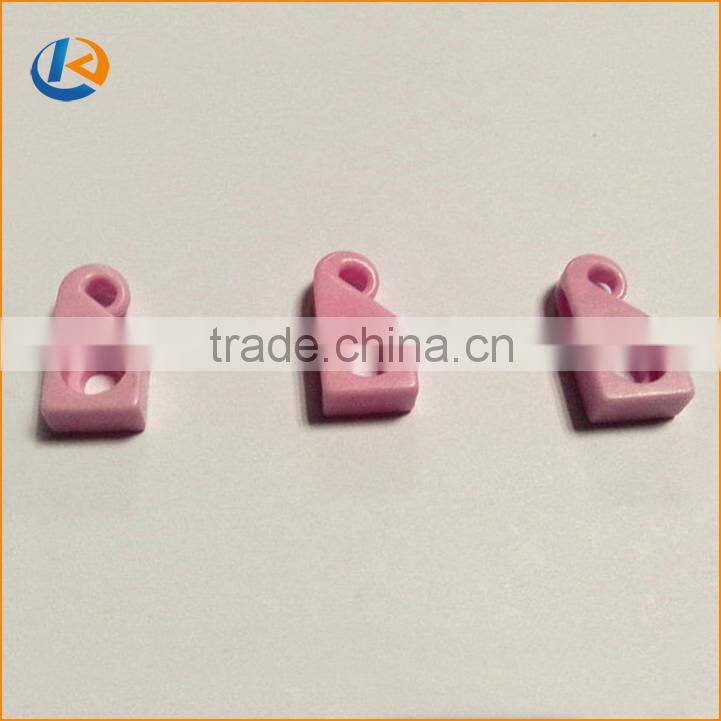

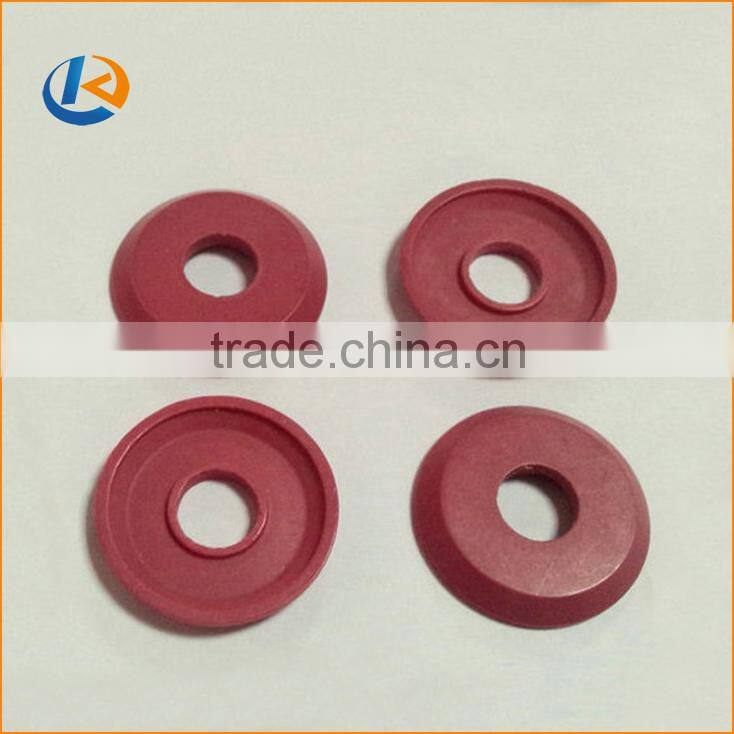

Cheap Textile parts alumina ceramic textile eyelet
1. Intro of CeramicTextile Eyelet
Ceramic textile eyelet is the content of 95% or 99% alumina as raw material, made by high temperature of 1600 ° C for sintering. Alumina textile ceramic with superior strength, hardness, insulation, thermal conductivity, high temperature, oxidation resistance, corrosion resistance, abrasion resistance, high temperature strength and other characteristics, it has been widely used in engineering, mechanical seals, electronics, instrumentation, sensing, transport, communications, and other occasions or areas.
2. Ceramic Textile Eyelet Material Parameters:
Item | Test Condition | Unit Symbol | 95%Alumina ceramics | 99%Alumina ceramics | 99.7%Alumina ceramics |
The main chemical ingredient |
|
| Al2O3 | Al2O3 | Al2O3 |
Bulk Density |
| g/cm3 | 3.6 | 3.89 | 3.96 |
Maximum Use Temperature |
|
| 1450°C | 1600°C | 1650°C |
Water absorption |
| % | 0 | 0 | 0 |
ROHS Hardness |
|
| ≥85 | ≥89 | ≥89 |
20° C | MPa (psi x 103) | 358 (52) | 550 | 550 | |
20° C | MPa (psi x 103) | 2068 (300) | 2600(377) | 2600(377) | |
Fracture Toughness | K(I c) | Mpa m1/2 | 4-5 | 5.6 | 6 |
Coefficient of thermal expansion | 25-1000° C | 1X 10-6/°C | 7.6 | 7.9 | 8.2 |
Coefficient of thermal conductivity | 20° C | W/m °K | 16 | 30.0 | 30.4 |
Tc | °C | 250 | 200 | 200 | |
Dielectricity constant | 1MHz.25°C |
| 9 | 9.7 | 9.7 |
Dielectric strength |
| ac-kV/mm (ac V/mil) | 8.3 (210) | 8.7 (220) | 8.7 (220) |
Volume Resistivity | 100°C | ohm-cm | > 1013 | > 1014 | > 1014 |
3. Company In formation:
Our factory focus on the production of ceramic textile eyelet, the products are widely used in textile, chemical fiber, cotton, linen and wool textile.Mainly for the double twisting machine, spinning machine, the sword stand, the whole computed.in machine, weaving machine, water jet loom, drawing machine, draw texturing machine and mark of west Germany, Japan murata, textile and other supporting all kinds of textile machinery. Factory for more than 20 years, stable product quality, variety specification is complete.At present has reached more than 3000 kinds of porcelain, and according to market demand constantly develop new products.Users across the country and the United States, Indonesia, Taiwan and other regions.I plant strong technical force, advanced equipment, technology.Special products can be customized according to user requirements design,.The time of delivery within seven to ten days.
4. If you have requirements of our ceramic textile products, please send us following:
1. Your sketch or pictures;
2. Your application and technical requirements;
Quantity

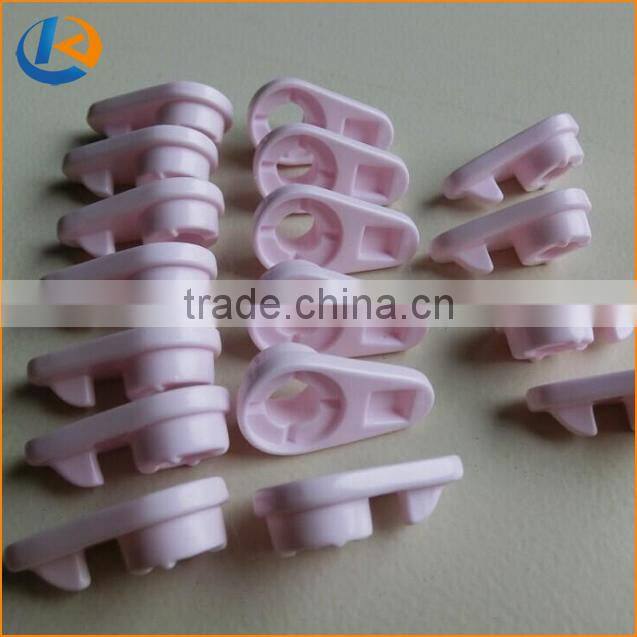

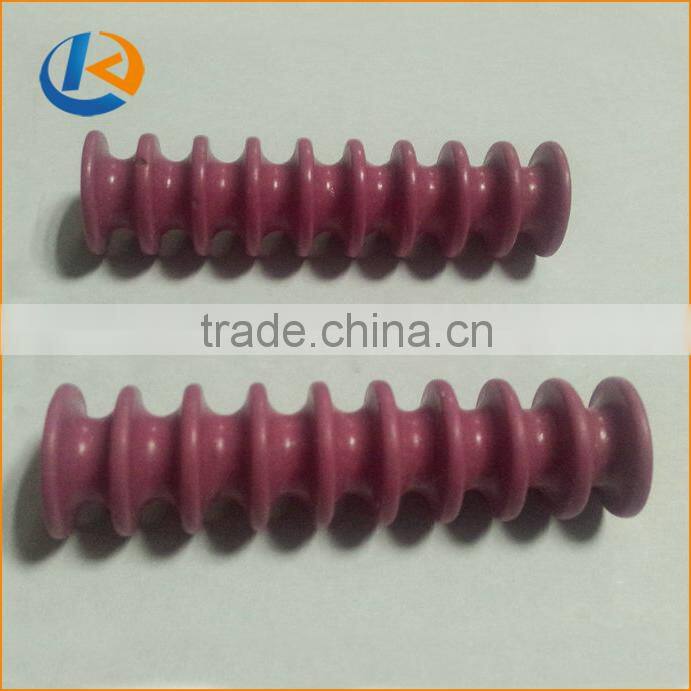

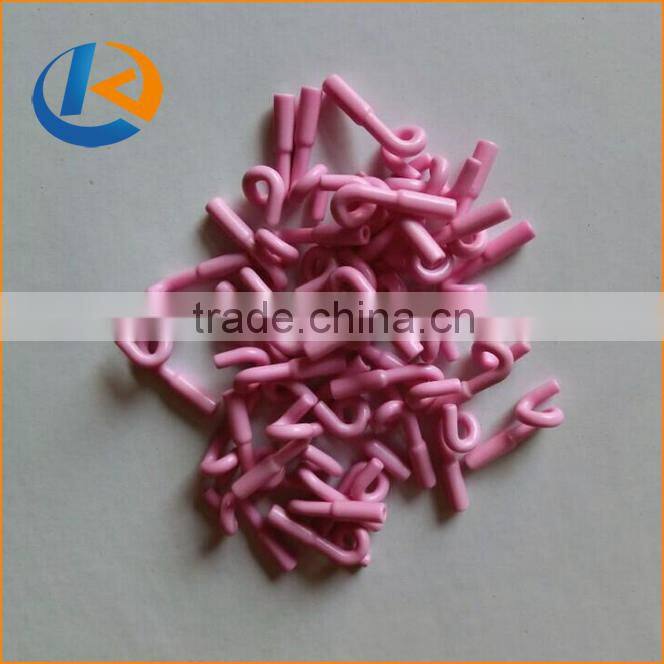

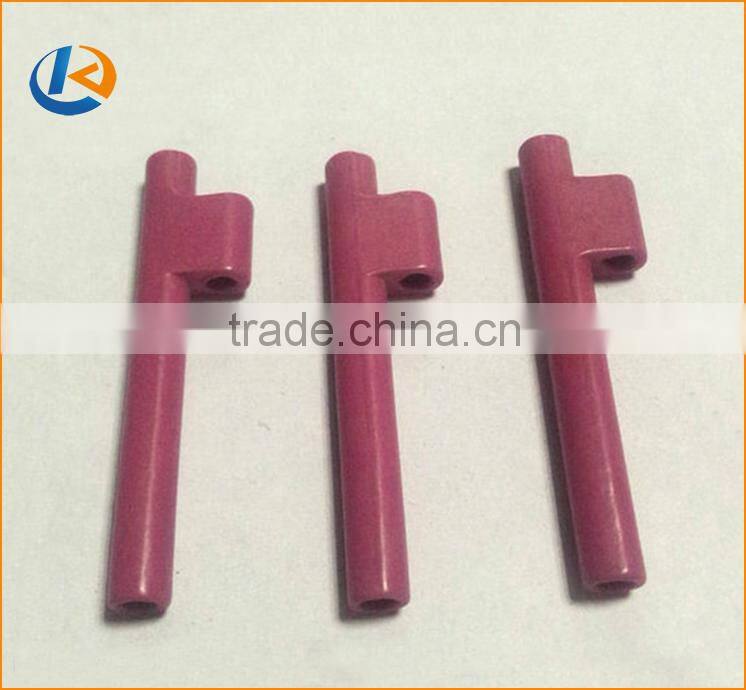

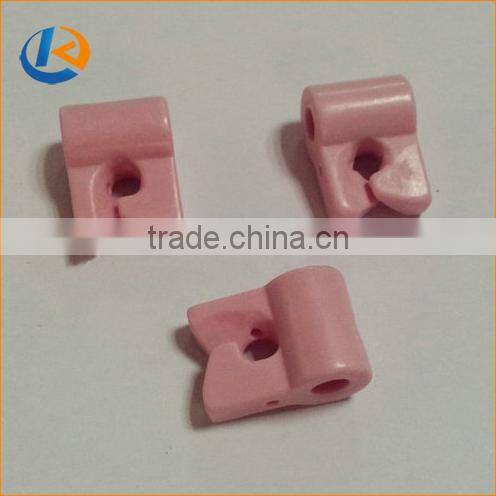

5. Some Typies of Our CearmicTextile Eyelet:
