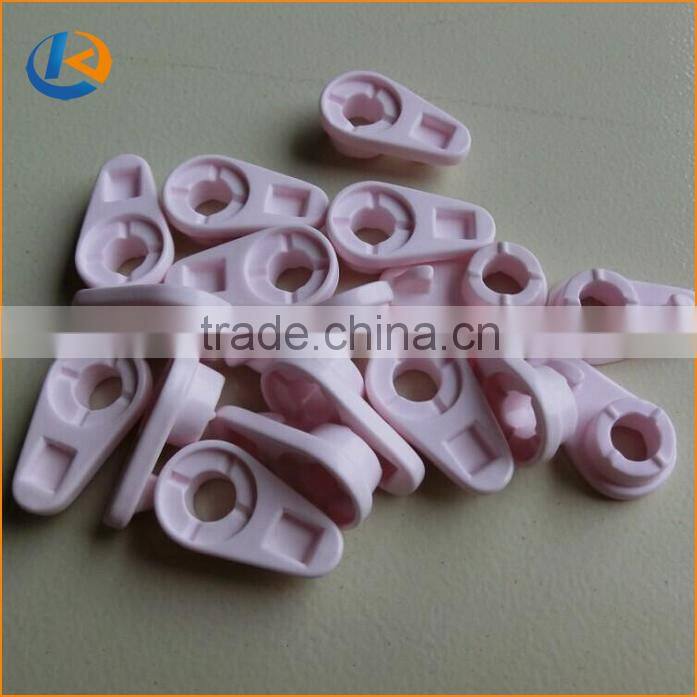

alumina textile ceramics, Ceramic thread guide

FOB Price

US$ 0.89 - 15.21 / Piece

100 Pieces(Min. Order)

Port Shanghai Qingdao Guangzhou Nanjing Shenzhen etc
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Type	Ceramic Parts
Application	Industrial Ceramic
Model Number	ATC-13	Brand Name	JK

Product Description

alumina textile ceramics, Ceramic thread guide

Product Description

Features of Ceramic Thread Guide:

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products, electric heating products and wear resistant machinery parts.

Parameter of Ceramic Thread Guide:

Performance For Industrial Ceramic
Item			Unit	90 Al2O3	95 Al2O3	99.7 Al2O3
Physical Characteristics	Heat resistance		0C	1500	1550	1800
	Bulk density		g/cm3	3.6	3.6	3.9
	Water absorption		%	0	0	0
Mechanical Characteristics	Flexural strength		Mpa	320	340	360
	Hardness vickers		Gpa	12.2	13.5	15.6
	Elastic modulus		Gpa	280	320	370
	Poisson’s ratio			0.22	0.23	0.23
Thermal Characteristics	Linear expansion coefficient		(20-5000C) 10-6/0C	7.1	7.2	8
	Thermal conductivity		w/(m.k)	16	24	32
	Specific Heat		10-3J/(kgK)	0.78	0.78	0.9
Electrical Characteristics	Dielectric constant (1MHZ)		-	9	9.4	9.9
	Dielectric loss angle		*10-4	15	5	1
	Dielectric strength		*106V/m	12	15	15
Processing technology
Process range (mm)
Outside Diameter		1---300
Inside Diameter		0.5---300
Length		0.5---1200
Accuracy of working (mm)
Perpendicularity		0.01
Concentricity		0.01
Roundness		0.005
Straightness		0.005
Parallelism		0.01
Planeness		0.005
Roughness		0.05
Fit clearance		0.005

all typies

Packaging & Shipping

(1) Packing: standard export packing , wooden case , cartoon case, It will be protect the products well.

(2) Shipping: Fast delivery, in general, it needs 5-15days after payment, and multiple transportation

methodsfor yourchoose, by sea/air/express/by the seller's shipping agaent are OK.

--By DHL/Fedex (Door to door, Home delivery service)

--By Air to your nearest Airport

--By Sea to your nearest Seaport

--By the sellers’ shipping agent
