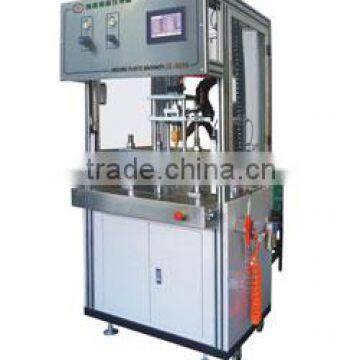

Cheap Low Pressure Plastic Injection Moulding

FOB Price

USD $8,800 - $9,500 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port shenzhen or negotiated
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	JXC	Model Number	JX-900H
Voltage	200-240V 50/60Hz	Power(W)	4.5KW
Weight	420kg	Dimension(LWH)	9408401865mm
Certification	CE ISO9001 ROHS	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Single station top type plastic injection system. For a variety of injection molding encapsulation product design models, especially for parallel continuous wire outlet mold design more reasonable and reliable.

Desktop and sol system uses split layout, flexible use.

Glue gun is directly connected with sol cylinder by a hose ; compact structure, stable plastic injection.

Mold using gas-liquid pressurized cylinder, Mold clamping force is greater,for plastic injection area is large, a large quantity of plastic injection products of mass production.

Injection pressure adjustable, DELTA temperature control module, the precise monitoring of temperature condition. Locking and security grating two-hand switch, emergency stop switch, to ensure safe operation.

SPECIFICATION
Clamping Force		Max.10 Tons
Clamping Stroke		150mm
Standard Mold Set Size		230×120×150mm （25Kg）
Max.Mold Set Size		300x200x150mm
Max. Part Size		100×90×18mm

Detailed Images

Features.

1) Multi-language PLC control system with LCD touch-screen display and man-machine interface.

2) Injection pressure adjustable, DELTA temperature control module, accurately monitors the temperature conditions.

3) Injection pressure adjustable, temperature conditions controllable.

4) Safe in operation with hands switch clamping, safety grating and emergency stop switch, easy to replace molds, convenient to extract products with inbuilt ejection device in workbench.

5) Intergral design, saving plant room.

Package & Delivery

1) Wooden box with protect film to avoid damages in loading;

2) Shenzhen port, particularly near the manufacturing site;
3) Delivery time: 15-30 days after payment confirmed.

Our Service

Pre-sales
1) Quick responce to inquiry within 12 hours. Inquiry and consulting support. All will be replied in 12 hours.
2) Ideal solution can be offered in accordance with your particular needs.

3) Visit to our Factory is welcomed and try the machine on site or in person.

After-Sales
1) Training can be offered for both installation and use of the machine.
2) Engineers available to service machinery overseas.
3) One year guarantee ( free maintaince in a year since out put date).
4) Consumalbe spare parts and other accessories can be provided with the machine.

Our Company

We have been focusing on automation solution for lithium ion battery manufacturing and 18650/26650 battery power pack manufacturing since 2010. We have already established our own R&D department, workshop, technical support, markeiting team. Passed CE certificate, ISO9001/ISO14001 approved.
