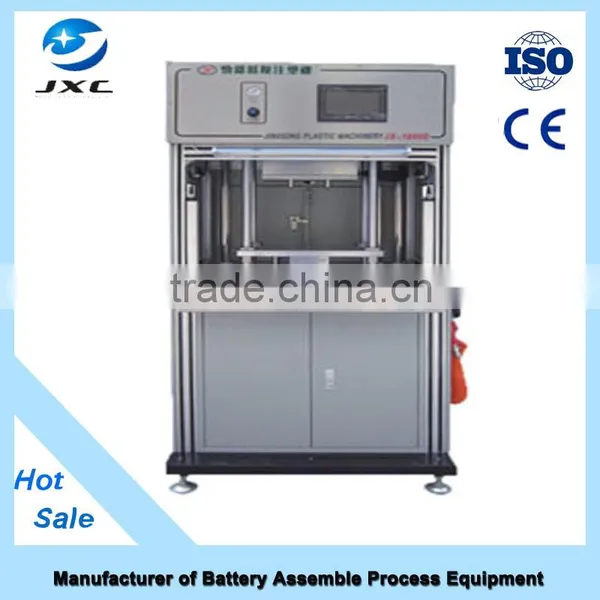

JX-1600D /Cheap Price injection Plastic Molding Machine Battery pack production
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
JX-1800 Engineers available to service machinery overseas After-sales Plastic Injection Molding Machine Price
-
JX-525 / Desktop Low Pressure Side Type Integrated Machine What is Injection Moulding Machine
-
JX-2200 / Side Duplex Split Plastic Moulding Machine JX-2200
-
Low pressure molding machine Vertical lntegrated low pressure molding equipment low molding
-
Injection molding machine over mold injection molding machine over mold injection molding equipment
-
LPMS low pressure molding Injection molding machine over mold injection molding machine over mold injection molding equipment
Product Details
| Condition | New | Type | Injection Blow Molding | |
| Style | Vertical | Brand Name | JXC | |
| Model Number | JX-1600D | Place of Origin | China | |
| Plastic Type | Other, Low pressure hot melt adhesive(electronic special) | Automatic | Yes | |
| Injection Weight | 80-150g/mit | Clamping Force | Max 1.2Ton | |
| Opening Stroke | 125mm or 150mm option | Power(W) | 4500w | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JX-1600D /Cheap Price injection Plastic Molding Machine Battery Pack Production has been successfully applied to application,automobile,electronics,marine,medical treatment,military,aerospace and telecommunication etc.High-performance and friendly hot-melt glue can be duty-cycle operation,of which meet the requirement of RoHs,and the anti-combustion reach the standard of UL94V0.
[Features]
1, single station Side dispensing system. For various dispensing encapsulation product design models, especially for more complex multi-cavity mold design with slide mechanism gives a much greater application space.
2, a single system with the table to separate the sol One design approach to the use of different plastic materials, rubber cylinder provides an easy replacement of convenience.
3, plastic pump with plastic tank integrated devices. Compact structure, stable performance.

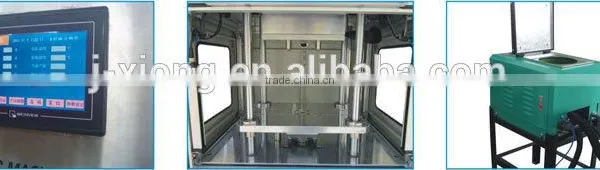

4, computer touch-screen display, real-time monitoring analog display human-machine control system.
5, plastic injection pressure adjustable, DELTA temperature control module, precise monitoring of temperature conditions.
6, with a mechanical ejector ejector systems and pneumatic control systems.
7, clamping his hands and safety grating switch, emergency stop switch, to ensure safe operation.
[Specifications]
Plastic machinery | JX-1600 |
Size(mm)Machine(kg) | 945x960x1640 (330kg) |
WorkStation Height(mm) | 840 |
Plant View(mm) | About 1700x1000 |
Packing(mm)Size(kg) | 960x970x1700(380kg) |
Melting Tank | (5Liter)×1 |
Gun & Tip Angle | (36.4°60°.90°)optional |
Heated Hose | JX-ZH-12-C×1 |
Electricity | 200-240VAC/1Phase/50 or 60Hz |
Temperature Control Zones | 3 |
Max.Power(Kw) | 4.5 |
Working pressure(Mpa) | 0.5(Mpa)~0.8(Mpa) |
Air Consumption | 0.1m3/min |
Clamping Device | Pneumatic |
Clamping Force | Max.1.2Ton |
Clamping Stroke(mm) | 125mm or 150mm optional |
Control System | touch screen |
Standard Mold Set Size(mm) | 230×120×150 (25kg) |
Max.Mold Set Size(mm) | 300×200×150 |
Max. Part Size(mm) | 60×50×18 |
We Are Guaranteed,
All for our products have passed ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet ROHS,CE standard. Meanwhile, we guarantee after sold in 1 year, we will send the new products for natural damage.
Delivery Time: 10--45 days.
