Provide Tailings Magnetic Reclaimer
- Qingdao;Tianjin;Shanghai
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Magnetic Separator | |
| Place of Origin | Henan, China | Brand Name | HC | |
| Model Number | CWS Series | Warranty | 1 year |
Product Description
Specifications
Magnetic Reclaimer1.Saving natural resources.
2.Made in good material
3.20 years of experience

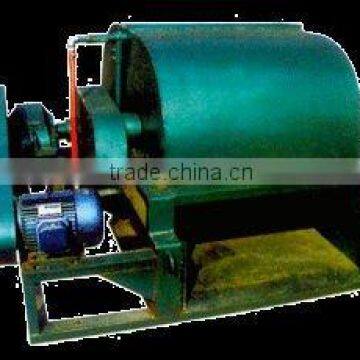

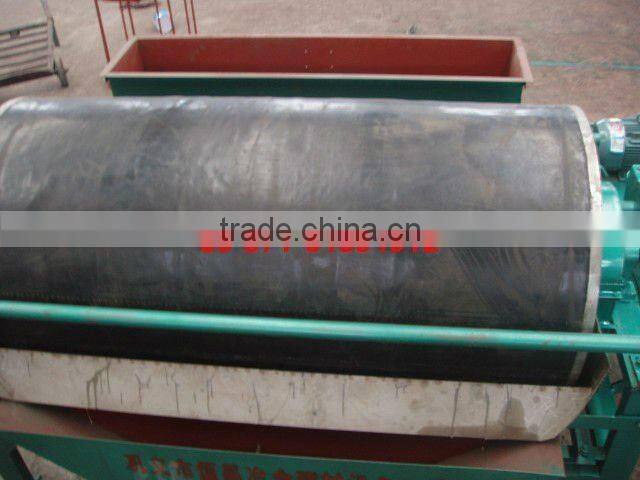

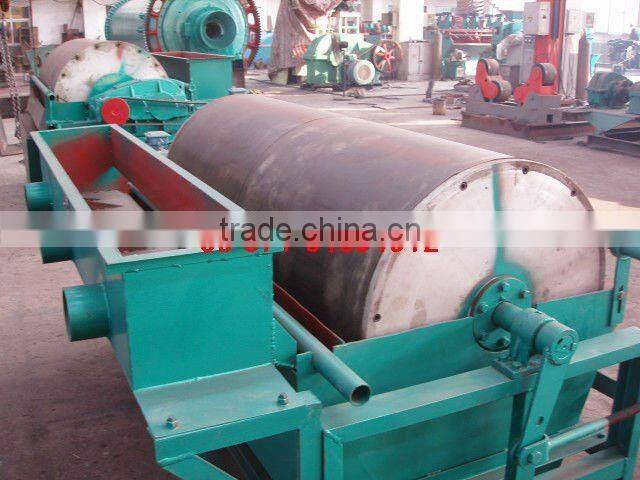

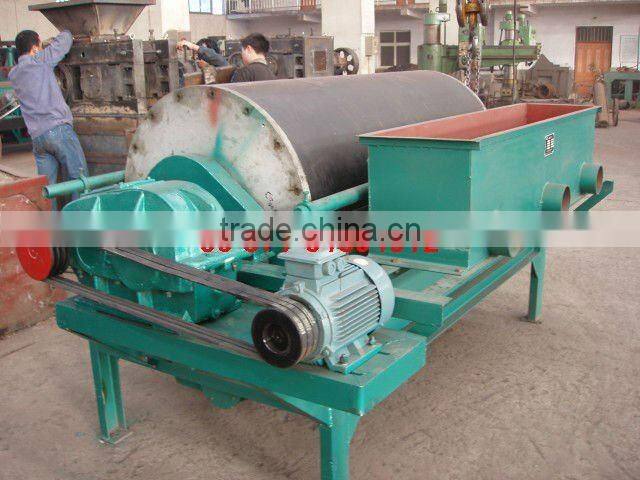

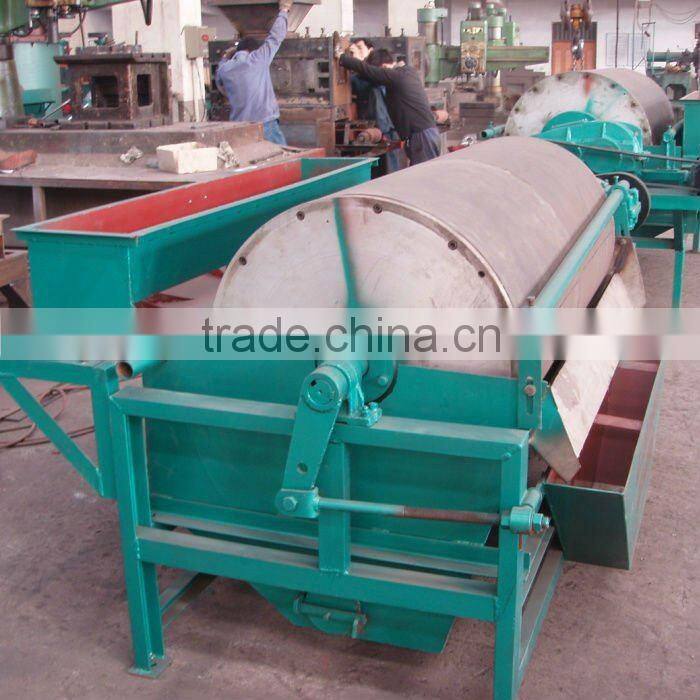

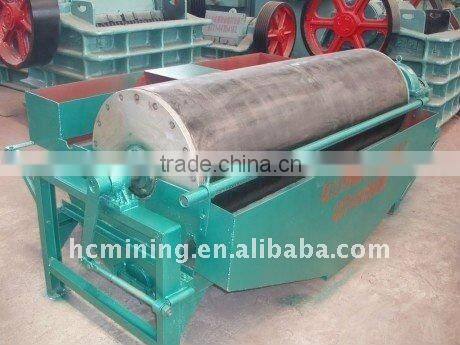

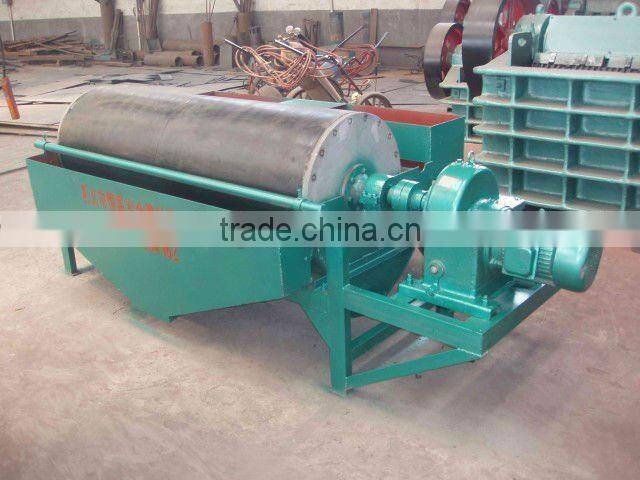

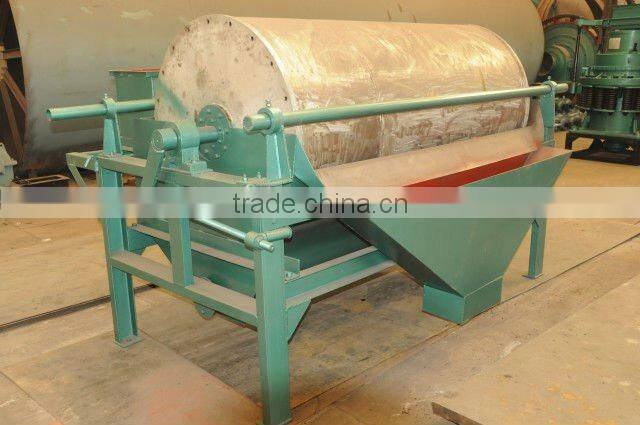

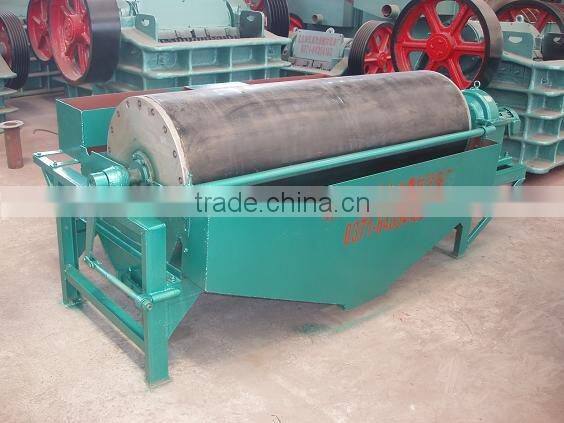

Provide Tailings Magnetic Reclaimer
Magnetic reclaimer introduction
The disk permanent magnetic tailings reclaimer is usually installed in the gangue launder. When the
tailings flow through the reclaimer, magnetic iron in the tailings can fully touch the magnetic pole of the reclaimer, so the machine can fully recycle
the tailings, lower tailings grade of 1% and improve recycle rate of mineral separation.
This machine is widely used for collecting iron ore concentrate directly from tailings in magnetic separation plant, fish scale from dumped water in steel rolling mill. It can reduce the cost, improve recycling rate, and save resource, etc. and features of high recovery rate, small volume, large capacity and remarkable economic benefit, etc.
The machine is used to recycle plentiful and useful ferromagnetic materials in the tailings and can save water.
Magnetic reclaimer technical parameter
Model | Magnetic Pole Size(mm) |
Magnetic Pole Quantity(set) | Surface Srength(mt) |
Speed(r/min) |
Power (kw) | Capacity(m3/h) | Weight (kg) |
CWS-8004 | Φ800 | 4 | 150 | 1 | 2.2 | 50-100 | 720 |
CWS-8006 | Φ800 | 6 | 150 | 1 | 3 | 80-150 | 960 |
CWS-8008 | Φ800 | 8 | 150 | 1 | 4 | 100-200 | 1200 |
CWS-1008 | Φ1000 | 8 | 150 | 1 | 5.5 | 200-300 | 1900 |
CWS-1208 | Φ1200 | 8 | 150 | 1 | 5.5 | 300-500 | 2000 |
CWS-1210 | Φ1200 | 10 | 150 | 1 | 5.5 | 500-700 | 2300 |
CWS-1508 | Φ1500 | 8 | 150 | 1 | 5.5 | 600-800 | 2400 |
CWS-1510 | Φ1500 | 10 | 150 | 1 | 5.5 | 700-1000 | 2800 |
CWS-1512 |
