Stainless steel spiral chute separator for sale
Description:

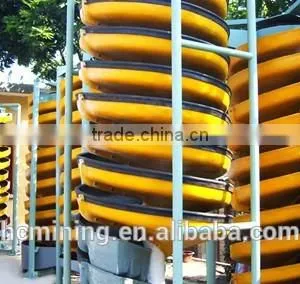

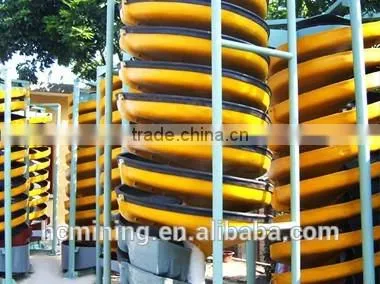

Spiral Separator is a new equipment represents the domestic advanced level, successfully invented
by Beijing General Research Institute of Mining and Metallurgy.Spiral separators are made of high
quality polyurethane with fiberglass banking and wearable corundum inner surface. Generally there
are 5 turns in one start and four starts in one column. They can be used for mineral particle sized
from 0.02 to 0.3 mm,with processing capacity from 2 to 4 t/h per column. 4 or 6 columns can be

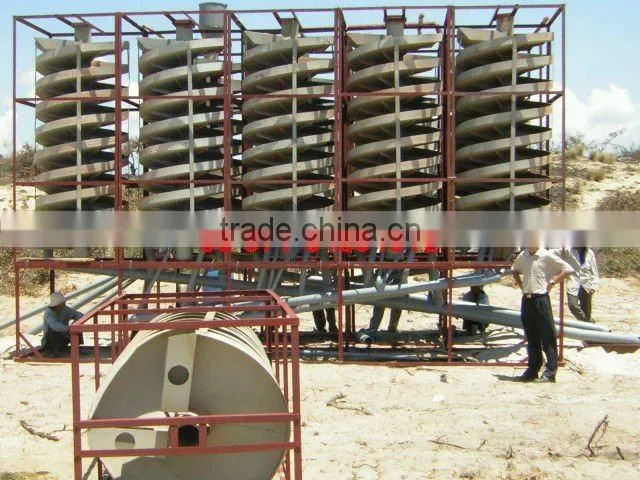

joined to form a bank with distributor on the top to suit capacity requirements.
The advantages are small footprint, without power, moisture proof, anti-rust, wear proof, anti-
corrosion and no noise, properly suitable for the different feeding particle sizes. It is especially for
concentrating sand ore in beach, riverside, seashore and stream.
Features:
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
Technical Parameters:
Model |
LL-2000 |
LL-1500 |
LL-1200 |
LL-900 |
LL-600 |
Diameter(mm) |
2000 |
1500 |
1200 |
900 |
600 |
Pitch(mm) |
1200/1500 |
540/720 |
540/720/900 |
405/540/675 |
270/360/450 |
Pitch Ratio |
0.6/0.75 |
0.45/0.6 /0.75 |
0.45/0.6 /0.75 |
0.45/0.6 /0.75 |
0.45/0.6 /0.75 |
Slope(°) |
9 |
9 |
9 |
9 |
9 |
Head |
4 |
4 |
4 |
4 |
3 |
Input Size(mm) |
0.04-2 |
0.02-2 |
0.03-0.3 |
0.03-0.3 |
0.02-0.2 |
Input Thickness(%) |
25-55 |
25-55 |
25-55 |
25-55 |
25-55 |
Capacity(t/h) |
12-30 |
6-12 |
4-6 |
2-3 |
0.8-12 |
|
Dimension (mm) |
2100×2100 ×5600 |
1580×1580 ×5230 |
1360×1360 ×5230 |
1100×1100 ×4000 |
700×700 ×2600 |
Weight(kg) |
2000 |
1100 |
600 |
400 |
150 |
1) Pre-sale service:Freely provide project designing, process designing, select suitable equipment for you.
2) Order execution service: Provide equipment layout draw, foundation draw and detail equipment manauls. Timely report you the manufacturing schedule and related photos for keep monitoring.
3) After-sales service: Dispatch engineer to the site to guide installation, debugging and training operators. Installation and operation workers are offered if you need.
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, sand and stone crushing equipments, Briquetting equipments, coal preparation equipments, drying and calcine equipments, cement plant equipments and compound fertilizer equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
If you want to know more details, please contact me!!
