wet magnetic separator machinery for calcined ore
- 1 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Magnetic Separator | Production Capacity: | refers to catalogue |
Place of Origin: | Henan, China | Brand Name: | hengchang | Model Number: | CTB |
Voltage: | refers to catalogue | Power(W): | refers to catalogue | Dimension(L*W*H): | refers to catalogue |
Weight: | refers to catalogue | Certification: | ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

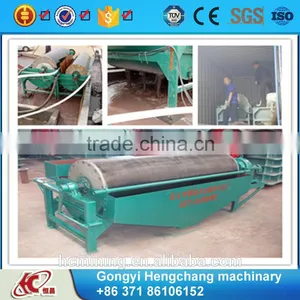

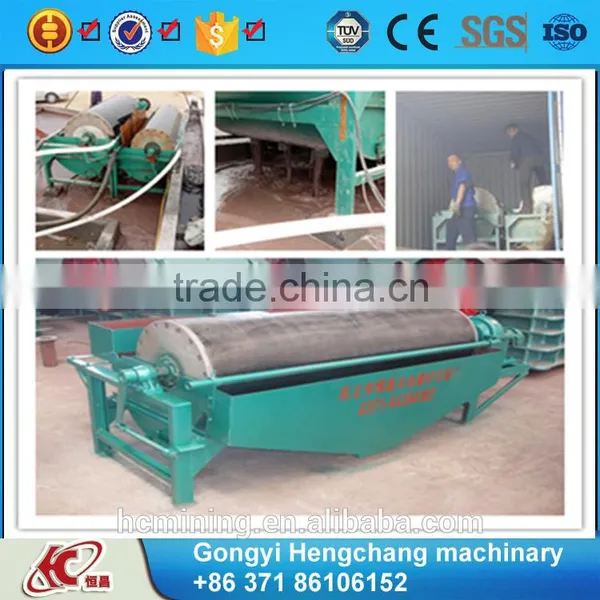

wet magnetic separator machinery for calcined ore
Description of Wet Magnetic Seperator:
The wet magnetic separator in our factory applies to the strong magnetic minerals with the particle size of less than 3mm, such as the magnetites , calcined ore, ilmenite ore, etc. In addition, it is also widely used for iron removal operation in coal, non-ferrous metal and building material industry. Our factory can supply different magnetic force grade seperator in the form of downstream, semi-counter current, counter current. It owns the features of simple structure, large capacity, easy operation and maintenance, etc.
Working principle of Wet Magnetic separator :
When the raw materials flow into the tank body of the magnetic separator firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back is the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall in the ore concentrate box under the effect of gravity. the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe as tailings.
Technical Parameters
Model | Magnetic Strength (mT) | Input Size (mm) | Cylinder Speed (r/min) | Power (kw) | Capacity | Weight (kg) | |
Ore (t/h) | Slurry(m3/h) | ||||||
CTB600x900 | ≥120 | ≤1 | 40 | 1.1 | 8-15 | 24 | 850 |
CTB600×1200 | ≥120 | ≤1 | 40 | 1.5 | 10-20 | 32 | 1000 |
CTB600×1800 | ≥120 | ≤1 | 40 | 2.2 | 15-30 | 48 | 1300 |
CTB750×1200 | ≥120 | ≤1 | 35 | 2.2 | 15-30 | 48 | 1500 |
CTB750×1800 | ≥120 | ≤1 | 35 | 3.0 | 20-45 | 72 | 1800 |
CTB900×1800 | ≥135 | ≤1 | 28 | 4.0 | 25-55 | 90 | 2400 |
CTB900×2100 | ≥135 | ≤1 | 28 | 4.0 | 30-65 | 100 | 2650 |
CTB1050×1800 | ≥145 | ≤1 | 22 | 5.5 | 35-70 | 110 | 3800 |
CTB1050×2100 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4150 |
CTB1050×2400 | ≥145 | ≤1 | 22 | 5.5 | 45-88 | 140 | 4500 |
CTB1200×2100 | ≥145 | ≤1 | 19 | 7.5 | 62-110 | 160 | 5800 |
CTB1200×2400 | ≥145 | ≤1 | 19 | 7.5 | 82-120 | 192 | 6200 |
CTB1200×3000 | ≥145 | ≤1 | 19 | 7.5 | 80-150 | 240 | 6800 |
CTB1500×3000 | ≥145 | ≤1 | 14 | 11 | 90-170 | 270 | 8200 |
CTB1500×4000 | ≥145 | ≤1 | 14 | 11 | 115-220 | 350 | 9000 |
Benefit of Wet MagneticSeperator :
1)Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4) low energy consumption
5) fine beneficiating results
6)simple structure and easy to maintain.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised
Company Information
Gongyi Hengchang Metallurgy Building Material EquipmentsPlant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materia, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

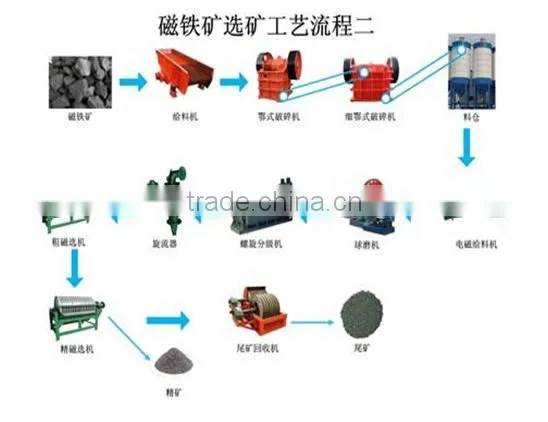

Q: Do you provide mineral processing flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
If you are interested in our products or need more detail information, please don't hesitate to contact us.
