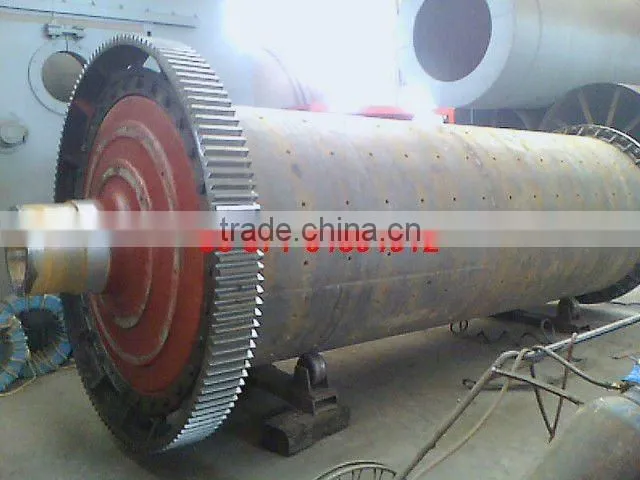

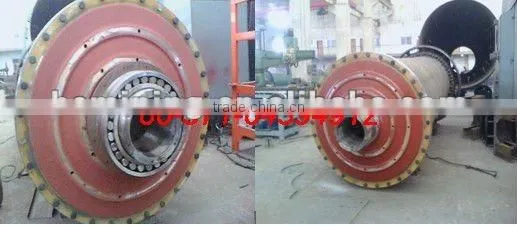

Ball mill specification
Ball mill specification introduction:
Ball mill specification is an efficient tool for grinding many materials into fine powder. Ball mill specification is used to grind many kinds of mine and other materials, or to select the mine. Ball mill specification is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. Ball mill specification can be divided into tabular type and flowing type according to different forms of discharging material.
Ball mill specification working principle:
This ball mill specification is horizontal type and tubular running device, has two warehouses. This ball mill specification is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard...
Ball mill specification technical parameter:
Model |
Barrel |
Speed |
Capacity |
Feed size |
Output size |
Output |
Motor |
weight |
||
Dia. |
Length |
Type |
Power |
|||||||
YMQG900×1800 |
900 |
1800 |
38 |
1.8 |
0-25 |
0.075-0.6 |
0.44-2.4 |
Y180L-6 |
15 |
4.2 |
YMQG900×3000 |
900 |
3000 |
38 |
2.5 |
0-25 |
0.075-0.6 |
0.7-2.9 |
Y180L-6 |
18.5 |
5.4 |
YMQG1200×2400 |
1200 |
2400 |
37 |
4.8 |
0-25 |
0.075-0.6 |
0.4-5.8 |
Y225M-6 |
30 |
8.2 |
YMQG1200×4500 |
1200 |
4500 |
37 |
5.2 |
0-25 |
0.075-0.6 |
1.4-5 |
Y280M-6 |
55 |
11 |
YMQG1500×3000 |
1500 |
3000 |
29 |
10 |
0-25 |
0.075-0.4 |
2.8-9 |
Y315S-6 |
75 |
16.3 |
YMQG1500×5700 |
1500 |
5700 |
29 |
12 |
0-25 |
0.075-0.4 |
3.1-7 |
Y315M-6 |
90 |
20.7 |
YMQG1830×6400 |
1830 |
6400 |
23.9 |
18.5 |
0-25 |
0.075-0.4 |
6-8.5 |
JR138-8 |
210 |
35.1 |
YMQG1830×7000 |
1830 |
7000 |
23.9 |
21 |
0-25 |
0.075-0.4 |
6-7 |
JR138-8 |
245 |
38 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
