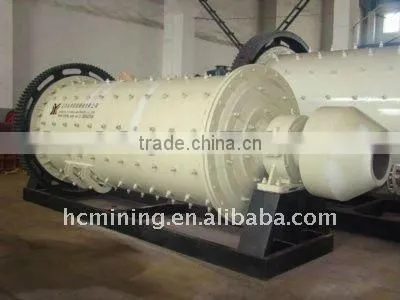

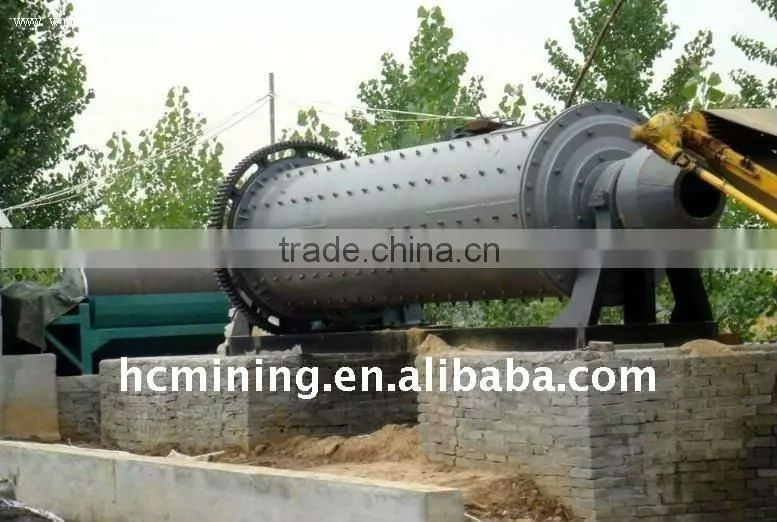

Stone grain mill
Stone grain mill introduction:
Stone grain mill is an efficient tool for grinding many materials into fine powder. Stone grain mill is used to grind many kinds of mine and other materials, or to select the mine. Stone grain mill is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. Stone grain mill can be divided into tabular type and flowing type according to different forms of discharging material.
Stone grain mill application:
This stone grain mill is a key equipment for regrinding. Stone grain mill is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
Stone grain mill working principle:
This stone grain mill is horizontal type and tubular running device, has two warehouses. This stone grain mill is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time...
Stone grain mill technical parameter:
Model |
Barrel |
Speed |
Capacity |
Feed size |
Output size |
Output |
Motor |
weight |
||
Dia. |
Length |
Type |
Power |
|||||||
YMQG900×1800 |
900 |
1800 |
38 |
1.8 |
0-25 |
0.075-0.6 |
0.44-2.4 |
Y180L-6 |
15 |
4.2 |
YMQG900×3000 |
900 |
3000 |
38 |
2.5 |
0-25 |
0.075-0.6 |
0.7-2.9 |
Y180L-6 |
18.5 |
5.4 |
YMQG1200×2400 |
1200 |
2400 |
37 |
4.8 |
0-25 |
0.075-0.6 |
0.4-5.8 |
Y225M-6 |
30 |
8.2 |
YMQG1200×4500 |
1200 |
4500 |
37 |
5.2 |
0-25 |
0.075-0.6 |
1.4-5 |
Y280M-6 |
55 |
11 |
YMQG1500×3000 |
1500 |
3000 |
29 |
10 |
0-25 |
0.075-0.4 |
2.8-9 |
Y315S-6 |
75 |
16.3 |
YMQG1500×5700 |
1500 |
5700 |
29 |
12 |
0-25 |
0.075-0.4 |
3.1-7 |
Y315M-6 |
90 |
20.7 |
YMQG1830×6400 |
1830 |
6400 |
23.9 |
18.5 |
0-25 |
0.075-0.4 |
6-8.5 |
JR138-8 |
210 |
35.1 |
YMQG1830×7000 |
1830 |
7000 |
23.9 |
21 |
0-25 |
0.075-0.4 |
6-7 |
JR138-8 |
245 |
38 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
