electronic ultrasonic flaw detector

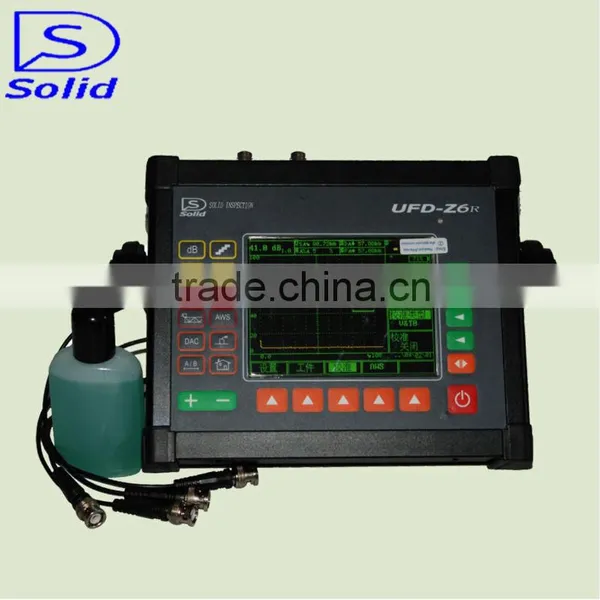

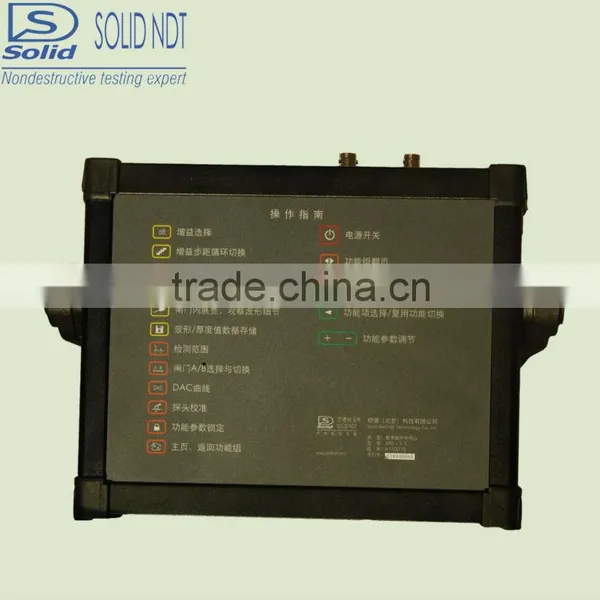

UFD Z Series Ultrasonic Flaw Detector could meet a variety of demands with superior features, which include portable, flexible, rapid and accurate.
Z Series Ultrasonic Flaw Detector is a portable detecting station for taking you in a better siuation
FUNCTION
Post Insulator, Professional Insulator Button
Post Insulator, Professional Insulator Climbing Probe
Professional insulator detector blocks
Adjustable Transmitting Pulse

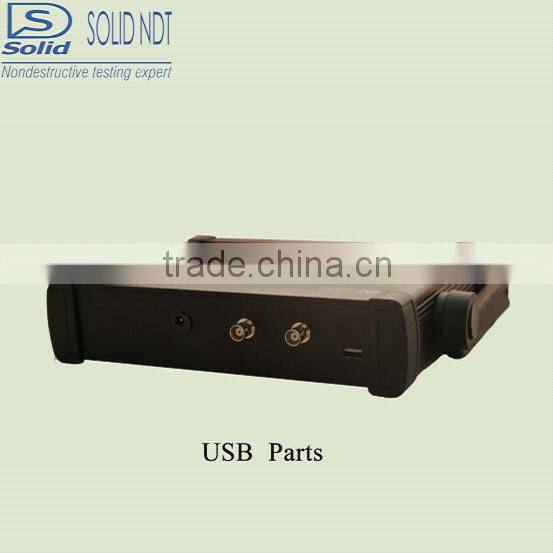

USB for Storage ,Plug and Play

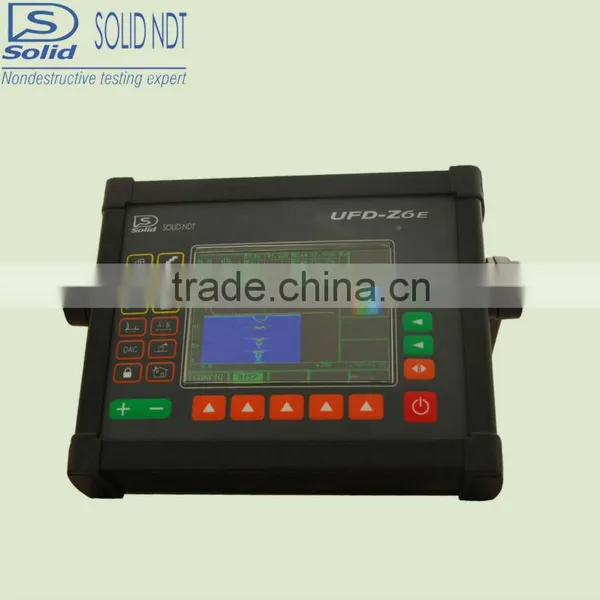

B Scan-Display Flaw Directly
Massive Data Memory
320,000 Data Group/200,000 thickness values/10 min vedio
5 intelligent DAC curves, comply to JIS and API standard.
DGS curve: Flat bottomed, Flat-bottomed Hole, Through Holes as references
PERFOMANCE
Broad & Narrow Band Amplifier, which avoid disturb better
Square Wave Pulser
High accuracy: 10 places for AD sample
Extra-long Standby Time:
20 hours, getting rid of trouble from battery
Display screen could be adjusted to provide 5 optimum
Magnalium alloy coated, AP65 encapsulation, strong and durable, avoiding electro-magnetic interference.
Measuring Range |
1.0-1,500mm |
|||
Measuring Resolution |
0.01mm(< 100mm)/ 1mm(>100mm) |
|||
Velocity |
500~20,000m/s( 20 fixed velocities) |
|||
Delay |
Display Delay: -20~3400us resolution: 0.1us |
|
Probe Delay : 0~99us resolution: 0.01us | ||
Auto Calibration |
Velocity Calibration& Probe Delay Calibration |
|
Linear Error |
Horizontal linearity error≤0.1% Vertical linearity error ≤3% |
|
Dynamic Range |
≥36dB |
|
Sensitivity Leavings |
≥64dB 200mm2 flat-bottomed hole |
|
Dimension (mm) |
240*180*50 |
|
Weight |
1.9Kg(including battery pack) |
|
Working Environment |
Temperature:-20°C~70°C, Humidity:5%~90%, |
|
Pulser |
150V Negative Pulse |
Damping :50/150/400Ω |
Negative Pulse/Square Wave |
Pluser Width:50-2000ns |
Pulse repetition frequency PRF could be adjusted | |||||||||
Receiver |
Measuring mode:Peak /Verge |
Bandwidth:0.3~1/ 0.5~4/2~15MHz Narrowband:1/2.5/5/10/15MHz |
|||||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | |||||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | |||||||||
Gain :0 to 110dB Customers define steps 0/0.1/0.2/0.5/1/2/6/12 | |||||||||
Display |
LCD |
TFT Color. Display,5 options for variable brightness. |
|||||||
GUI Theme |
Simple/Classical/Gray/Bright Light/ Dark Light |
||||||||
Screen Update Rate |
≥60 Hz |
||||||||
Gate/Measuring/ Alarm |
Gate |
Two Separated Gates A/B |
|||||||
Value Display |
5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB |
||||||||
Alarm |
Thickness Value Threshold Alarm ,Separated Gate Alarm Logically |
||||||||
Memory |
Channelparameters: 20 groups |
A Scan: 2000 groups |
|||||||
Thickness Logging: 320,000 data sets ,liner |
Wave Video: 10 min |
Reference Wave:4 |
|||||||
Input/Output |

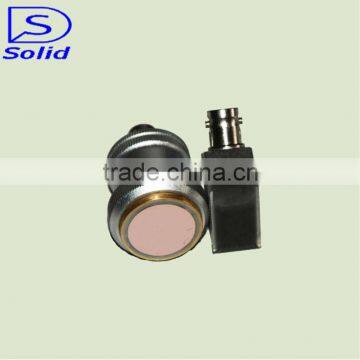

Probe Cable: LEMO/BNC |
Communication :RS232 |
|||||||
Area |
Language: Chinese /English |
Unit: mm/inch |
Clock: Date and Time |
||||||
Power Source |
Battery: High power lithium battery ,capable of preventing over-charge and over-discharge |
||||||||
Power Indicator:Proportional battery gauge indicating remaining operation time | |||||||||
Working Time: Continuous working over 10 hours | |||||||||
Power adapter: Input 100~240V/50~60Hz output 9VDC/4A | |||||||||
High Grade |
USB for Storage |
3 kinds of data report, screenshot , wave, thickness value |
|||||||
Dynamic Echo |
Digital Nature,Simulation Performance |
Gate: |
Analysis the details of the wide gate area |
B Scan: |
Thickness/ Shape scan Gray/Color board Design |
Echo Coding |
Coordinate/Waveform, Calculating Echo-Echo distance |
Freezing Curve |
All/Peak/Contrast/Envelope/Delay |
|||||
Feature Indicator |
Measuring of the sound distance wave front & amplitude |
|||||
CSC Curve Calibration |
Value correction according to probe angle, pieces thickness and curvature diameter |
|||||
Lock |
Single menu independently lock to avoid system adjust related data; Data group could lock to avoid wrong delete |
|||||
Screen saver |
Standby/Character/Power Off |
|||||
Equivalent Curve |
DAC curve |
Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard |
||||
DGS Curve |
DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage; |
|||||
